Accessories

Built to withstand the test of time, our PVC was made to resist the toughest weather conditions and chemicals.

Our PVC is a flexible, thermoplastic membrane manufactured using an ultraviolet-resistant polyvinyl chloride. PVC membranes deliver a pliable and durable sheet with excellent weathering characteristics and resistance to harsh chemicals and industrial pollutants.

Filter Products By
  • Roofing Systems
  • Filter By
Jump To
Needle-punched, non-UV resistant polyester separation layer used for TPO, PVC, and EPDM mechanically fastened systems and ballasted EPDM systems.

Use: JM 3 oz Polyester Slipsheet is intended for use as a separation layer between an existing roof system and a new single ply recover system.

Material: 3.0 oz/yd2 (102 g/m2 ) needle-punched, non UV-resistant polyester fabric.

Color: White

3oz-Polyester-Slipsheet
Available Documents

Needle-punched polyester fabric for use as a cushioning, separation or protective layer.

Use: JM Polyester Mat Protection Slipsheet is intended for use as a separation layer between extruded polystyrene insulation and roofing membrane in protected membrane (inverted) roof assemblies, as well as a separating sheet in some recover systems. It is also used as a protective layer between pavers and JM single ply membrane.

Material: 9.0 oz/yd2 (305.15 g/m2 ) needle-punched, UV-resistant polyester fabric.

Color: White

Polyester-Mat-Protection-Slipsheet-700x498
Available Documents

JM PVC membrane laminated with galvanized steel to be fabricated into metal flashings and edge details.

Use: Fabricated by the contractor into metal flashings and edge details. It is used to provide monolithic water-tight protection for both adhered and mechanically fastened roofing assemblies.

Materials: 20 mil (0.51 mm) UV-resistant PVC (polyvinyl chloride) with Elvaloy® KEE (ketone ethylene ester) membrane laminated to 24 gauge (0.6 mm) galvanized steel.

Colors: White; Grey; Sandstone; and Black

PVC-Coated-Metal-700x5261
Available Documents

JM PVC Detail Membrane is a flexible, nonreinforced thermoplastic membrane used to wrap pipes and vertical stacks.

Use: To easily form flashings around corners and penetrations. Specifically designed for use in areas that cannot be properly detailed with PVC field membrane.

Material: 75 mil (1.91 mm) thick, reversible, flexible, non-reinforced, UV-resistant PVC (polyvinyl chloride) with Elvaloy® KEE (ketone ethylene ester).

Colors:

  • White/Grey
  • Grey ES/White
  • Sandstone/White
  • Sandstone ES/White
  • White/Charcoal
PVC-Detail-Membrane-700x468
Available Documents

Flexible 8" (20.32 cm) strips of polyester-reinforced, thermoplastic membrane used primarily to waterproof JM PVC-Coated Metal joints.

Use: Primarily use to "strip-in" flashing details, gravel stops, PVC Coated Metal joints, and exposed fasteners in the roof field.

Material: 60 mil (1.52 mm) thick, reinforced, UV-resistant PVC (polyvinyl chloride) with Elvaloy® KEE (ketone ethylene ester).

Colors:

  • 6" - Black/White
  • 8" - White/Grey and Sandstone/White
PVC-Detail-Strip-700x526
Available Documents

150 mil, textured, reinforced thermoplastic membrane for use around high-traffic.

Use: Provide a safe, stable and maintenance-free walkway for quick and easy access to rooftop equipment in high traffic areas.

Materials: 150 mil (3.81 mm) thick, textured, reinforced, UV-resistant PVC (polyvinyl chloride) with Elvaloy® KEE (ketone ethylene ester).

Color: Safety Yellow

PVC-Heavy-Duty-Walkpad-700x501
Available Documents

One-piece molded unit with a square base flange used to seal uneven difficult-to-flash membrane penetrations.

Use: Unit used to seal uneven penetrations through the membrane that are difficult to flash. The penetration pan is slit on one side to allow for positioning around objects to be flashed. A welding tab is included to seal the penetration pan once installed.

• For use with JM EPDM/PVC Pourable Sealer

• Refer to JM PVC, TPO, or EPDM applicator guides or detail drawings for instructions

Material: 125 mil (3.18 mm) thick, one piece molded unit, vacuumformed and fabricated from impact-resistant rigid PVC (polyvinyl chloride).

Color: Grey

PVC-Penatration-Pan-700x534
Available Documents

Flexible, nonreinforced thermoplastic membrane used to flash vent stacks and round penetrations.

Use: A smooth, cone-shaped boot for traditional or split-pipe flashing applications to securely seal the penetration. Pipe boots eliminate the need for field fabrication.

Material: Flexible, non-reinforced, UV-resistant PVC (polyvinyl chloride) with Elvaloy® KEE (ketone ethylene ester).

Colors: White; Grey; and Sandstone

PVC-Pipe-Boot-700x467
Available Documents

Preformed, nonreinforced, extruded, heat-weldable standing seam roofing accessory used as a decorative rib.

Use: Used as a decorative rib to simulate the aesthetics of a standing seam metal roof. This accessory is for use on fully adhered JM PVC and JM PVC SD Plus roofing systems with 60 mil or greater membranes.

Materials: UV-resistant PVC (polyvinyl chloride) and an Elvaloy® KEE (ketone ethylene ester). Preformed, non-reinforced, extruded, and heat-weldable.

Colors: White; Sandstone; and Grey

PVC-Profile-700x467
Available Documents

45 mil, reinforced, UV-resistant PVC with Elvaloy* KEE safety warning line for roof perimeters.

Use: Primarily used as a safety warning line for roof perimeters.

Material: 45 mil thick, reinforced, UV-resistant PVC (polyvinyl chloride) with Elvaloy® KEE (ketone ethylene ester).

Colors: Yellow

PVC-Safety-Strip-700x523
Available Documents

Flexible, nonreinforced thermoplastic material used to cover joints, discs and fasteners in the membrane.

Use: To seal seam laps where perimeter and/or header sheets intersect (T-Joint) in PVC systems.

Material: Flexible, non-reinforced, UV-resistant PVC (polyvinyl chloride) with Elvaloy® KEE (ketone ethylene ester).

Colors: White; Grey; and Sandstone

TPO-T-Joint-Patch-700x617
Available Documents

Flexible, nonreinforced, waffle-patterned thermoplastic membrane.

Use: Designed in a waffle pattern for easy installation around any inside and outside corners.

Material: Flexible, non-reinforced, UV-resistant PVC (polyvinyl chloride) with Elvaloy® KEE (ketone ethylene ester).

Colors: White; Grey; and Sandstone

TPO-Universal-Corners-700x464
Available Documents

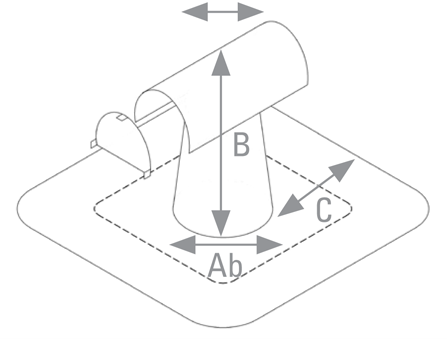

If You spec it, We will build it

Please click on the PVC custom accessory quote form link below to view and/or downlowd the submission form.

PVC-Custom-Accessories-Quote-700x531
Available Documents

Fabricated reinforced 60 MIL JM PVC, used to flash vent stacks and other round penetrations.

Use: A prefabricated, reinforced 60 mil JM PVC (KEE), round-shaped 1" to 6" (2.54 cm to 15.24 cm) split-pipe boot for flashing application. Pipe boots minimize the need for field fabrication. Custom sizes and colors are available upon request. Contact your JM representative for minimum order quantity and lead time.

Material: JM PVC 60 mil reinforced membrane containing the optimal amount of DuPont™ Elvaloy® KEE (Ketone Ethylene Ester) that is factory fabricated into a onepiece round split-pipe boot.

Color: White

PVC-Split-Pipe-Boot-700x394
Available Documents

Fabricated from reinforced 60 MIL JM PVC. Used to flash vent stacks and other square penetrations.

Use: A prefabricated, reinforced 60 mil JM PVC (KEE) square boot in 2" and 4" (5.08 cm and 10.16 cm) sizes for tube-flashing application. Pipe boots minimize the need for field fabrication. Custom sizes and colors are available upon request. Contact your JM representative for minimum order quantity and lead time.

Material: JM PVC 60 mil reinforced membrane containing the optimal amount of DuPont™ Elvaloy® KEE (Ketone Ethylene Ester) that is factory fabricated into a onepiece square split-pipe boot.

Color: White

PVC-Square-Pipe-Boot-700x561
Available Documents

Flexible, polyester-reinforced thermoplastic membrane intended for use as protection around high-traffic areas.

Use: Provides a safe, stable and maintenance-free walkway for quick and easy access to rooftop equipment in high traffic areas.

Material: 72 mil (1.83 mm) thick, textured, reinforced, UV-resistant PVC (polyvinyl chloride) with Elvaloy® KEE (ketone ethylene ester).

Color: Grey

PVC-Walkpad-2
Available Documents
