Fasteners and Plates

Family Description: JM provides a wide range of fasteners suited for nearly any application. Our expansive line of fasteners and plates also offers induction-weld solutions for TPO and PVC systems.

Products

Fastener and Plate Systems

Extra High Load Fasteners and Plates
Extra High Load #21 fasteners, #3 Phillips head and a drill point contain a corrosion-resistant coating and to be used to mechanically attach thermoplastic membranes.
High Load AccuSeam System
The High Load AccuSeam™ System is a premier automated system for mechanically attached seams. The System positions the 23⁄8" (6.03 cm), round, High Load Plate with eye hooks, and installs the High Load Fastener, up to 6" (15.24 cm) in length in a one-step, continuous process. Standard High Load Plates are not compatible with the AccuSeam™ Fastener and Plate System
High Load Fasteners and Plates
High Load Fasteners are a #15 case-hardened steel roof membrane fastener with Galvalume®*-coated steel seam plates. These fasteners can be used in a thermoplastic induction weld system with RhinoPlate®.
JM Termination Systems
JM Termination Systems include termination bars, anchor discs and masonry nail-in anchor and are used for membrane fastening systems.
Lite-Deck Fasteners and Plates
Lite-Deck Fasteners are available in lengths from 25 /8” to 12" (67 mm to 305 mm), come with a square drive and offer coarse thread to provide high pullout resistance.
Structural Concrete Deck Fasteners and Plates
The Structural Concrete Deck Fastener is a diamond point, non-threaded carbon steel insulation and membrane fastener.
UltraFast AccuTrac Fastener and Plate System
The UltraFast® AccuTrac™ Fastener and Plate System utilizes the standard UltraFast® Fastener and the UltraFast® Accutrac™, recessed or flat bottomed, square plate. The AccuTrac™ tool positions the plate and installs fasteners 15⁄8" - 6" (4.13 cm - 15.24 cm) in a one-step process. Consistent vertical alignment of fasteners ensures maximum thread engagement and pullout performance.
UltraFast Fasteners and Plates

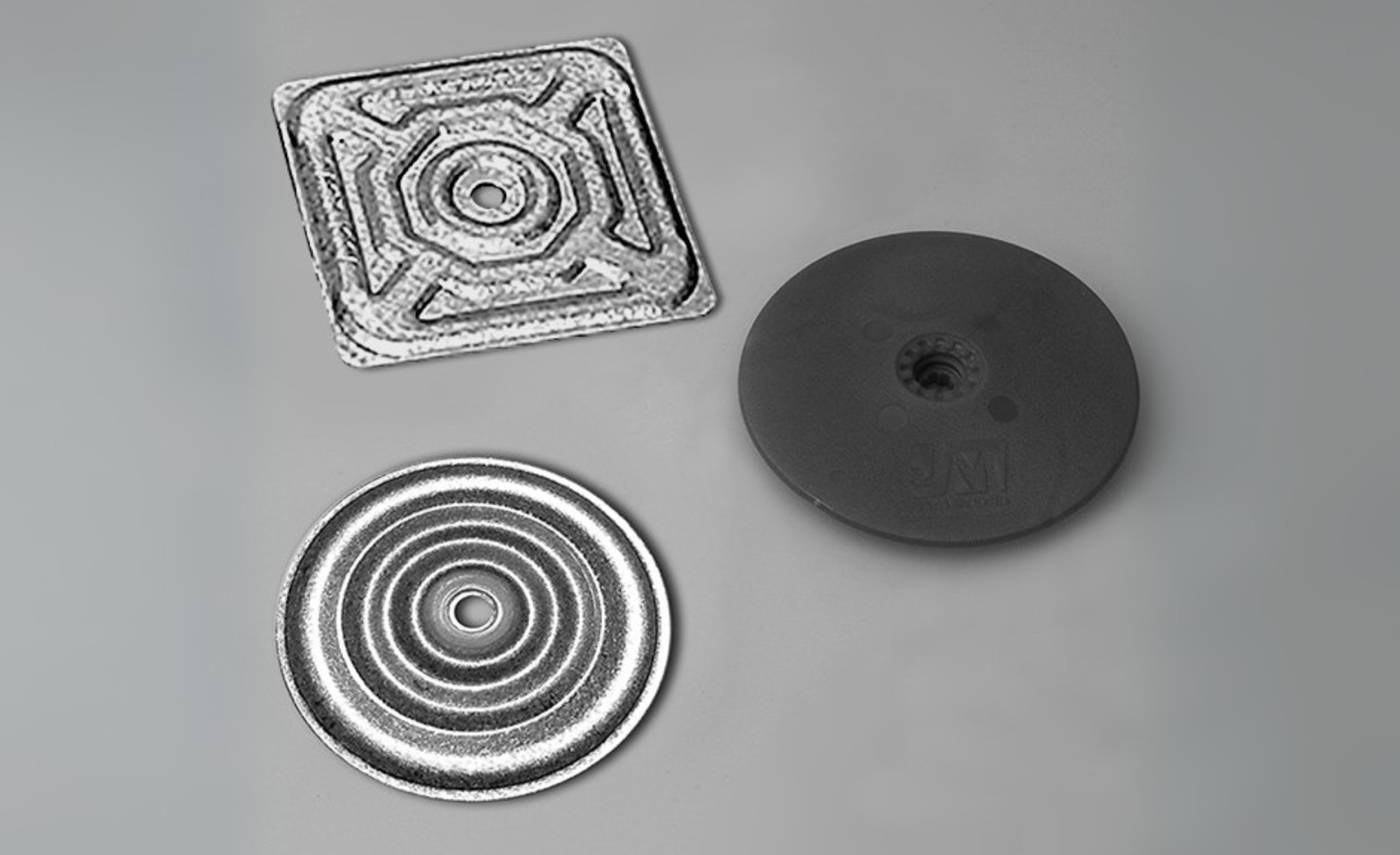

UltraFast® Fasteners and Plates are used to fasten insulation in both multi-ply and single ply systems. The UltraFast® Fastener is a #12, case-hardened steel, polymer-coated fastener with a buttress thread design that provides maximum pullout values and minimizes fastener backout. The UltraFast® Plates are either round, high strength polypropylene plates with a special locking feature or round or square, premium Galvalume®*-coated steel metal plates.

Fasteners

All Purpose Fasteners
All Purpose Fasteners are #14 case-hardened steel fasteners with a #3 Phillips head. The point is designed for quick installation in new or re-roof applications.
JM Purlin Fastener
The JM Purlin Fastener is a steel-coated fastener with a ¼" hex head and ¾" (19 mm) drill point. The drill point allows the fastener to be drilled through the purlin before the threads engage into the standing seam metal roof.
JM RetroDriller Fasteners
JM RetroDriller Fastener is designed for attaching single ply membrane systems to structural purlins (up to 3 /16”) in standing seam metal roof retrofit applications.
Lightweight Concrete (LWC) Fasteners
Lightweight Concrete (LWC) Base Sheet Fasteners are expanding base sheet fasteners with Galvalume®-coated steel plates used in multi-ply systems.
Nail-Lok SD
Nail-Lok™ SD is utilized with steel decks in several panel applications including Nailboard, Vented Nailboard, structural insulated panels (SIP), and prefabricated wall panels. The extra-large star/spider head increases pull-through resistance and eliminates the need for plates or washers.
Nail-Lok WD

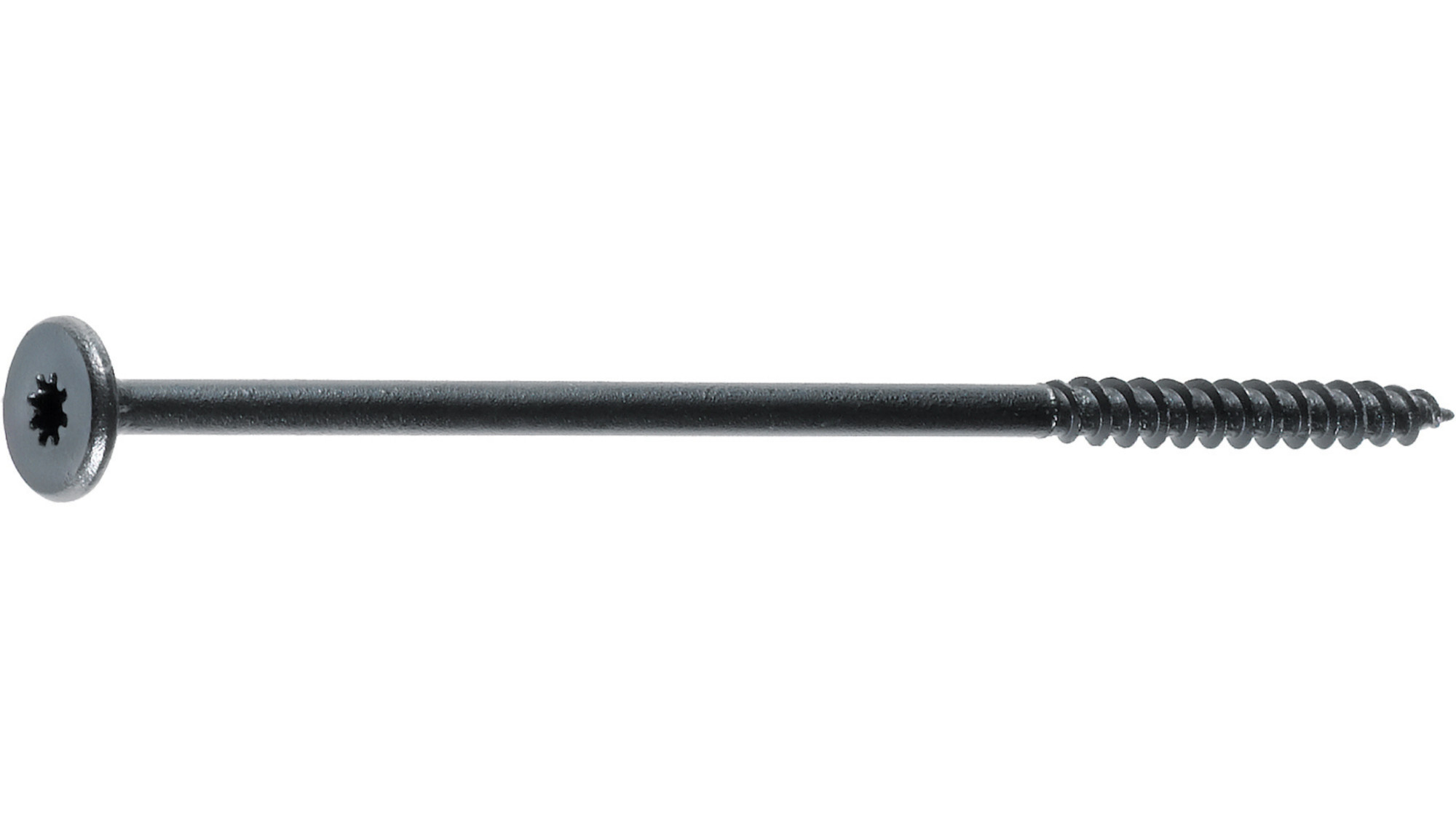

Nail-Lok™ WD is utilized with wood decks in several panel applications including Nailboard, Vented Nailboard, structural insulated panels (SIP), and prefabricated wall panels. The extra-large star/spider head increases pull-through resistance and eliminates the need for plates or washers.
Polymer Auger Fasteners
Polymer Auger Fasteners are glass-reinforced nylon fasteners with an internal ¼" (6 mm) square drive. Polymer Auger Fasteners have a 1" (2.5 cm) diameter head.
UltraLok Locking Impact Fastener and Plate
UltraLok™ Locking Impact Fasteners and Plates consist of a preassembled Galvanized steel tube, a 2.7" (6.86 cm) Galvalume®*-coated steel disc, and a precision-formed, coated- steel, high tensile, wirelocking staple. The disc is securely clamped to the tube and is rib-reinforced to resist cupping.

Plates

APB Plates
APB Plates are made of Galvalume®*-coated steel. The 2" (51 mm) round plate with barbs provides an even distribution of loads and eliminates sharp corners that can damage the insulation or membrane.
JM ENRGY Anchor
ENRGY® Anchor is a lightweight, roof-top integrated, photovoltaic (PV)-mounting solution consisting of a Galvalume®*-coated steel plate welded to a stainless steel stud, with a JM membrane flashing target. Each assembly includes a leveling washer and membrane separator.
JM PVC RhinoPlate
JM PVC RhinoPlate® is a 3" (76.2 mm) round specially coated Galvalume®* plate with a recessed center and raised flat bonding surface. The JM PVC RhinoPlate® is a roof attachment system that uses heat induction technology.

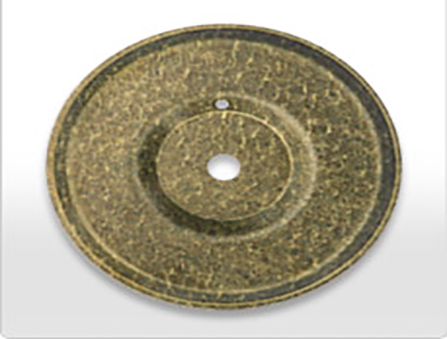

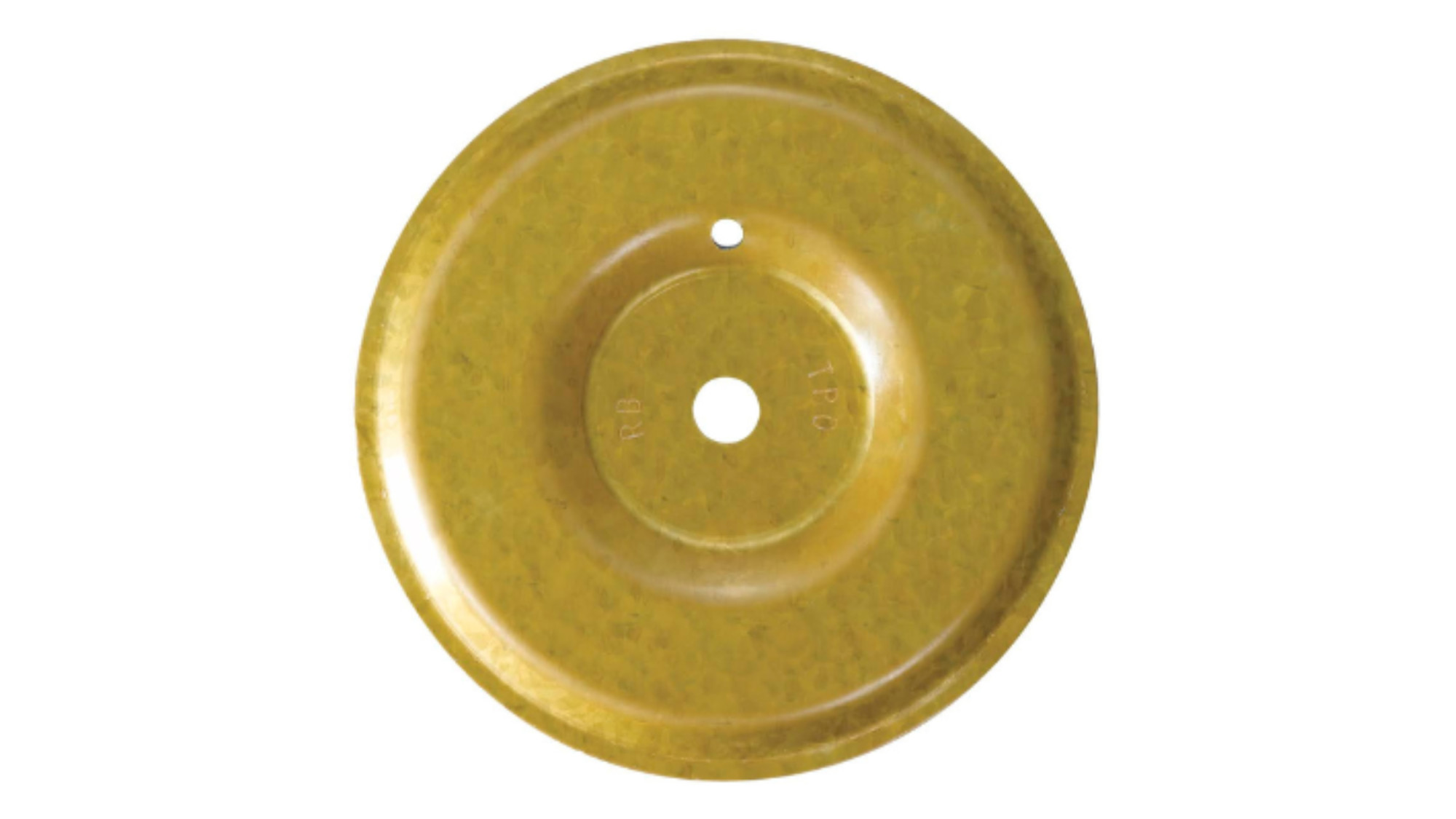

JM TPO RhinoPlate
JM TPO RhinoPlate® is a 3" (76.2 mm) round specially coated Galvalume®* plate with a recessed center and raised flat bonding surface. The JM TPO RhinoPlate® is a roof attachment system that uses heat induction technology
JM VSH Plate
JM VSH Plates are 2.2" round heavy duty reinforced polymer plates with barbs utilized for in seam single ply membrane securement, and cover board preliminary securement of Very Severe Hail rated single ply membrane systems.
JM isoweld
JM isoweld® is 3.12" (79.2 mm) round G-90 steel plate with a flat bonding surface of proprietary TPO or PVC adhesive coating. Utilizing induction weld technology, JM isoweld® simultaneously fastens the insulation and membrane. Designed to be used with JM #15 Dekfast Fasteners.
Membrane Battens
Membrane Battens are a 1" wide, prepunched, polymer batten strips with prepunched, counter-sunk, GALVALUME®*-coated steel anchor bars.

Fastener and Plate Systems

Extra High Load Fasteners and Plates
Extra High Load #21 fasteners, #3 Phillips head and a drill point contain a corrosion-resistant coating and to be used to mechanically attach thermoplastic membranes.
High Load AccuSeam System
The High Load AccuSeam™ System is a premier automated system for mechanically attached seams. The System positions the 23⁄8" (6.03 cm), round, High Load Plate with eye hooks, and installs the High Load Fastener, up to 6" (15.24 cm) in length in a one-step, continuous process. Standard High Load Plates are not compatible with the AccuSeam™ Fastener and Plate System
High Load Fasteners and Plates
High Load Fasteners are a #15 case-hardened steel roof membrane fastener with Galvalume®*-coated steel seam plates. These fasteners can be used in a thermoplastic induction weld system with RhinoPlate®.
JM Termination Systems
JM Termination Systems include termination bars, anchor discs and masonry nail-in anchor and are used for membrane fastening systems.
Lite-Deck Fasteners and Plates
Lite-Deck Fasteners are available in lengths from 25 /8” to 12" (67 mm to 305 mm), come with a square drive and offer coarse thread to provide high pullout resistance.
Structural Concrete Deck Fasteners and Plates
The Structural Concrete Deck Fastener is a diamond point, non-threaded carbon steel insulation and membrane fastener.
UltraFast AccuTrac Fastener and Plate System
The UltraFast® AccuTrac™ Fastener and Plate System utilizes the standard UltraFast® Fastener and the UltraFast® Accutrac™, recessed or flat bottomed, square plate. The AccuTrac™ tool positions the plate and installs fasteners 15⁄8" - 6" (4.13 cm - 15.24 cm) in a one-step process. Consistent vertical alignment of fasteners ensures maximum thread engagement and pullout performance.
UltraFast Fasteners and Plates
UltraFast® Fasteners and Plates are used to fasten insulation in both multi-ply and single ply systems. The UltraFast® Fastener is a #12, case-hardened steel, polymer-coated fastener with a buttress thread design that provides maximum pullout values and minimizes fastener backout. The UltraFast® Plates are either round, high strength polypropylene plates with a special locking feature or round or square, premium Galvalume®*-coated steel metal plates.

Fasteners

All Purpose Fasteners
All Purpose Fasteners are #14 case-hardened steel fasteners with a #3 Phillips head. The point is designed for quick installation in new or re-roof applications.
JM Purlin Fastener
The JM Purlin Fastener is a steel-coated fastener with a ¼" hex head and ¾" (19 mm) drill point. The drill point allows the fastener to be drilled through the purlin before the threads engage into the standing seam metal roof.
JM RetroDriller Fasteners
JM RetroDriller Fastener is designed for attaching single ply membrane systems to structural purlins (up to 3 /16”) in standing seam metal roof retrofit applications.
Lightweight Concrete (LWC) Fasteners
Lightweight Concrete (LWC) Base Sheet Fasteners are expanding base sheet fasteners with Galvalume®-coated steel plates used in multi-ply systems.
Nail-Lok SD
Nail-Lok™ SD is utilized with steel decks in several panel applications including Nailboard, Vented Nailboard, structural insulated panels (SIP), and prefabricated wall panels. The extra-large star/spider head increases pull-through resistance and eliminates the need for plates or washers.
Nail-Lok WD
Nail-Lok™ WD is utilized with wood decks in several panel applications including Nailboard, Vented Nailboard, structural insulated panels (SIP), and prefabricated wall panels. The extra-large star/spider head increases pull-through resistance and eliminates the need for plates or washers.
Polymer Auger Fasteners
Polymer Auger Fasteners are glass-reinforced nylon fasteners with an internal ¼" (6 mm) square drive. Polymer Auger Fasteners have a 1" (2.5 cm) diameter head.
UltraLok Locking Impact Fastener and Plate
UltraLok™ Locking Impact Fasteners and Plates consist of a preassembled Galvanized steel tube, a 2.7" (6.86 cm) Galvalume®*-coated steel disc, and a precision-formed, coated- steel, high tensile, wirelocking staple. The disc is securely clamped to the tube and is rib-reinforced to resist cupping.

Plates

APB Plates
APB Plates are made of Galvalume®*-coated steel. The 2" (51 mm) round plate with barbs provides an even distribution of loads and eliminates sharp corners that can damage the insulation or membrane.
JM ENRGY Anchor
ENRGY® Anchor is a lightweight, roof-top integrated, photovoltaic (PV)-mounting solution consisting of a Galvalume®*-coated steel plate welded to a stainless steel stud, with a JM membrane flashing target. Each assembly includes a leveling washer and membrane separator.
JM PVC RhinoPlate
JM PVC RhinoPlate® is a 3" (76.2 mm) round specially coated Galvalume®* plate with a recessed center and raised flat bonding surface. The JM PVC RhinoPlate® is a roof attachment system that uses heat induction technology.
JM TPO RhinoPlate
JM TPO RhinoPlate® is a 3" (76.2 mm) round specially coated Galvalume®* plate with a recessed center and raised flat bonding surface. The JM TPO RhinoPlate® is a roof attachment system that uses heat induction technology
JM VSH Plate
JM VSH Plates are 2.2" round heavy duty reinforced polymer plates with barbs utilized for in seam single ply membrane securement, and cover board preliminary securement of Very Severe Hail rated single ply membrane systems.
JM isoweld
JM isoweld® is 3.12" (79.2 mm) round G-90 steel plate with a flat bonding surface of proprietary TPO or PVC adhesive coating. Utilizing induction weld technology, JM isoweld® simultaneously fastens the insulation and membrane. Designed to be used with JM #15 Dekfast Fasteners.
Membrane Battens
Membrane Battens are a 1" wide, prepunched, polymer batten strips with prepunched, counter-sunk, GALVALUME®*-coated steel anchor bars.

Use our locator to find your nearest contractor or distributor.

Find Your Local Roofing Contractor or Distributor Here

Fastening Patterns

When it comes to design, we've got the tools to get you from the desk to the roof. Here you will find all of the fastening patterns for fasteners and plates. If you have any questions when it comes to installation, please contact our Specifier Services Group for design and your local technical representative for the field.

2x4 Ft. Roof Insulation Fastener Placement

4x4 Ft. Roof Insulation Fastener Placement

4x8 Ft. Roof Insulation Fastener Placement

BM-12,12,12 Mechanically Fastened Base Sheet (12", 12", 12" o.c.)

BM-7,7,7 Mechanically Fastened Base Sheet (7", 7", 7" o.c.)

BM-7,9,9 Mechanically Fastened Base Sheet (7", 9", 9" o.c.)

BM-75,75,75 Mechanically Fastened Base Sheet (7.5", 7.5", 7.5" o.c.)

BM-9,12,12 Mechanically Fastened Base Sheet (9", 12", 12" o.c.)

BM-9,18,18 Mechanically Fastened Base Sheet (9", 18", 18" o.c.)

BM-9,9,9 Mechanically Fastened Base Sheet (9", 9", 9" o.c.)

FA-16 Fully Adhered Cover (16-24-32)

FA-8 Fully Adhered Cover (8-16-32)

CBUA-12-6-4 Cover Board Urethane Adhesive Fastening

ICBUA-8-4-4 Insulation and Cover Board Urethane Adhesive Fastening

ICBUA-12-6-4 Insulation and Cover Board Urethane Adhesive Fastening

INUA-12-6-4 Insulation Urethane Adhesive Fastening

2x4 Ft. Roof Insulation Fastener Placement

4x4 Ft. Roof Insulation Fastener Placement

4x8 Ft. Roof Insulation Fastener Placement

BM-12 Mechanically Fastened Base Sheet (12" o.c.)

BM-12,12,12 Mechanically Fastened Base Sheet (12", 12", 12" o.c.)

BM-18 Mechanically Fastened Base Sheet (18" o.c.)

BM-6 Mechanically Fastened Base Sheet (6" o.c.)

BM-7,7,7 Mechanically Fastened Base Sheet (7", 7", 7" o.c.)

BM-7,9,9 Mechanically Fastened Base Sheet (7", 9", 9" o.c.)

BM-75,75,75 Mechanically Fastened Base Sheet (7.5", 7.5", 7.5" o.c.)

BM-9,12,12 Mechanically Fastened Base Sheet (9", 12", 12" o.c.)

BM-9,18,18 Mechanically Fastened Base Sheet (9", 18", 18" o.c.)

BM-9,9,9 Mechanically Fastened Base Sheet (9", 9", 9" o.c.)

FA-16 Fully Adhered Cover (16-24-32)

FA-8 Fully Adhered Cover (8-16-32)

CBUA-12-6-4 Cover Board Urethane Adhesive Fastening

ICBUA-8-4-4 Insulation and Cover Board Urethane Adhesive Fastening

ICBUA-12-6-4 Insulation and Cover Board Urethane Adhesive Fastening

INUA-12-6-4 Insulation Urethane Adhesive Fastening

BM-9,9,9-TS Tape and Staple Attached Base Sheet (9", 9", 9" o.c.)

BM-9,9,9,9-TS Tape and Staple Attached Base Sheet (9", 9", 9", 9" o.c.)

2x4 Ft. Roof Insulation Fastener Placement - Adhered, Ballasted

4x4 Ft. Roof Insulation Fastener Placement - Adhered, Ballasted

4x8 Ft. Roof Insulation Fastener Placement - Adhered, Ballasted

EM-6 Mechanically Attached JM Reinforced EPDM (6" O.C.)

EM-12 Mechanically Attached JM Reinforced EPDM (12" O.C.)

EMR-6 10" RPS and Mechanically Fastened JM EPDM (6" O.C.)

EMR-12 10" RPS and Mechanically Fastened JM EPDM (12" O.C.)

FA-16 Fully Adhered Cover (16-24-32)

FA-8 Fully Adhered Cover (8-16-32)

CBUA-12-6-4 Cover Board Urethane Adhesive

ICBUA-8-4-4 Insulation and Cover Board Urethane Adhesive

ICBUA-12-6-4 Insulation and Cover Board Urethane Adhesive

INUA-12-6-4 Insulation Urethane Adhesive

2x4 Ft. Roof Insulation Fastener Placement - Mechanically Fastened, Adhered

4x4 Ft. Roof Insulation Fastener Placement - Mechanically Fastened, Adhered

4x8 Ft. Roof Insulation Fastener Placement - Mechanically Fastened, Adhered

JM PVC RhinoPlate Fastening System 6-10-15

JM PVC RhinoPlate Fastening System 8-15-20

PM-12 FULL JM PVC Mechanically Fastened (12" O.C.)

PM-12 Mechanically Fastened JM PVC (12" O.C.)

PM-18 Mechanically Fastened JM PVC (18" O.C.)

PM-6 FULL JM PVC Mechanically Fastened (6" O.C.)

PM-6 Mechanically Fastened JM PVC (6" O.C.)

FA-16 Fully Adhered Cover (16-24-32)

FA-8 Fully Adhered Cover (8-16-32)

PUA-4-4-4 PVC-FB Urethane Adhesive

PUA-6-4-4 PVC-FB Urethane Adhesive

PUA-12-6-4 PVC-FB Urethane Adhesive

CBUA-12-6-4 Cover Board Urethane Adhesive

ICBUA-8-4-4 Insulation and Cover Board Urethane Adhesive

ICBUA-12-6-4 Insulation and Cover Board Urethane Adhesive

INUA-12-6-4 Insulation Urethane Adhesive

2 PLY SBS Bonded to Insulation Assembly Plate

2 PLY SBS Mechanically Fastened Base Sheet Over Insulation Assembly Plate

3 PLY SBS Bonded to Insulation Assembly Plate

3 PLY SBS Including Nailed Base Sheet Assembly Plate

3 PLY SBS Mechanically Fastened Base Sheet Ovetr Insulation Assembly Plate

4 PLY SBS Bonded to Insulation Assembly Plate

4 PLY SBS Including Nailed Base Sheet Assembly Plate

2x4 Ft. Roof Insulation Fastener Placement - Mechanically Fastened, Adhered

4x4 Ft. Roof Insulation Fastener Placemen t - Mechanically Fastened, Adhered

4x8 Ft. Roof Insulation Fastener Placemen t - Mechanically Fastened, Adhered

JM TPO RhinoPlate Fastening System 6-10-15

JM TPO RhinoPlate Fastening System 8-15-20

T-RSPR-1 RhinoPlate® Fastened TPO Membrane to Purlins

T-RSPR-2 RhinoPlate® Fastened TPO Membrane - Edge Flashings – Gravel Stop

T-RSPR-3 RhinoPlate® Fastened TPO Membrane - Edge Flashings – Gutter

TM-12 Full Mechanically Fastened JM TPO (12" O.C.)

TM-12 Mechanically Fastened JM TPO (12" O.C.)

TM-18 Mechanically Fastened JM TPO (18" O.C.)

TM-6 Full Mechanically Fastened JM TPO (6" O.C.)

TM-6 Mechanically Fastened JM TPO (6" O.C.)

TMR-12 10" RPS and Mechanically Fastened JM TPO (12" O.C.)

TMR-6 10" RPS and Mechanically Fastened JM TPO (6" O.C.)

TUA-4-4-4 TPO-FB Urethane Adhesive

TUA-6-4-4 TPO-FB Urethane Adhesive

TUA-12-6-4 TPO-FB Urethane Adhesive

CBUA-12-6-4 Cover Board Urethane Adhesive

ICBUA-8-4-4 Insulation and Cover Board Urethane Adhesive

ICBUA-12-6-4 Insulation and Cover Board Urethane Adhesive

INUA-12-6-4 Insulation Urethane Adhesive

Documents

Videos

Case Study

Vegas Miracle Mile Shops Re-Roofed Using Complete JM System

This massive 300,000 sf project over the Miracle Mile shops at Planet Hollywood was installed by Commercial Roofers, Inc.. The solution chosen was a Johns Manville PVC RhinoPlate System. This was a very unique project due to the vast amount of penetrations on the roof.

Watch Here
Case Study

Project Sugar in Colorado uses ProtectoR HD as a Key Product in New Construction

Against the backdrop of the Rocky Mountains’ Front Range, commercial real estate developer Trammell Crow Company (TCC) transformed 70 acres of farmland into an industrial park. All new infrastructure—roads, electricity, water, sewage—was put into place before a massive 818,300 square foot roofing project was constructed.

Watch Here
Case Study

New JM TPO 12 Foot Rolls Lead to an Increase in Productivity

The site of a nearly 170,000 square foot former Menards home improvement store was refurbished and reconfigured to house a host of retailers including: movie theaters, an indoor skydiving venue, a Planet Fitness gym and many others. Located near the Chicagoland Territory, the reroofing was completed in September 2018.

Watch Here
Behind the Scenes

Our Plant In Hillsboro Texas - JM TPO RhinoPlate

Our plant in Hillsboro Texas was created to bring value, and a higher quality of service to contractors in this region of United States. This content covers what will be produced at the plant, and highlights the JM Rhino Plate TPO roofing system that was installed.

Watch Here
Installation

TPO RhinoPlate

This installation video shows how to install a Johns Manville RhinoPlate System using Johns Manville TPO.

Watch Here

Maximizing Your Roof's Protection From Hail

When it comes to your roof, hail can cause significant damage. However, incorporating the appropriate cover board into your roofing system can provide you with superior protection. Upgrade your roof to VSH-rated with DexCell FA VSH Glass Mat Roof Board today!

Very Severe Hail is two inches or wider in diameter.

Hail can fall as speeds up to 72 mph

The Very Severe Hail region was recently expanded. Are you in the danger zone? Visit the FM Global natural hazards map here.

JM Very Severe Hail Solutions Brochure

Roofing Institute Contractor Training

Our JM approved contractors can take advantage of hands-on training and learn all the latest best practices for your profession through our learning program. As low-slope roof technology, materials and performance demands evolve, it is crucial to understand new materials and technologies. JM has built an education and development initiative that utilizes our over 160 years of experience in commercial roofing.

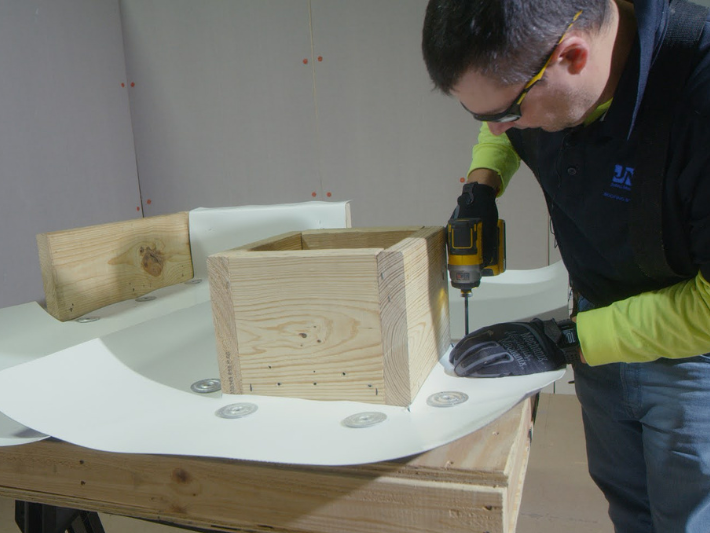

Training mechanically fastening TPO around a penetration.

BURSI for Design Professionals

Our BURSI® program, run by our Specifier Services Team offers customizable education programs that are certified by American Institute of Architects (AIA). We offer anything from one-hour “Lunch and Learns” to a 10-hour, multiple-day seminar. Our program is known as (BURSI) Better Understanding of Roofing Systems Institute. Please contact your local sales representative for more information on upcoming BURSI dates or visit our calendar to see the next educational seminar is in your area.

Roofing Systems Blog

Commercial Roofing

Don’t miss “TPO Roofing 101” on Roofers Coffee Shop

Those in the know in roofing know TPO. So, too, does Johns Manville’s Kaare Kurtzke, who recently sat down with Heidi J. Ellsworth for a Roofers Coffee Shop Lunch and Learn s...

Read this article
Commercial Roofing

Roofers Coffee Shop Celebrates Hispanic Heritage Month Featuring JM's Minnie Robles

The historic, growing and impactful role of Hispanics in the roofing industry recently took center stage for Coffee Conversations. The episode celebrating Hispanic Heritage M...

Read this article
Commercial Roofing

Get the Job Done Faster with JM’s New EPDM FIT SA (Even in the Cold)

At Johns Manville, we know time matters when it comes to a roofing job going right. So, too, do temperatures. Our new JM EPDM FIT SA allows contractors to make the most of bo...

Read this article
Commercial Roofing

Johns Manville Roofing Volunteer Day

A team of 21 Johns Manville Roofing Systems employees recently spent a morning pitching in at Food Bank of the Rockies as part of the company-wide Global Community Day. No...

Read this article
Commercial Roofing

Johns Manville Rocks the Trade Show Scene

There’s nothing like a crowded show floor to ramp up excitement about the roofing industry. At least that’s how we see it at Johns Manville. Attending educational events and ...

Read this article
Commercial Roofing

JM TPO Heat Weldable Cover Tape Joins JM Lineup

At Johns Manville, we know versatile products can be the key to a roofing project not only coming in on time and on budget, but also standing the test of time. That’s why we’...

Read this article
Commercial Roofing

Above It All Episode 45: Johns Manville Introduces EPDM FIT Self-Adhered

Podcast episode 45 features Johns Manville's new EPDM Product Manager, Kevin Roepe. Kevin discusses Johns Manville's new EPDM FIT Self-Adhered membrane, product highlights, a...

Read this article
Commercial Roofing

Above It All Episode 44: IIBEC Features JM's Technical Sales Experts

Podcast episode 44 features Johns Manville's Technical Sales duo, Rick Gustin and Rob Hughes. Rick and Rob discuss their wind convergence presentation at IIBEC's Internationa...

Read this article
Commercial Roofing

Bright Future Ahead: JM Joins SkillsUSA in Developing Next Generation of Workers

For more than 160 years, people have been at the core of everything Johns Manville does. Recently that commitment took center stage in Georgia, where JM joined forces with th...

Read this article

Explore More

Commercial Roofing News

Fasteners and Plates
