BUR Roofing Systems

We pioneered built-up roofing systems in America more than 160 years ago. Our highly reliable waterproof membrane is field-fabricated with layers of bitumen, alternating with plies of reinforcing felts.

The redundant layers give roofs exceptional resistance to water and weather. As a result, we have long-lasting, durable and worry-free systems. Few roofing companies can claim to have created nearly one billion feet of BUR that are today under full guarantee.



Filter Products By
  • Roofing Systems
  • Filter By
Jump To
Fiber glass-reinforced, SBS copper foil-surfaced cap or flashing sheet.

Meets or exceeds the criteria for ASTM D 6298

DynaClad Copper is used as a fiber glass-reinforced cap or flashing sheet in a variety of multi-ply roofing systems.

Copper Foil Surface: Provides high reflectivity, reducing heat load on the roof membrane and potentially lowering air conditioning energy costs.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Fiber Glass Reinforcement Mat: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics.

DynaClad-Copper-700x464
Available Documents

Composite-reinforced, SBS mineral-surfaced flashing sheet.

Meets or exceeds the criteria for ASTM D 6221, Type I

DynaFlex is used as a composite-reinforced cap sheet membrane in a variety of multi-ply roofing systems.

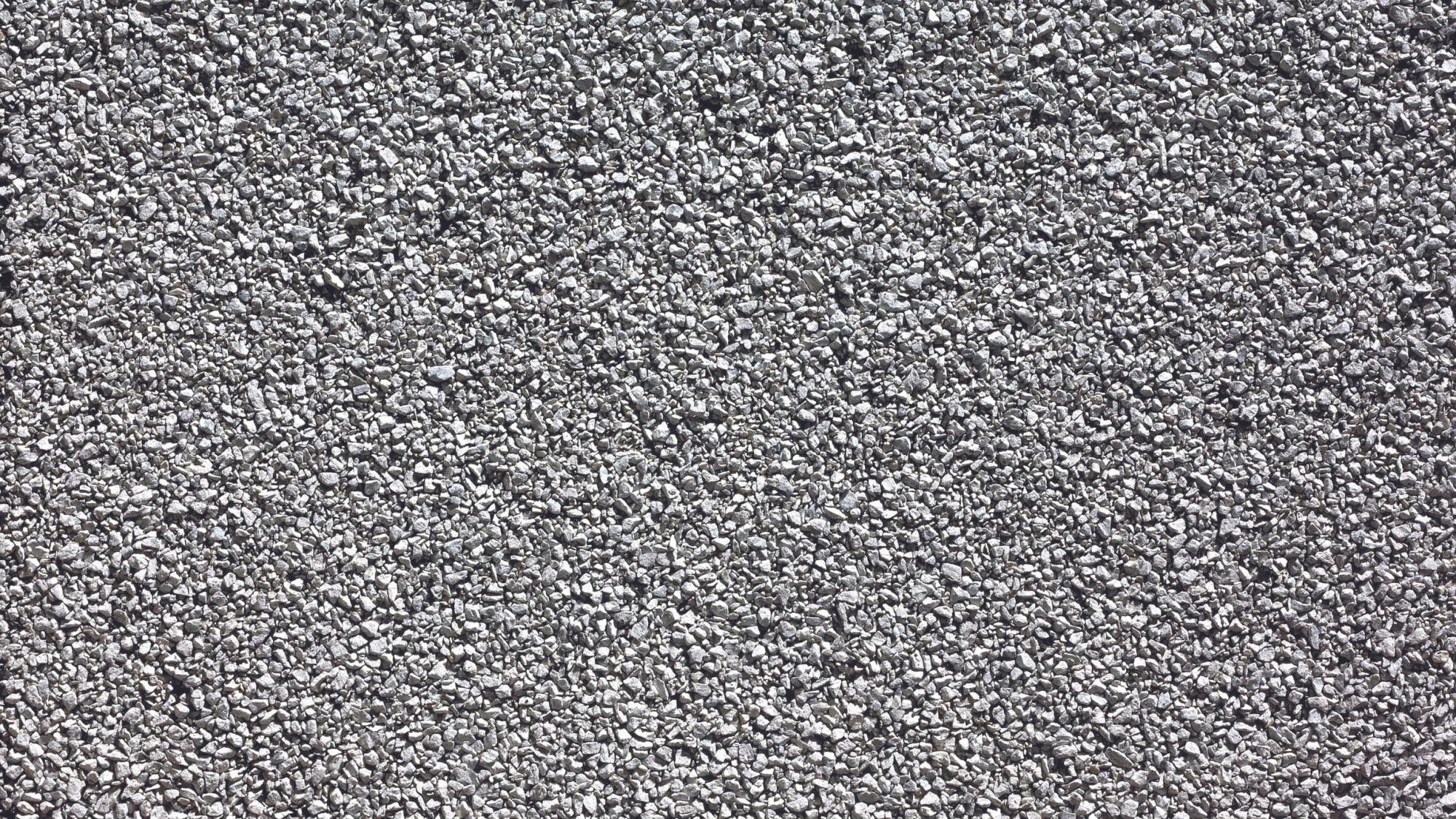

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Fiber Glass/Polyester Reinforcement Mat: Combines the excellent tensile strength, toughness and puncture resistance of a polyester mat with the dimensional stability and lay-flat characteristics of fiber glass.

case studies

Dura-Bar® Heavy Industrial Manufacturing Facility

Colorado Container Corporation

St. Patrick Elementary School

Penn Square Mall

Available Documents

Composite-reinforced, SBS, acrylic-coated, mineral-surfaced cool roof flashing sheet.

Meets or exceeds the criteria for ASTM D 6221, Type I

DynaFlex CR is used as a composite-reinforced cool roof cap sheet membrane in a variety of multi-ply roofing systems.

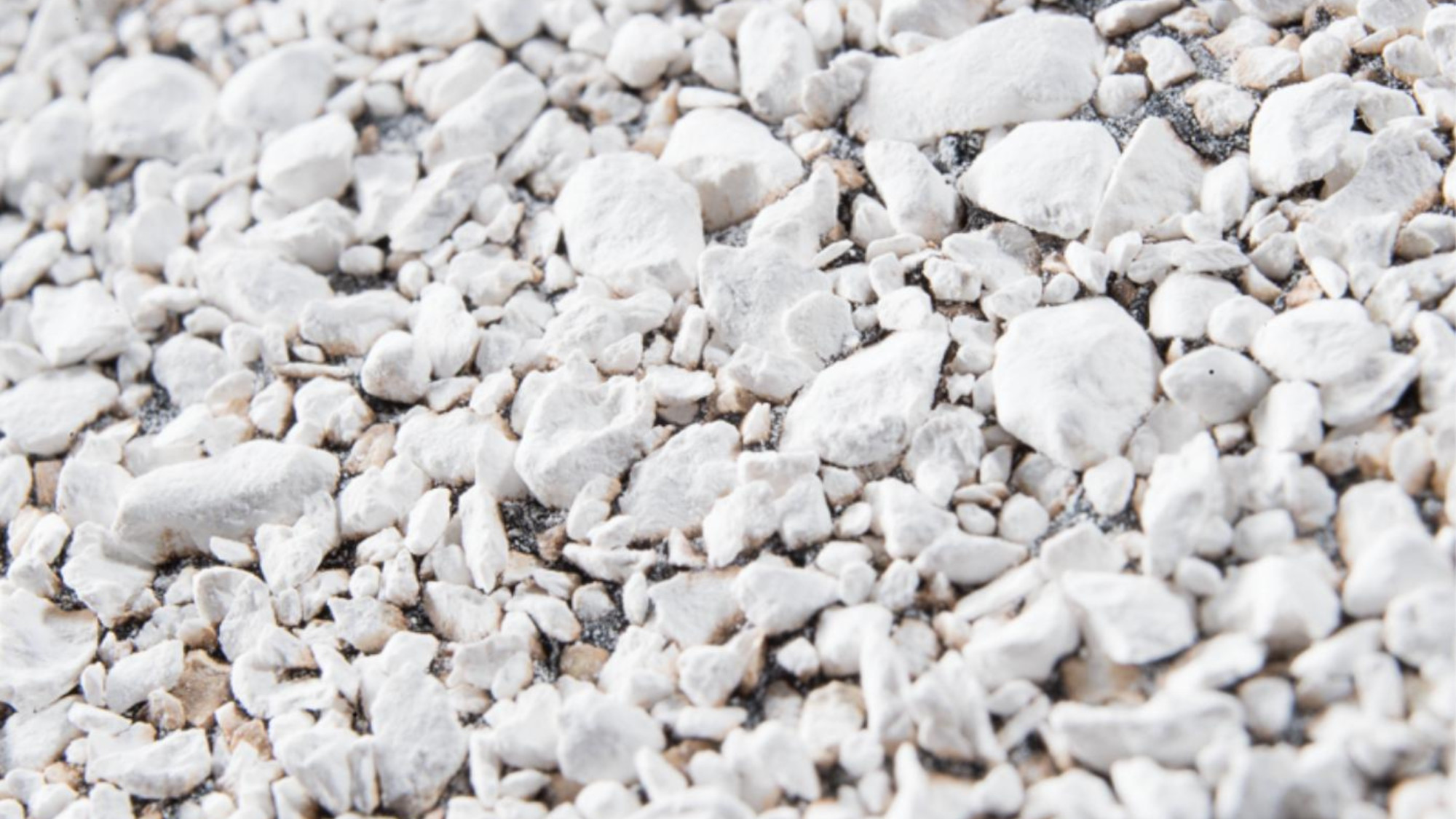

Ceramic-Coated Roofing Granules With Factory-Applied Cool Roof Coating: The cool roof technology combines the proven UV protection of ceramic-coated granules with a highly reflective coating, offering long-term performance and potential energy savings. Color: White only.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Fiber Glass/Polyester Reinforcement Mat: Combines the excellent tensile strength, toughness and puncture resistance of a polyester mat with the dimensional stability and lay-flat characteristics of fiber glass.

Brochures

SBS Cool Roof Solutions Brochure

Available Documents

Fiber glass-reinforced, SBS, , mineral-surfaced cap or flashing sheet.

Meets the requirements of ASTM D 6163, Type I, Grade G

DynaGlas is used as a fiber glass-reinforced mineral-surfaced cap sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Fiber Glass Reinforcement Mat: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics.

DynaLastic 180 FR
Available Documents

Fire-retardant, fiber glass-reinforced, SBS, mineral-surfaced cap sheet.

Meets the requirements of ASTM D 6163, Type 1, Grade G

DynaGlas 30 FR is used as a fiber glass-reinforced mineral-surfaced cap sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Fiber Glass Reinforcement Mat: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics.

Available Documents

Fire-retardant, fiber glass-reinforced, SBS, mineral-surfaced cap sheet.

Meets the requirements of ASTM D 6163, Type 1, Grade G

DynaGlas FR is used as a fiber glass-reinforced mineral-surfaced cap sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Fiber Glass Reinforcement Mat: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics.

Available Documents

Fire-retardant, fiberglass-reinforced, SBS, acrylic-coated, mineral-surfaced cool roof cap sheet.

Meets the requirements of ASTM D 6163, Type 1, Grade G

DynaGlas FR CR is used as a fiber glass-reinforced cool roof cap sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules With Factory-Applied Cool Roof Coating: The cool roof technology combines the proven UV protection of ceramic-coated granules with a highly reflective coating, offering long-term performance and potential energy savings. Color: White only.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Fiber Glass Reinforcement Mat: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics, contributing to better aesthetics.

DynaGlas-FR-CR-700x467

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Fire-Retardant, Fiber Glass-Reinforced, SBS Reflective Mineral-Surfaced, Cool Roof Cap Sheet

Meets the requirements of ASTM D 6163, Type I, Grade G

Reflective Roofing Granules: Specifically engineered for high reflectivity, durability and optimal embedment in the SBS modified bitumen sheet.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet and contains fire-retardant additives. The thicker JM SBS coating provides more waterproofing value.

Fiber Glass Reinforcement Mat: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics, contributing to better aesthetics.

Dynaglas-FR-CR-G 700x467

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Fire-retardant, fiber glass/polyester-reinforced, SBS, mineral-surfaced cap sheet.

Meets the requirements of ASTM D 6162, Type 1, Grade G

DynaKap FR T1 is used as a premium fiber glass/polyesterreinforced mineral-surfaced cap sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion. Granules are available in White or Black.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Fiber Glass/Polyester Reinforcement Mat: Combines the excellent tensile strength, toughness and puncture resistance of a polyester mat with the dimensional stability and lay-flat characteristics of fiber glass.

Available Documents

Fire-retardant, fiber glass/polyester-reinforced, SBS, , acrylic -coated, mineral-surfaced cool roof cap sheet.

Meets the requirements of ASTM D 6162, Type 1, Grade G

DynaKap FR T1 CR is used as a premium fiber glass/polyesterreinforced cool roof cap sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules With Factory-Applied Cool Roof Coating: The cool roof technology combines the proven UV protection of ceramic-coated granules with a highly reflective coating, offering long-term performance and potential energy savings.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Fiber Glass/Polyester Reinforcement Mat: Combines the excellent tensile strength, toughness and puncture resistance of a polyester mat with the dimensional stability and lay-flat characteristics of fiber glass.

Color: Bright White only.

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Fire-Retardant, Fiber Glass/Polyester-Reinforced, SBS Reflective Mineral-Surfaced, Cool Roof Cap or Flashing Sheet

Meets the requirements of ASTM D 6162, Type I, Grade G

Reflective Roofing Granules: Specifically engineered for high reflectivity, durability and optimal embedment in the SBS modified bitumen sheet.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet and contains fire-retardant additives. The thicker JM SBS coating provides more waterproofing value.

Fiber Glass/Polyester Reinforcement Mat: Provides stability, toughness and puncture resistance to the product and resists moisture absorption. The reinforcement also provides high tensile strength and affords better natural resistance to the other factors which affect roof performance.

Color: Bright White only

brochures

SBS Cool Roof Solutions Brochure

Available Documents

A premium fiber glass/polyesterreinforced mineral-surfaced cap sheet in a variety of multi-ply roofing systems.

Meets the requirements of ASTM D 6162, Type I, Grade G

DynaKap FR T1 HW is used as a premium fiber glass/polyesterreinforced mineral-surfaced cap sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Fiber Glass/Polyester Reinforcement Mat: Combines the excellent tensile strength, toughness and puncture resistance of a polyester mat with the dimensional stability and lay-flat characteristics of fiber glass. Polyolefin

Burn-Off Film: Promotes ease of heat welding.

Colors: White or Black.

DYNAKAP-FRt1-HW-700x468
Available Documents

Fire-Retardant, Fiber Glass/Polyester-Reinforced, SBS Reflective Mineral-Surfaced, Cool Roof Cap or Flashing Sheet

Meets the requirements of ASTM D 6162, Type I, Grade G

Reflective Roofing Granules: Specifically engineered for high reflectivity, durability and optimal embedment in the SBS modified bitumen sheet.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet and contains fire-retardant additives. The thicker JM SBS coating provides more waterproofing value.

Fiber Glass / Polyester Reinforcement Mat: Provides stability, toughness and puncture resistance to the product and resists moisture absorption. The reinforcement also provides high tensile strength and affords better natural resistance to the other factors which affect roof performance.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Color: Bright White only

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Fiber glass/polyester-reinforced, SBS, mineral-surfaced cap sheet.

Meets the requirements of ASTM D 6162, Type I, Grade G

DynaKap T1 is used as a fiber glass/polyester-reinforced mineralsurfaced cap sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion. Granules are available in White or Black.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Fiber Glass/Polyester Reinforcement Mat: Combines the excellent tensile strength, toughness and puncture resistance of a polyester mat with the dimensional stability and lay-flat characteristics of fiber glass.

Colors: White or Black.

Available Documents

Polyester-reinforced, SBS, mineral-surfaced cap or flashing sheet.

Meets the requirements of ASTM D 6164, Type I, Grade G

DynaLastic 180 is used as a polyester-reinforced mineral-surfaced cap or flashing sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Polyester Reinforcement Mat: Polyester mat with bidirectional glass-scrim reinforcement offers robust tear strength and puncture resistance, allowing for high wind performance and an excellent hail rating. The sheet also exhibits strong dimensional stability and enhanced elongation.

Available Documents

Fire-retardant, polyester-reinforced, SBS, mineral-surfaced cap or flashing sheet.

Meets the requirements of ASTM D 6164, Type I, Grade G

DynaLastic 180 FR is used as a polyester-reinforced mineral-surfaced cap or flashing sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Polyester-Reinforced Mat: Polyester mat with bidirectional glass-scrim reinforcement offers robust tear strength and puncture resistance, allowing for high wind performance and an excellent hail rating. The sheet also exhibits strong dimensional stability and enhanced elongation.

Colors: White or Black.

Available Documents

Fire-retardant, polyester-reinforced SBS, , acrylic-coated,, mineral-surfaced cool roof cap or flashing sheet.

Meets the requirements of ASTM D 6164, Type I, Grade G

DynaLastic 180 FR CR is used as a polyester-reinforced cool roof cap or flashing sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules With Factory-Applied Cool Roof Coating: The cool roof technology combines the proven UV protection of ceramic-coated granules with a highly reflective coating, offering long-term performance and potential energy savings.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Polyester-Reinforced Mat: Polyester mat with bidirectional glass-scrim reinforcement offers robust tear strength and puncture resistance, allowing for high wind performance and an excellent hail rating. The sheet also exhibits strong dimensional stability and enhanced elongation.

Color: Bright White only

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Fire-Retardant, Polyester-Reinforced, SBS Reflective Mineral-Surfaced, Cool Roof Cap or Flashing Sheet

Meets the requirements of ASTM D 6164, Type I, Grade G

Reflective Roofing Granules: Specifically engineered for high reflectivity, durability and optimal embedment in the SBS modified bitumen sheet.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet and contains fire-retardant additives. The thicker JM SBS coating provides more waterproofing value.

Polyester Reinforcement Mat: Polyester mat with bidirectional glass-scrim reinforcement offers robust tear strength and puncture resistance, allowing for high wind performance and an excellent hail rating. The sheet also exhibits strong dimensional stability and enhanced elongation.

Color: Bright White only

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Polyester-reinforced SBS base or ply sheet.

Meets the requirements of ASTM D 6164, Type I, Grade S

DynaLastic 180 S is used as a polyester-reinforced base or ply sheet in a variety of multi-ply roofing systems.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Polyester Reinforcement Mat: Polyester mat with bidirectional glass-scrim reinforcement offers robust tear strength and puncture resistance, allowing for high wind performance and an excellent hail rating. The sheet also exhibits strong dimensional stability and enhanced elongation.

Surfacing: A fine material parting agent is applied to both sides of the product.

Available Documents

Fire-retardant, heavy-duty, polyester-reinforced, SBS, mineral-surfaced cap or flashing sheet.

Meets the requirements of ASTM D 6164, Type II, Grade G

DynaLastic 250 FR is used as a premium polyester-reinforced cap or flashing sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Polyester-Reinforcement Mat: Provides excellent tensile strength, toughness, and puncture resistance and can accommodate stresses created by typical roof top expansion and contraction forces.

Available Documents

Fire-retardant, heavy-duty, polyester-reinforced, SBS, , acrylic-coated, mineral-surfaced cool roof cap or flashing sheet.

Meets the requirements of ASTM D 6164, Type II, Grade G

DynaLastic 250 FR CR is used as a premium polyester-reinforced cool roof cap or flashing sheet in a variety of multi-ply roofing systems. Ceramic-Coated Roofing Granules with Factory-Applied

Cool Roof Coating: The cool roof technology combines the proven UV protection of ceramic-coated granules with a highly reflective coating, offering long-term performance and potential energy savings.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Heavy Duty Polyester-Reinforcement Mat: Provides excellent tensile strength, toughness and puncture resistance, and it can accommodate stresses created by typical rooftop expansion and contraction forces.

Color: Bright White only

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Fire Retardant, Heavy Duty Polyester-Reinforced, SBS Reflective Mineral-Surfaced, Cool Roof Cap or Flashing Sheet

Meets the requirements of ASTM D 6164, Type II, Grade G

Reflective Roofing Granules: Specifically engineered for high reflectivity, durability and optimal embedment in the SBS modified bitumen sheet.

Elastomeric SBS Rubber and Asphalt Blend: Provides full recovery properties after 100% elongation, and lends elasticity and flexibility to the sheet and contains fire-retardant additives.

Heavy Duty Polyester Mat Reinforcement: A tough, nonwoven polyester mat provides excellent tensile strength, toughness and puncture resistance, and can accommodate stresses created by typical rooftop expansion and contraction forces.

Color: Bright White only

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Polyester-reinforced SBS base or ply sheet.

Meets the requirements of ASTM D 6164, Type II, Grade S

DynaLastic 250 S is used as a polyester-reinforced base or ply sheet in a variety of multi-ply roofing systems.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Heavy Duty Polyester-Reinforcement Mat: Provides bidirectional glass-scrim reinforcement and offers robust tear strength and puncture resistance, allowing for high wind performance and excellent hail rating. The sheet also exhibits strong dimensional stability and enhanced elongation.

Surfacing: A fine material parting agent is applied to both sides of the product.

Available Documents

Fiber glass/polyester-reinforced SBS base or ply sheet.

Material meets the requirements of ASTM D 6162, Type I, Grade S

DynaPly T1 is used as a premium fiber glass/polyester-reinforced base or ply sheet in a variety of multi-ply roofing systems.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Fiber Glass/Polyester Reinforcement Mat: Combines the excellent tensile strength, toughness and puncture resistance of a polyester mat with the dimensional stability and lay-flat characteristics of fiber glass.

Non-Blocking Surface: Nonblocking surface does not have a surface finish and must be used in constructions that will provide protection from UV (ultraviolet light) and the elements.

Available Documents

Polyester-reinforced SBS base or ply sheet.

Preformed, skid-resistant roof protection pads consisting of modified asphalt, reinforcements and fillers with a ceramic granule surface on both sides. They are durable, resilient and maintenance free.

DynaTred and DynaTred Plus can be installed over built-up and modified bitumen roofing systems to provide an integral, skidresistant walkway for demanding service access needs.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the modified asphalt sheet. The ceramic coating promotes excellent long-term adhesion.

Easy Installation: Can be easily cut with a heavy-duty utility knife or circular saw with a carbide-tipped blade.

Colors: Available in either Black/White or White/White.

Available Documents

Fiber glass-reinforced SBS base or ply sheet.

Meets the requirements of ASTM D 6163, Type I, Grade S

DynaWeld Base is used as a fiber glass-reinforced base or ply sheet in a variety of multi-ply roofing systems.

Fine Mineral Parting Agent: Nonblocking surface for use as a base sheet or ply sheet.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Fiber Glass Reinforcement Mat: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Available Documents

Polyester-reinforced SBS mineral-surfaced cap sheet.

Meets the requirements of ASTM D 6164, Type I, Grade G

DynaWeld Cap 180 is used as a polyester-reinforced mineralsurfaced cap or flashing sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs.

Polyester-Reinforcement Mat: Polyester mat with bidirectional glass-scrim reinforcement offers robust tear strength and puncture resistance, allowing for high wind performance and an excellent hail rating. The sheet also exhibits strong dimensional stability and enhanced elongation.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Colors: White, Black, Tan (Black and Tan may require extended lead times).

Available Documents

Fire-retardant, glass scrim/polyester-reinforced. SBS mineral-surfaced cap sheet.

Meets the requirements of ASTM D 6164, Type I, Grade G

DynaWeld Cap 180 FR is used as a polyester-reinforced mineralsurfaced cap or flashing sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Polyester Reinforcement Mat: Polyester mat with bidirectional glass-scrim reinforcement offers robust tear strength and puncture resistance, allowing for high wind performance and an excellent hail rating. The sheet also exhibits strong dimensional stability and enhanced elongation.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Colors: White, Black and Tan (Black and Tan may require extended lead times.)

Available Documents

Fire-Retardant, Polyester-Reinforced, SBS Reflective Mineral-Surfaced, Cool Roof Cap or Flashing Sheet

Meets the requirements of ASTM D 6164, Type I, Grade G

Reflective Roofing Granules: Specifically engineered for high reflectivity, durability and optimal embedment in the SBS modified bitumen sheet.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet and contains fire-retardant additives. The thicker JM SBS coating provides more waterproofing value.

Polyester Reinforcement Mat: Polyester mat with bidirectional glass-scrim reinforcement offers robust tear strength and puncture resistance, allowing for high wind performance and an excellent hail rating. The sheet also exhibits strong dimensional stability and enhanced elongation.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Color: Bright White only

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Polyester-reinforced, SBS mineral-surfaced cap sheet.

Meets the requirements of ASTM D 6164, Type II, Grade G

DynaWeld Cap 250 is used as a premium polyester-reinforced cap or flashing sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

Fiber Glass/Polyester Reinforcement Mat: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Heavy Duty Polyester-Reinforcement Mat: Provides excellent tensile strength, toughness, and puncture resistance and can accommodate stresses created by typical roof top expansion and contraction forces.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Colors: White, Black and Tan (Black and Tan may require extended lead times).

Available Documents

Fire-retardant, polyester-reinforced, SBS mineral-surfaced cap sheet.

Meets the requirements of ASTM D 6164, Type II, Grade G

DynaWeld Cap 250 FR is used as a premium polyester-reinforced cap or flashing sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Heavy Duty Polyester-Reinforcement Mat: Provides excellent tensile strength, toughness and puncture resistance, and it can accommodate stresses created by typical rooftop expansion and contraction forces.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Colors: White, Black and Tan (Black and Tan may require extended lead times).

Available Documents

Fire-Retardant, Heavy Duty Polyester-Reinforced, SBS Reflective Mineral-Surfaced, Cool Roof Cap or Flashing Sheet

Meets the requirements of ASTM D 6164, Type II, Grade G

Reflective Roofing Granules: Specifically engineered for high reflectivity, durability and optimal embedment in the SBS modified bitumen sheet.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet and contains fire-retardant additives. The thicker JM SBS coating provides more waterproofing value.

Heavy Duty Polyester-Reinforcement Mat: Provides excellent tensile strength, toughness and puncture resistance, and it can accommodate stresses created by typical rooftop expansion and contraction forces.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Color: Bright White only

brochures

SBS Cool Roof Solutions Brochure

Available Documents

Fire-retardant, fiber glass-reinforced SBS mineral-surfaced cap sheet.

Meets the requirements of ASTM D 6163, Type I, Grade G

DynaWeld Cap FR is used as a fiber glass-reinforced mineralsurfaced cap sheet in a variety of multi-ply roofing systems.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the SBS-blend sheet. The ceramic coating promotes excellent long-term adhesion.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet. The elongation and recovery properties allow the product to easily accommodate the continual expansion and contraction experienced on all roofs. The FR blend contains additional fire-retardant additives.

Fiber Glass Reinforcement Mat: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Colors: White, Black and Tan (Black and Tan may require extended lead times.)

Available Documents

Fire-Retardant, Fiber Glass-Reinforced, SBS Reflective Mineral-Surfaced, Cool Roof Cap or Flashing Sheet

Meets the requirements of ASTM D 6163, Type I, Grade G

Reflective Roofing Granules: Specifically engineered for high reflectivity, durability and optimal embedment in the SBS modified bitumen sheet.

High-Quality SBS Rubber and Asphalt Blend: Lends elasticity and flexibility to the sheet and contains fire-retardant additives. The thicker JM SBS coating provides more waterproofing value.

Fiber Glass Reinforcement Mat: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics, contributing to better aesthetics.

Polyolefin Burn-Off Film: Promotes ease of heat welding.

Color: Bright White only

brochures

SBS Cool Roof Solutions Brochure

Available Documents

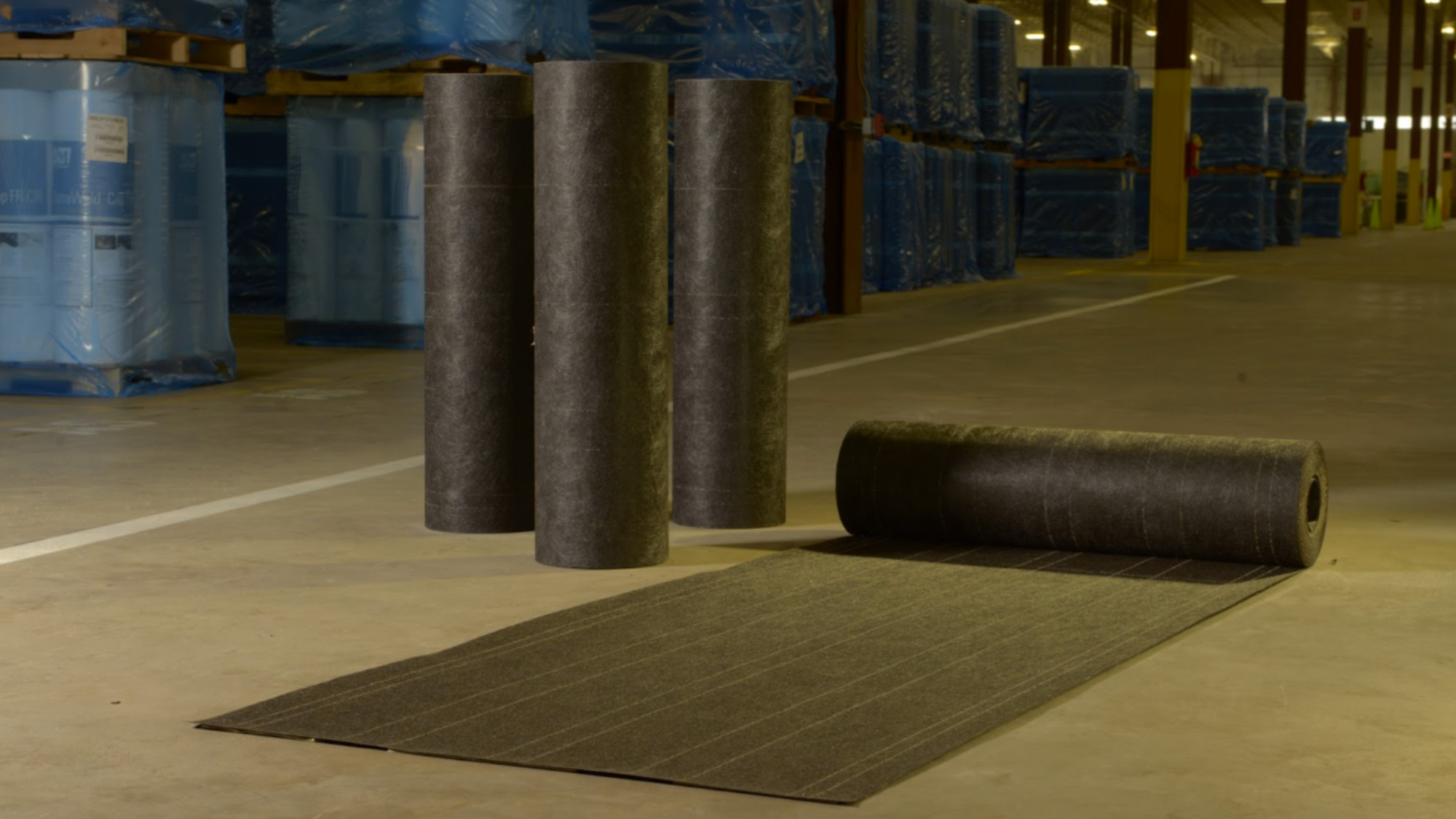

Fiber Glass-Reinforced, SBS Modified Bitumen Base or Ply Sheet

Meets the requirements of ASTM D 4601, Type II

GlasBase Plus is intended to be used as a base sheet in built up roofing or as a base or intermediate ply in modified bitumen systems.

SBS (Styrene-Butadiene-Styrene) Synthetic Rubber and High Quality Asphalt Blend: Brings elasticity and flexibility to the sheet; lays flat virtually eliminating wrinkles resulting in fast, efficient applications.

Fully-Coated Mat: No pinholes prevent asphalt bleed-through, eliminating splitting problems associated with excessive membrane attachment to nailable decks. Excellent nail retention properties and resistance to uplift forces. Virtually eliminates wrinkling, resulting in fast, efficient applications.

Non Porous Composition: Allows the product to be used as a ply sheet in systems that employ cold process mastics such as JM BUR Adhesive.

Fiber Glass Reinforcement Mat: Low moisture, excellent dimensional stability and resistance to rot make it an ideal replacement for organic base sheets. Provides a solid dimensionally stable substrate for other roofing membrane components.

Surfacing: Fine mineral parting agent

GLAS-BASE-PLUS-700x4671
Available Documents

Fiber glass-reinforced, mineral-surfaced cap sheet.

Meets the requirements of ASTM D 3909

GlasKap is used as a cap sheet in a variety of built up roofing systems.

Asphalt Coated, Fiber Glass Reinforcement Mat: Low moisture, excellent dimensional stability and resistance to rot make it an ideal replacement for organic cap sheets.

Ceramic-Coated Granules: Provide protection to the underlying bitumen and membrane, and have a low maintenance cost compared to roofs that use coatings.

GlasKap PLUS-700x4681
Available Documents

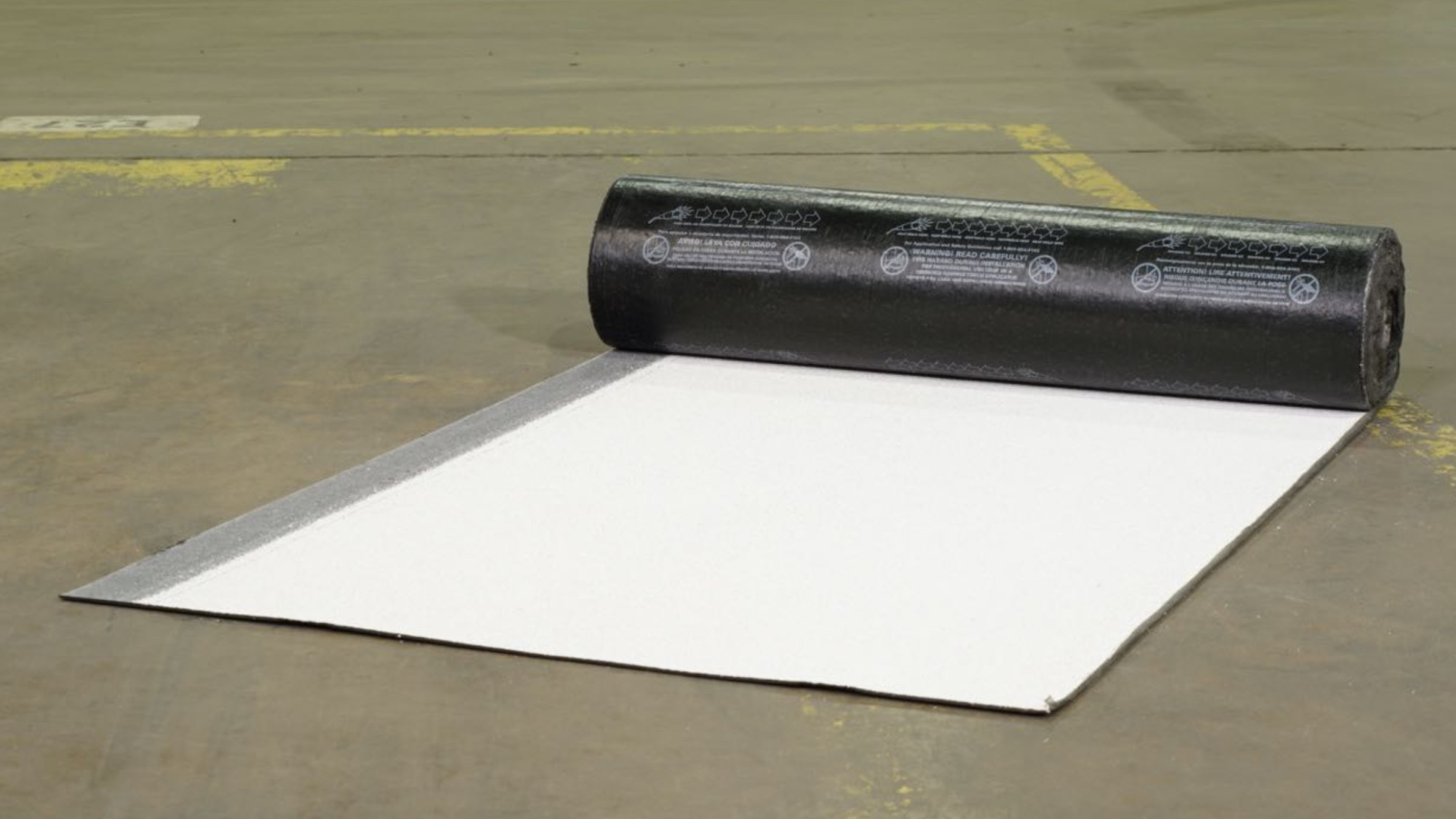

Fiber Glass-Reinforced, BUR Reflective Mineral-Surfaced, Cool Roof Cap or Flashing Sheet

Meets the requirements of ASTM D 3909

GlasKap CR G is intended to be used as a cap or flashing sheet in built up roofing systems.

Reflective Roofing Granules: Specifically engineered for high reflectivity, durability and optimal embedment in the BUR asphalt sheet.

High-Quality Asphalt Coating: Lends elasticity and flexibility to the sheet and provides waterproofing value.

Fiber Glass Reinforcement Mat: Low moisture, excellent dimensional stability and resistance to rot make it an ideal replacement for organic cap sheets.

Color: Reflective cool roof bright white roofing granules.


GLAWKAP-CR-G-700x4671
Available Documents

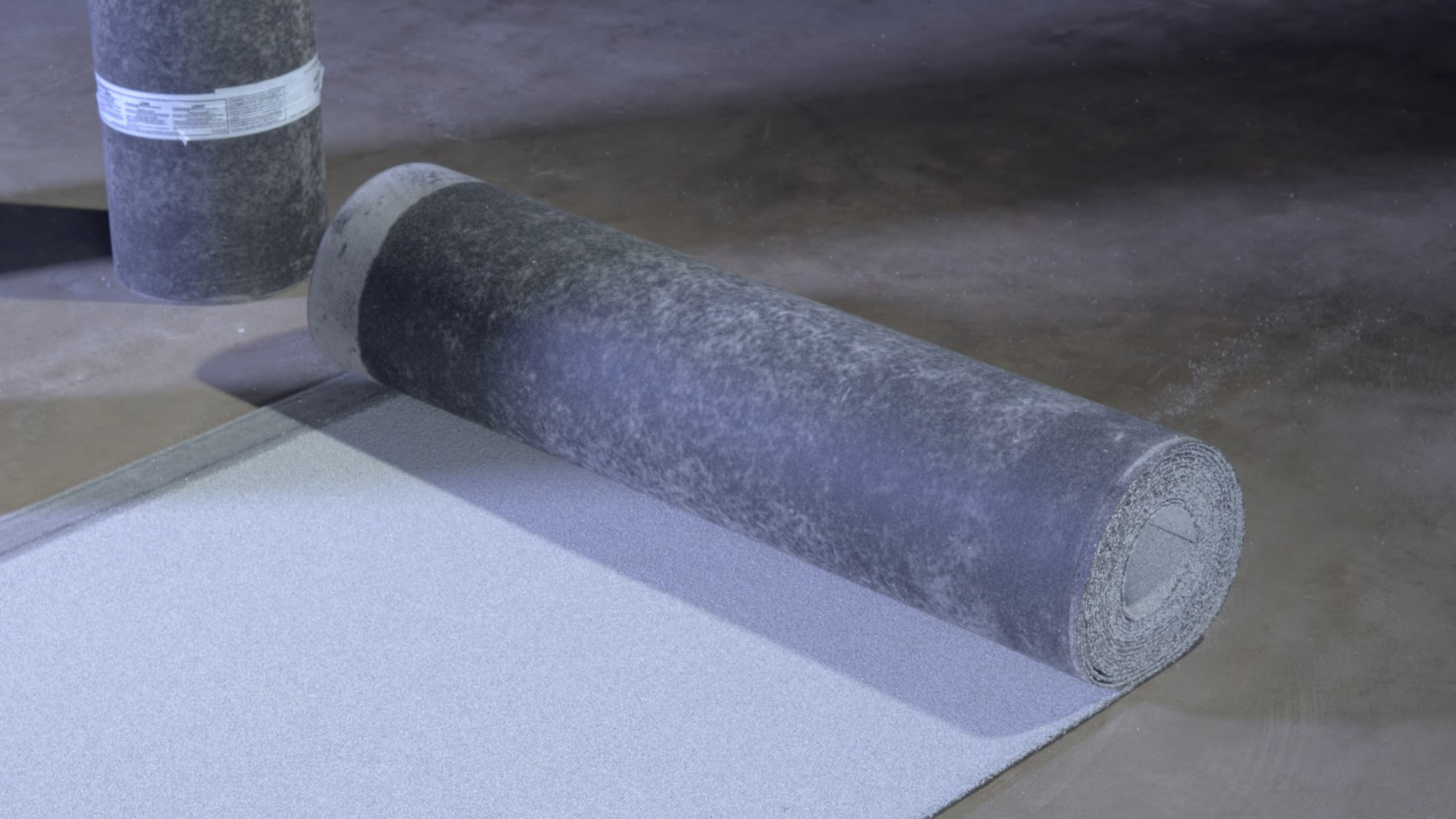

Fiber glass-reinforced, SBS modified bitumen, mineral-surfaced cap sheet.

Meets the requirements of ASTM D 3909

GlasKap Plus is used as a cap sheet in a variety of built up roofing systems.

SBS (Styrene-Butadiene-Styrene) Synthetic Rubber and High Quality Asphalt Blend: Brings elasticity and flexibility to the sheet; lays flat virtually eliminating wrinkles resulting in fast, efficient applications. Provides better elongation and cold flexibility properties than traditional asphaltic cap sheets.

Fiber Glass Reinforcement Mat: Low moisture, excellent dimensional stability and resistance to rot make it an ideal replacement for organic cap sheets.

Ceramic-Coated Granules: Provide protection to the underlying bitumen and membrane, and have a low maintenance cost compared to roofs that use coatings.

Glascap-700x468
Available Documents

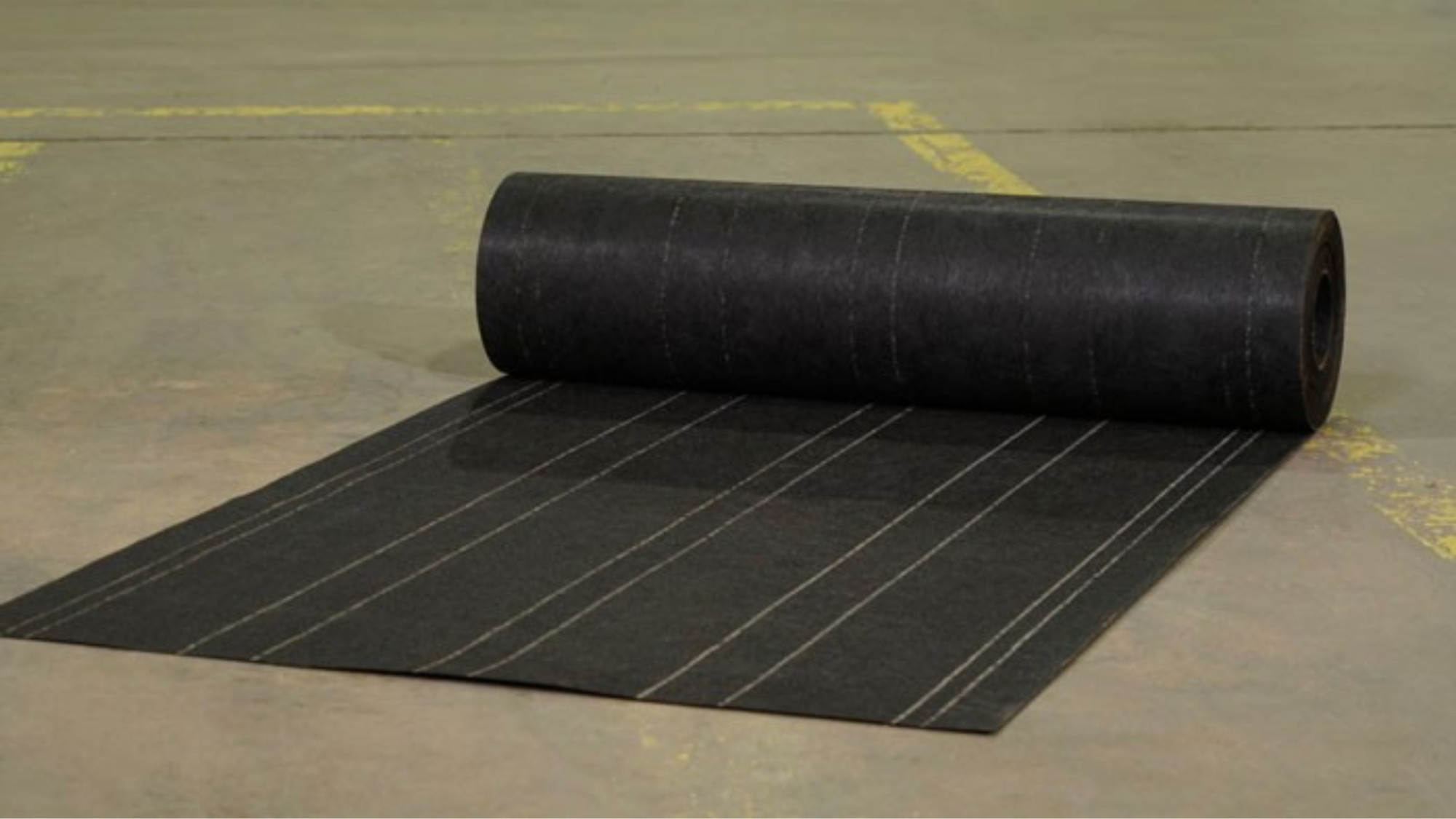

Fiber glass-reinforced, asphalt-coated ply sheet IV.

Material meets the requirements of ASTM D 2178, Type IV

GlasPly IV is intended for use as an interply in any built up roofing or modified bitumen roofing system.

Excellent Porosity: Easy to handle, lays flat, minimizes workmanshiprelated problems such as fishmouths, wrinkles and ridges. Allows the product to readily accept hot asphalt and disperses it throughout the entire felt, to stabilize asphalt after cooling.

Asphalt Impregnated, Fiber Glass Reinforcement Mat: Offers consistent tensile strength and tear resistance. Low moisture, excellent dimensional stability and resistance to rot make it an ideal replacement for organic ply sheets. Provides a solid dimensionally stable substrate for other roofing membrane components.

Laying Lines: Before the product is wound into rolls, it is imprinted with laying lines on the top surface so the roofing mechanic can install the felt with the proper exposure and provide the correct number of plies.

Surfacing: Liquid parting agent eliminates sticking when the felt is unrolled.

GlasPly-IV-700x468
Available Documents

Premium fiber glass-reinforced, asphalt-coated ply sheet VI.

Material meets the requirements of ASTM D 2178, Type VI

GlasPly Premier is intended for use as an interply in any built up roofing or modified bitumen roofing system.

Excellent Porosity: Allows the product to readily accept hot asphalt and disperse it throughout the entire felt, to stabilize the asphalt after cooling.

Asphalt Impregnated, Fiber Glass Reinforcement Mat: Delivers high tensile strength to resist splitting that can be caused by rooftop stresses. Low moisture, excellent dimensional stability and resistance to rot make it an ideal replacement for organic ply sheets. Provides a solid dimensionally stable substrate for other roofing membrane components.

Laying Lines: Before the product is wound into rolls, it is imprinted with laying lines on the top surface so the roofing mechanic can install the felt with the proper exposure and provide the correct number of plies

Surfacing: Liquid parting agent eliminates sticking when the felt is unrolled.

GlasPly-Premiere-700x548

Albuquerque High School: Creative After-school Activities Go to the Roof

Solano County Government Center County Administration Building

Dura-Bar Heavy Industrial Manufacturing Facility

Available Documents

Polyester/fiber glass-reinforced, asphalt-coated base, ply or flashing sheet.

Meets the requirements of ASTM D 4601, Type II

GlasTite Flexible is intended to be used as a base sheet, ply sheet, or flashing membrane in built up roofing systems.

Fiber Glass/Polyester Composite Reinforcement Mat: Provides superior flexibility and conformability, making it easy and quick to install. Exceptionally high tensile strength delivers superior protection against splitting as well as excellent puncture and tear resistance to prevent damage often caused by rooftop traffic.

Ideal for Flashing Systems: Superior flexibility and conformability allows the mechanics to easily and quickly install tight flashing systems and make it ideal for all roof terminations, including parapet walls, skylights, roof penetrations, drains, vents and roof edges. GlasTite Flexible does not bridge at the cant and will not pull away from the substrate after it has been installed.

Laying Lines: Laying lines are imprinted on the top surface so the roofing mechanic can install the felt with the proper exposure and provide the correct number of plies.

Surfacing: Fine mineral parting agent

GlasPly-IV-700x468
Available Documents

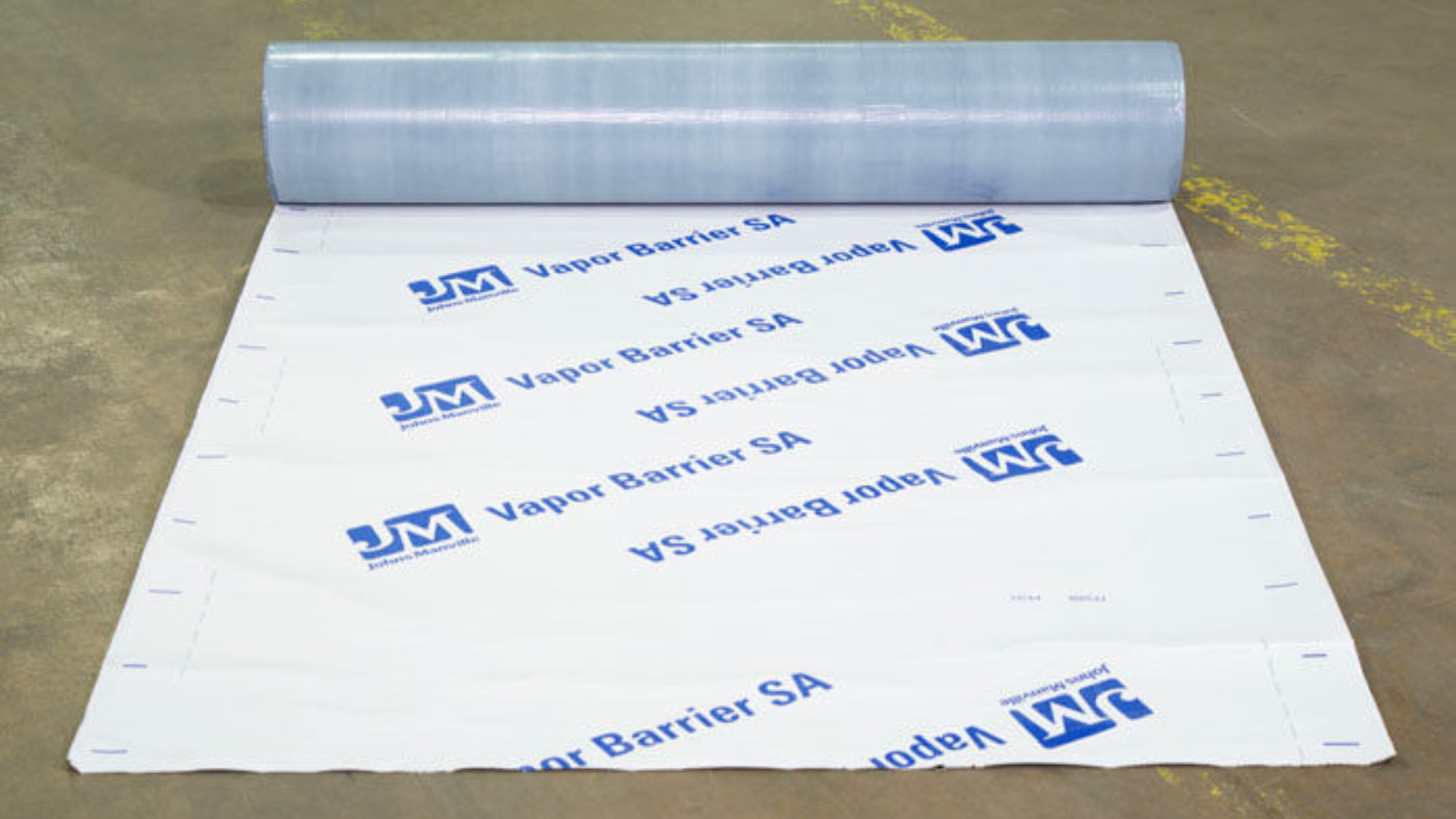

Polyethylene-reinforced, self-adhering SBS vapor barrier.

Tri-laminate woven polyethylene, nonslip, UV-protected top surface: Provides temporary weather protection for 90 days. Provides high tensile strength and puncture resistance.

Self-sealing, high-quality SBS rubber and asphalt blend: Provides low air and vapor permeability.

Silicone release film: Allows for ease of self-adhering installation.

Installation Guides

JM Vapor Barrier SA Installation Guide

Available Documents

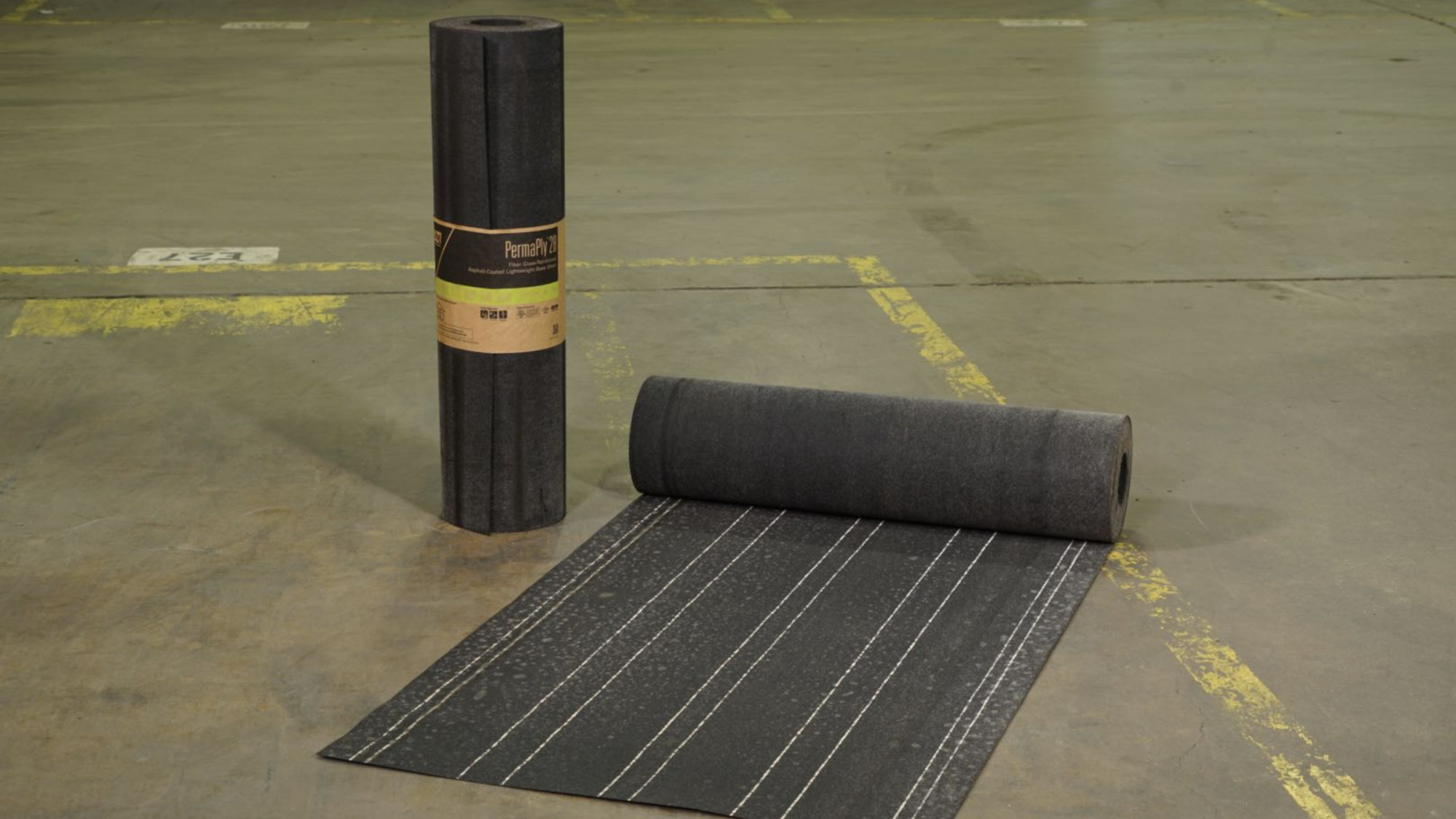

Fiber glass-reinforced, asphalt-coated lightweight base sheet.

Material meets the requirements of ASTM D 4601, Type II

PermaPly 28 is designed for use as the first or base sheet in built up roofing or modified bitumen roof assemblies.

Lightweight: Exceptionally pliable, easy to handle and lays flat.

Asphalt Coating: Makes it suitable as an intermediate or ply felt in cold-applied built-up and modified bitumen roof assemblies.

Ideal for Mechanical Attachment: Use where mechanical attachment of the membrane to the roof substrate or deck is desired.

Fiber Glass Reinforcement Mat: Low moisture, excellent dimensional stability and resistance to rot make it an ideal replacement for organic base or ply sheets. Provides a solid dimensionally stable substrate for other roofing membrane components.

Laying Lines: Laying lines are imprinted on the top surface so the roofing mechanic can install the felt with the proper exposure and provide the correct number of plies.

Surfacing: Fine mineral parting agent.

PermaPLy-700x468
Available Documents

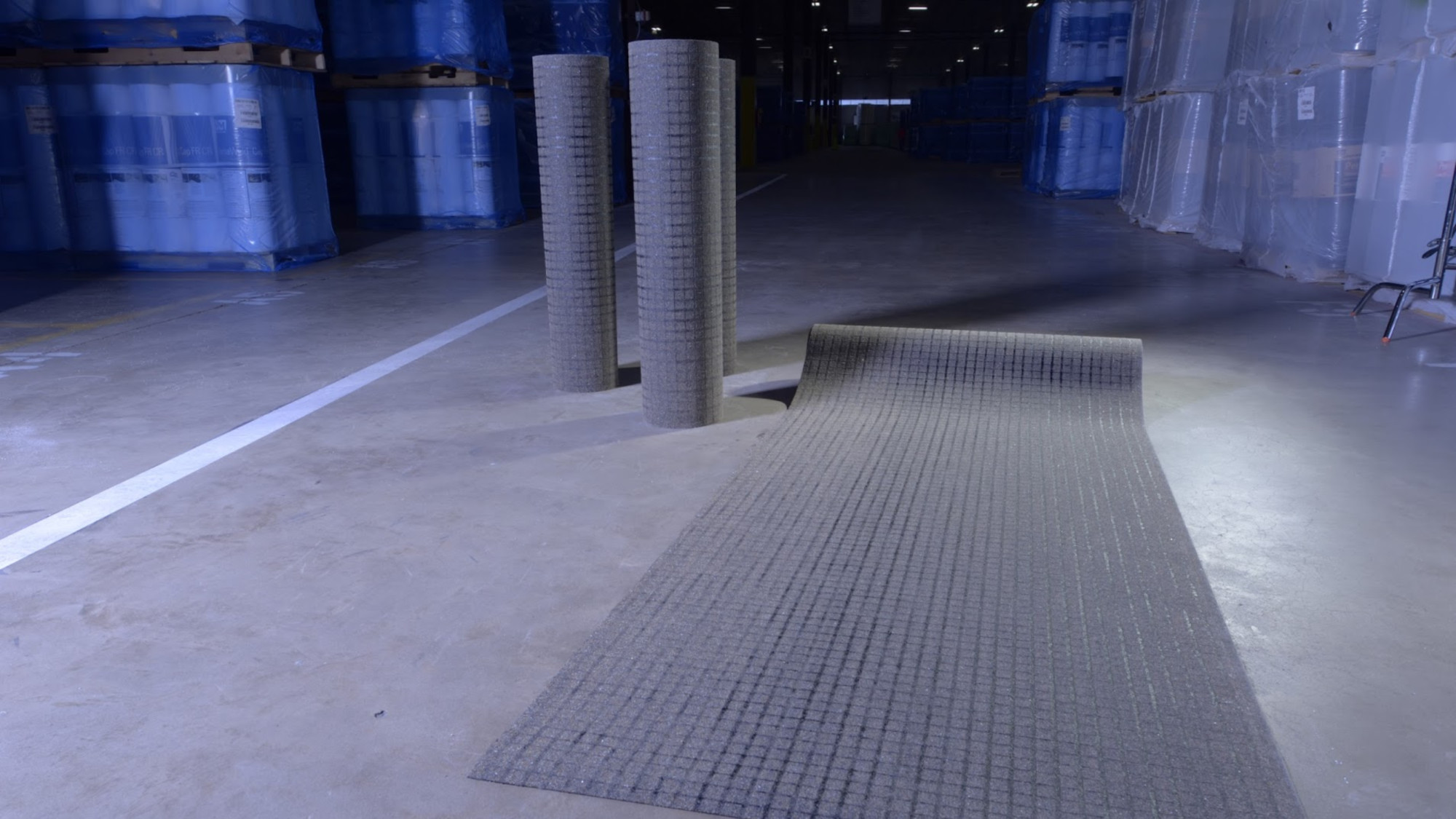

Fiber glass-reinforced, asphalt-coated venting base sheet.

Material meets the requirements of ASTM D 4897, Type II

Ventsulation Felt may be used as a base sheet for any built up roofing or modified bitumen roofing system to be installed over a substrate that potentially contains moisture.

1" Embossed Waffle Pattern Grid Channels: Promotes moisture vapor venting. Helps prevent blistering of asphalt-based roofs when installed over potential moisture-containing substrates such as: Re-covers over existing roof membranes, lightweight insulating fill or gypsum decks.

Fiber Glass Reinforcement Mat: Low moisture, excellent dimensional stability and resistance to rot make it an ideal replacement for organic base sheets. Provides a solid dimensionally stable substrate for other roofing membrane components.

Surfacing: Coarse minerals on one side.

Vensulation-700x531
Available Documents

Reflective Roofing Granules: Bright white granules specifically designed for high reflectivity and durability.

Reflective Roofing Granules: Bright white granules specifically designed for high reflectivity and durability.

Color: Bright White

Lightroom (20140919_JM_SBSCR_Details-023.nef and 57 others)
Available Documents

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the bitumen. These granules are colored with durable pigments, bonded in a ceramic matrix and treated to promote excellent long-term adhesion.

Ceramic-Coated Roofing Granules: Specifically engineered for optimal embedment in the bitumen. These granules are colored with durable pigments, bonded in a ceramic matrix and treated to promote excellent long-term adhesion.

Colors: White

Roofing-Granules-700x464
Available Documents

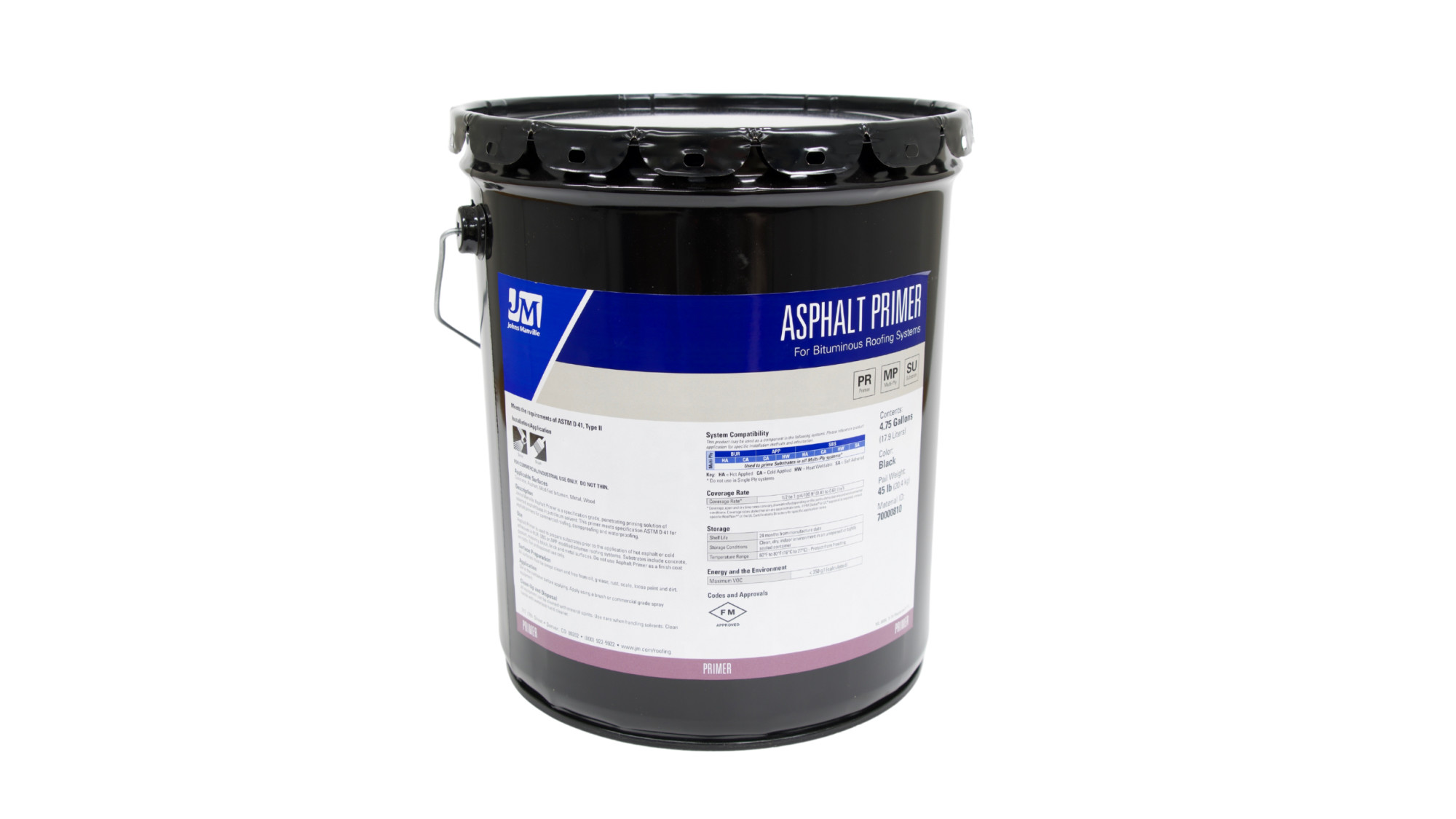

One-part, specification grade, penetrating priming solution for multiple substrates prior to the application of a bituminous roofing system.

Meets the requirements of ASTM D 41, Type II

Use: Used to prepare substrates prior to the application of hot asphalt or cold adhesives in BUR, SBS and APP modified bitumen roofing systems. Do not use Asphalt Primer as a finish coat on roofs.

Type: One-part, specification grade, penetrating priming solution.

Substrates: Compatible with concrete; gypsum; masonry; block; brick; and metal surfaces.

Color: Black Features: Low VOC and sprayable.

Asphalt-Primer-700x467
Available Documents

One-part, asphalt-based, trowel-grade mastic for use in flashing details for bituminous roofing systems.

Use: To adhere both vertical and horizontal roof flashing surfaces. Useful for repairing leaks in metal, shingles, concrete, flashings, gutters, around chimneys, flues, soil pipes, drains, eaves, cornices and roof perimeters.

Type: One-part, low VOC, asphalt-based trowel-grade mastic.

Features: Maintains bond during varying temperatures and weather conditions, and bonds to dissimilar materials. Excellent Durability. Remains Flexible Over Time.

Color: Black

Available Documents

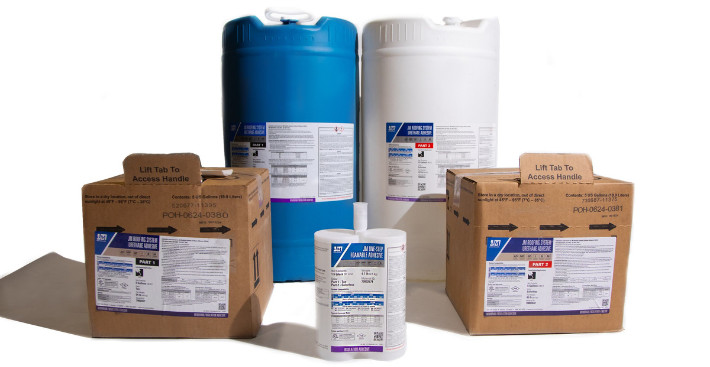

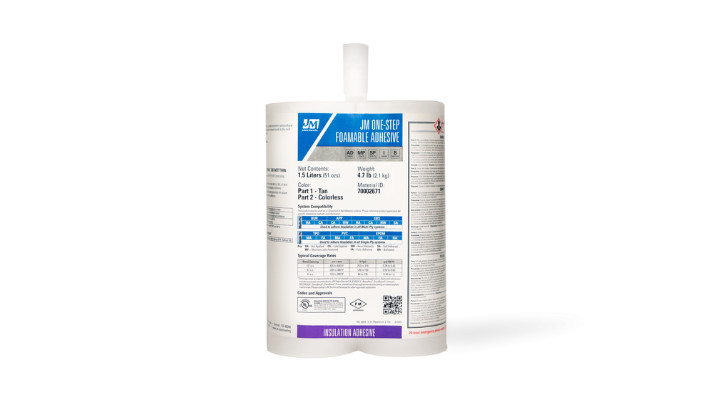

Polyurethane adhesive for attaching insulation/cover boards to the roof deck or other insulation boards.

Use: JM One-Step Foamable Adhesive is a two-component polyurethane adhesive used for attaching insulation or cover boards to the roof deck or to other insulation boards.

Type: Two-part, cold application insulation adhesive.

Substrates: Compatible with the following insulations, cover boards, and substrates1 : polyisocyanurate; HD wood fiber; perlite; Invinsa® Roof Board; gypsum; concrete2
(Lightweight structural, poured-in-place structural, precast, and insulating); treated plywood (5/8" [1.58 cm] min. thickness); cementitious wood fiber plank; base sheets; gypsum; and some existing smooth-surfaced asphalt (per inspection).
1. Ensure that all insulation boards are 4' x 4' or smaller.
2. Drying time of 28 days required

Color: Part 1 - Tan, Part 2 - Colorless

Features: Solvent free. Set boards immediately into adhesive; reduces installation time and maximizes adhesive footprint. No hoses or pumps required. Always on ratio, eliminates guesswork.

JM-One-Step-Foamable-Adhesive 700x588

Installation Guides

Application Instructions for Board Stock Attachment with JM One-Step Foamable Adhesive

Available Documents

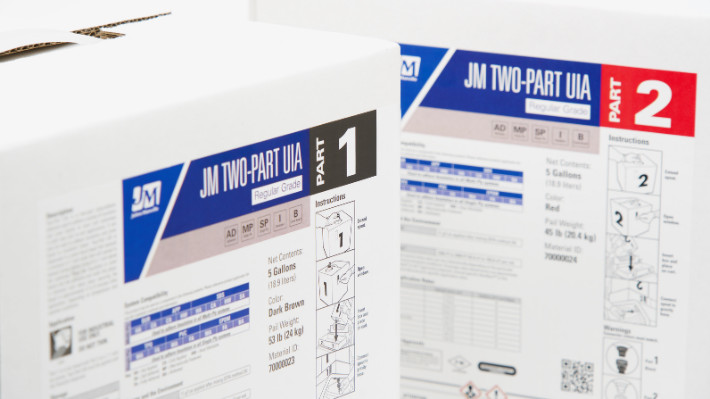

Two-part polyurethane adhesive.

Use: JM Roofing System Urethane Adhesive is a two-component polyurethane adhesive used for attaching fleece-backed single ply membranes to insulation boards or various deck types as well as insulation boards to the roof deck or to other insulation boards.

Type: Two-part, cold application insulation adhesive.

Substrates: Compatible with the following insulations, cover boards, and substrates1 : polyisocyanurate; HD wood fiber; perlite; Invinsa® Roof Board; gypsum; concrete2 (Lightweight structural, poured-in-place structural, precast, and insulating); treated plywood (5/8" [1.58 cm] min. thickness); cementitious wood fiber; gypsum; smooth or granulated BUR, APP or SBS.
1. Ensure that all insulation boards are 4' x 4' or smaller.
2. Drying time of 28 days required

Color: Part 1 - Tan, Part 2 - Colorless

Features: Solvent free, and HCFC or CFC free. Universal adhesive for adhering fleece-backed membranes and insulation boards. Sets in minutes.

JM-ROOFING-SYSTEM-URETHANE-ADHESIVE

installation guides

Installation Instructions for JM Roofing Systems Urethane Adhesive (RSUA)

Available Documents

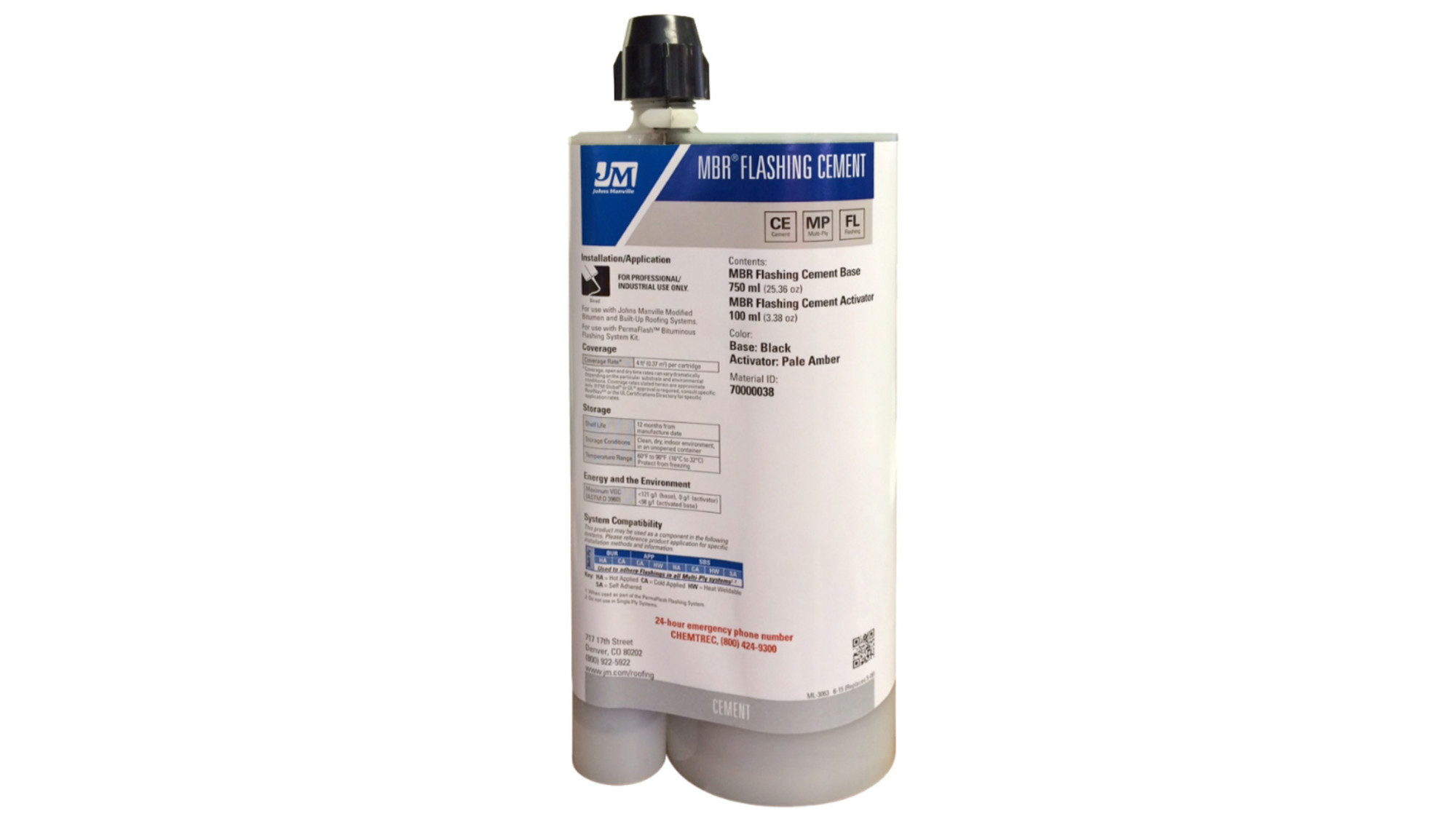

Liquid-applied flashing material for bituminous systems and the PermaFlash™ Bituminous Flashing System.

Use: For use with JM BUR and SBS membrane products. It is part of the JM PermaFlash® Bituminous Flashing System for penetrations and other details. Ideal for areas where hot asphalt is prohibited, not desirable or not practical.

Type: Two-part, elastomeric, liquid-applied flashing material.

Color: Black

Features: Cures to a durable, elastomeric film and forms exceptional bonds between the modified bitumen and underlying substrate. Resists virtually all factors affecting base flashing performance while providing superior flexibility and durability. UV stable, high solids, low odor, VOC compliant.

MBR-FLASHING-CEMENT-700x567
Available Documents

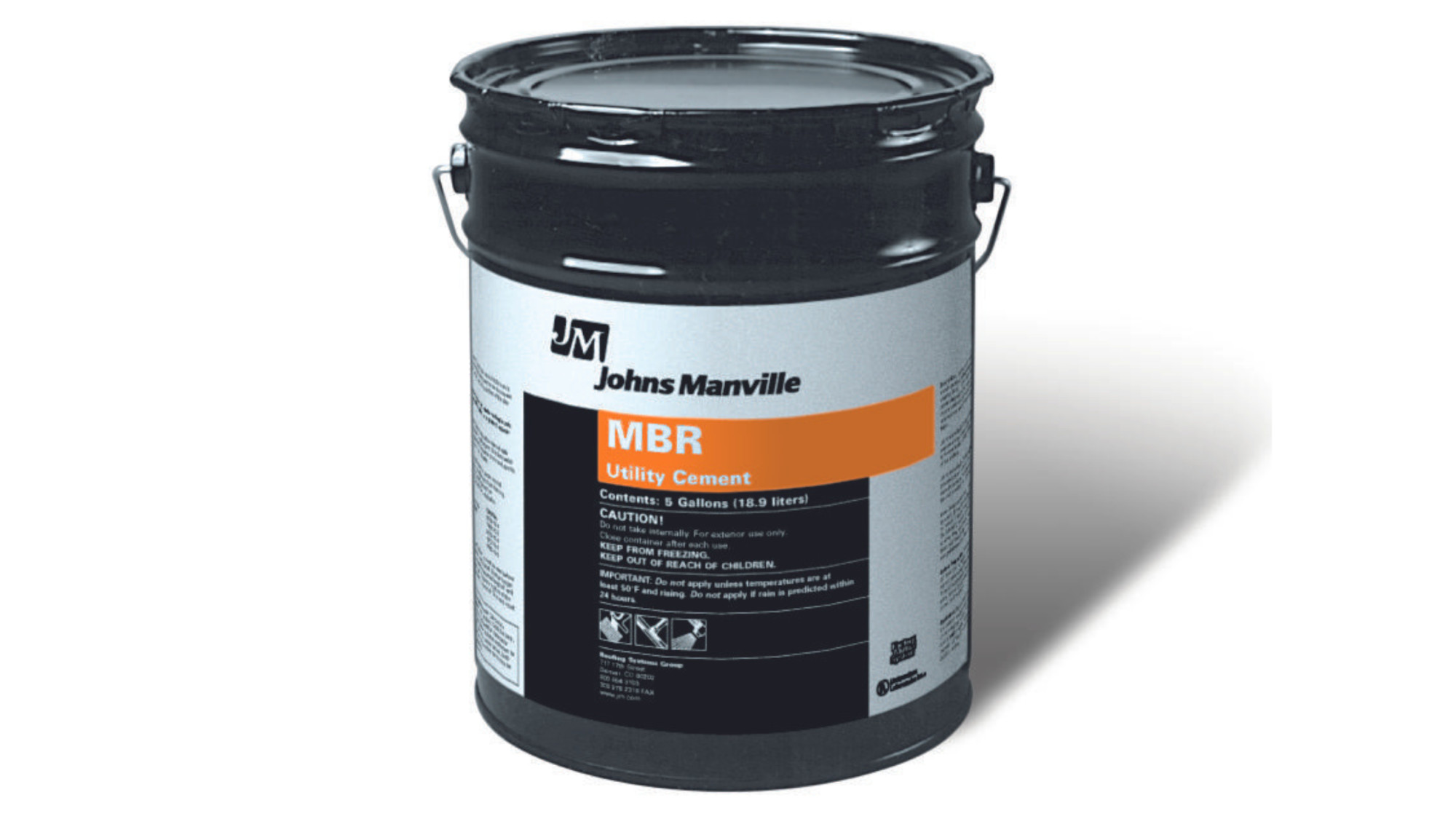

One-part, asphalt-based, trowel-grade mastic for use in flashing details for bituminous roofing systems.

Use: As a substitute for asphalt and MBR® Flashing Cement in JM modified bitumen flashing details, and can be used to adhere the JM modified bitumen flashing systems and built-up roofing felts to vertical surfaces, as a general purpose mastic on most built up roofing and modified bitumen flashing details, or to strip in the laps of modified bitumen base flashings.

Type: One-part, asphalt-based, trowel-grade mastic.

Color: Black

Features: Cold process – does not have to be heated. Cures to form a durable, elastomeric and watertight film. Ready for use as shipped.

MBR-Utility-Cement-700x610
Available Documents

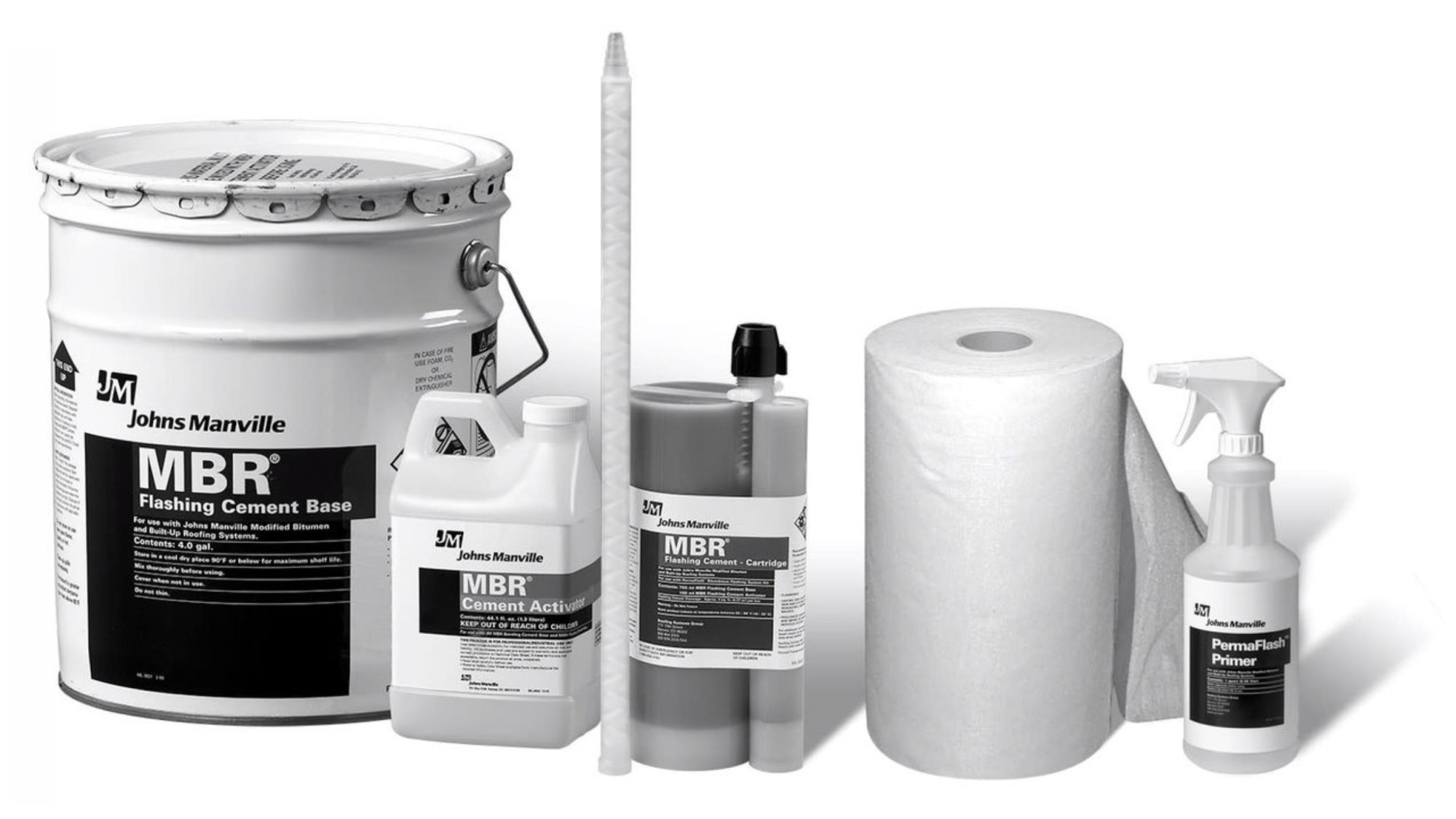

Liquid-applied system that can accommodate the most challenging penetration shapes.

The PermaFlash System consists of PermaFlash Primer, MBR Flashing Cement, and PermaFlash Scrim. It is an integrated flashing system specifically formulated for use in bituminous systems.

Features: Can be used to flash most penetrations, drains, and vertical surfaces.
Resists virtually all factors affecting flashing performance while providing superior flexibility and durability.
High solids, low odor, VOC compliant, and UV stable.

PermaFlash Primer (Low VOC): One-Part Solvent-Based Primer that improves adhesion of MBR® Flashing Cement to nonporous substrates.

MBR Flashing Cement: Two-part, liquid-applied flashing material that cures to a durable, elastomeric film. (Please see the MBR Flashing Cement data sheet for more information.)

PermaFlash Scrim: Flexible stitchbonded polyester scrim.

Colors:

  • Primer - Clear
  • Liquid Base - Black
  • Activator - Brown
  • Scrim - White
Permaflash-700x4181

Brochures

PermaFlash® Bituminous Flashing System Brochure

installation considerations

PermaFlash® Bituminous Flashing System Detail Instructions

PermaFlash® Bituminous Flashing System Penetration Flashing



Available Documents

One-part, acrylic reflective coating (in white or tan) for bituminous roof systems.

Use: As a reflective top coat over a variety of substrates, including smooth or mineral surfaced asphalt-based systems, single ply and metal roofing.

Type: One-part acrylic elastomeric roof coating.

Colors: White, Tan

Features: Asphalt bleed blocking. 100% acrylic durability. Energy savings. Prolonged roof life. Reduced life cycle costs.

TopGard-4000-700x530
Available Documents

One-part, acrylic reflective coating (in white or tan) for bituminous or EPDM roof systems.

Meets the requirements of ASTM D 6083

Use: As a reflective top coat over a variety of substrates, including smooth or mineral surfaced asphalt-based systems, single ply and metal roofs.

Type: One-part acrylic elastomeric roof coating.

Color: White, Tan

Features: 100% acrylic durability. Energy savings. Prolonged roof life. Reduced life cycle costs. Ideal for all climates, especially cold climates where temperatures may drop below 0F.

TopGard-5000-700x577

Case Studies

Solano County Government Center County Administration Building

Available Documents

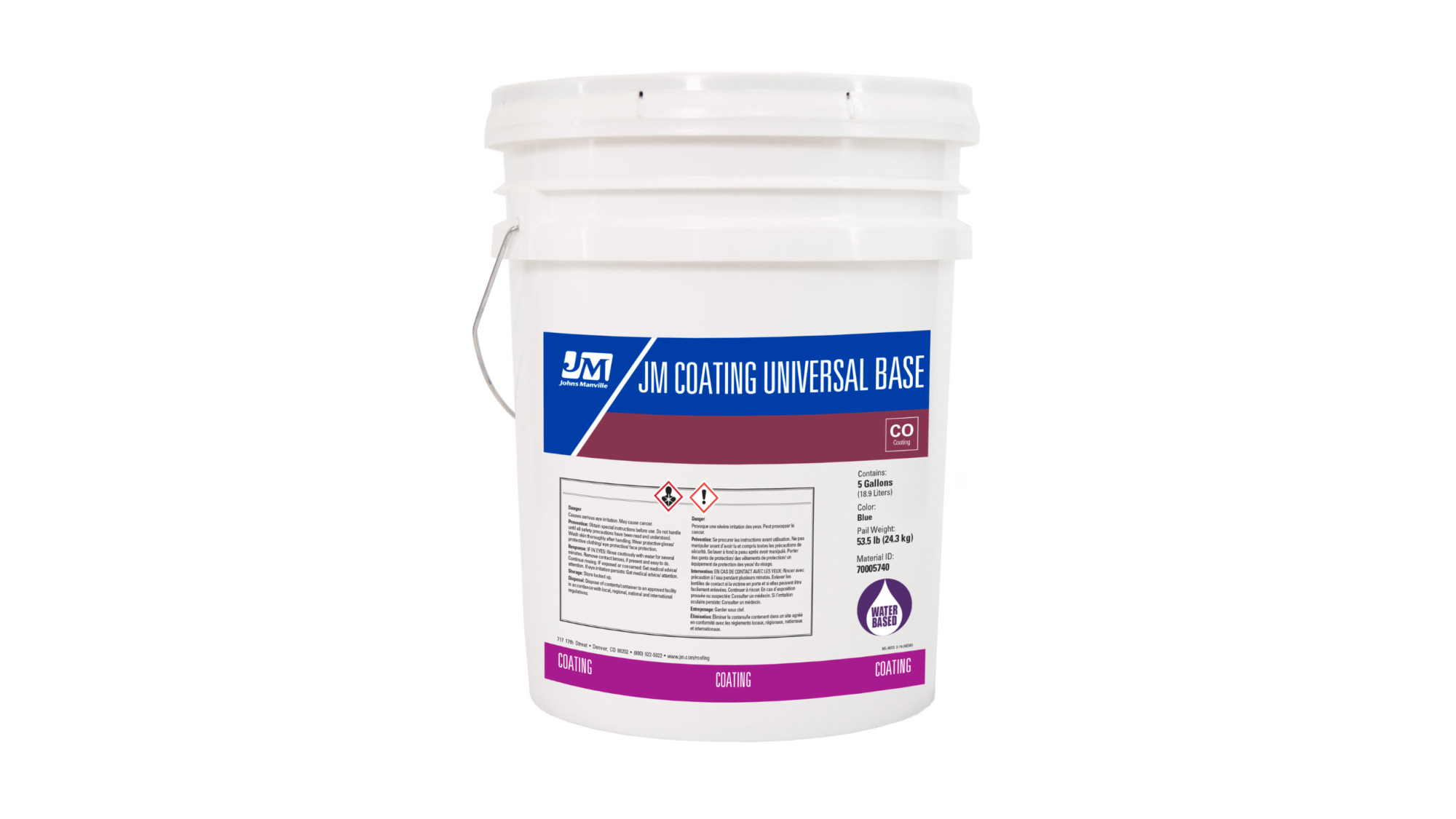

One-part, acrylic base coating (for TopGard® 4000 or 5000) that acts as an oil-bleed barrier for bituminous systems.

Use: TopGard Base Coat is used over a variety of substrates, including smooth and mineral surfaced asphalt-based roofing systems and single ply. It provides outstanding bleed-blocking over hot asphalt, asphalt emulsion systems, and both modified and built-up roofing systems. TopGard Base Coat must be used as a base coat in concert with TopGard 4000 or TopGard 5000.

Type: One-part acrylic elastomeric base coating.

Color: Buff

Features: Can be used within 24 hours of roof membrane installation. Guaranteed to withstand ponding water up to 7 days when product is properly installed and cured. Prolonged roof life and reduced life cycle costs. Renewable.

TopGard-Base-Coat-700x549

Case Studies

Solano County Government Center County Administration Building

Available Documents

One-part, reflective, asphalt emulsion roof coating with aluminum flakes and reinforcing fibers for bituminous roofing systems.

Meets the requirements of ASTM D 6848, Type IV (Asbestos Free)

Use: As a reflective coating for smooth-surfaced built-up roofs, and can provide a UL® Class A rating in certain constructions*.

Type: One-part roof coating that is a combination of aluminum flakes and non-asbestos reinforcing fibers suspended in an emulsified asphalt.

Substrates: Built up, SBS and APP modified Bitumen roofs, metal, concrete, stucco and masonry.

Color: Black (dries to a reflective silver color)

Features: Provides a layer of weathering asphalt and excellent reflectivity in a noncombustible roof surfacing.

TopGard Type A
Available Documents

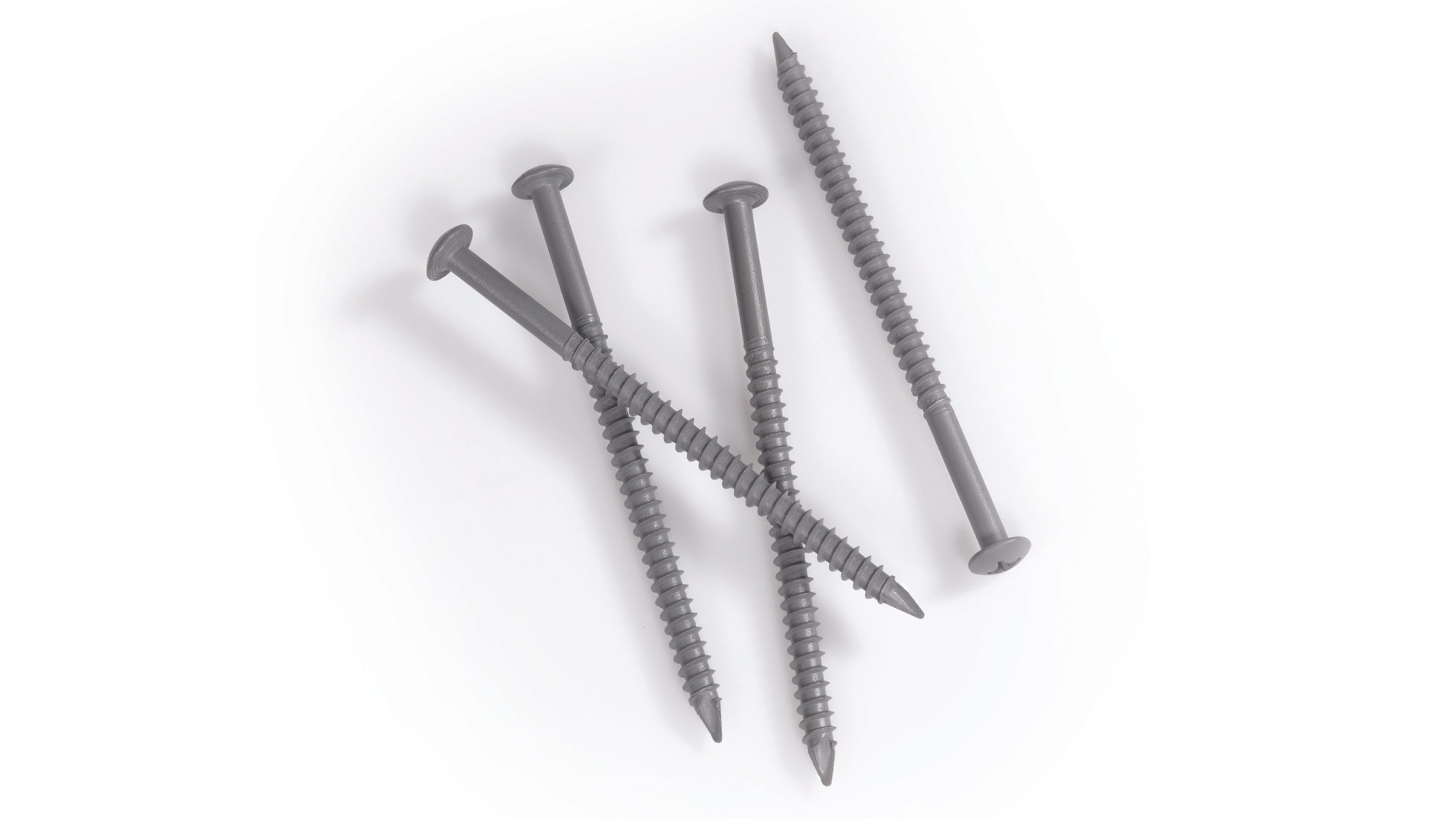

#14 case-hardened steel insulation and membrane fastener with a #3 Phillips head.

All Purpose Fasteners are #14 case-hardened steel fasteners with a #3 Phillips head. The point is designed for quick installation in new or re-roof applications.

Use: Membranes and Insulation
Material: Case-hardened steel
Gauge: #14
Head: #3 Phillips head
Color: Grey
Deck Types: Wood, Concrete, and 18 - 24 gauge (1.25 mm - 0.56 mm) Metal.

Plate Compatibility*
• UltraFast® Locking Plastic Plates
• UltraFast® Metal Plates
• High Load Plates (not pictured)
• APB Plates (not pictured)
• RhinoPlate (concrete decks)


* See corresponding data sheets for information regarding UltraFast, High Load, and APB Plates.

All Purpose Fasteners 142x87

Selector Guides

Fastener and Plates Selector Guide

Available Documents

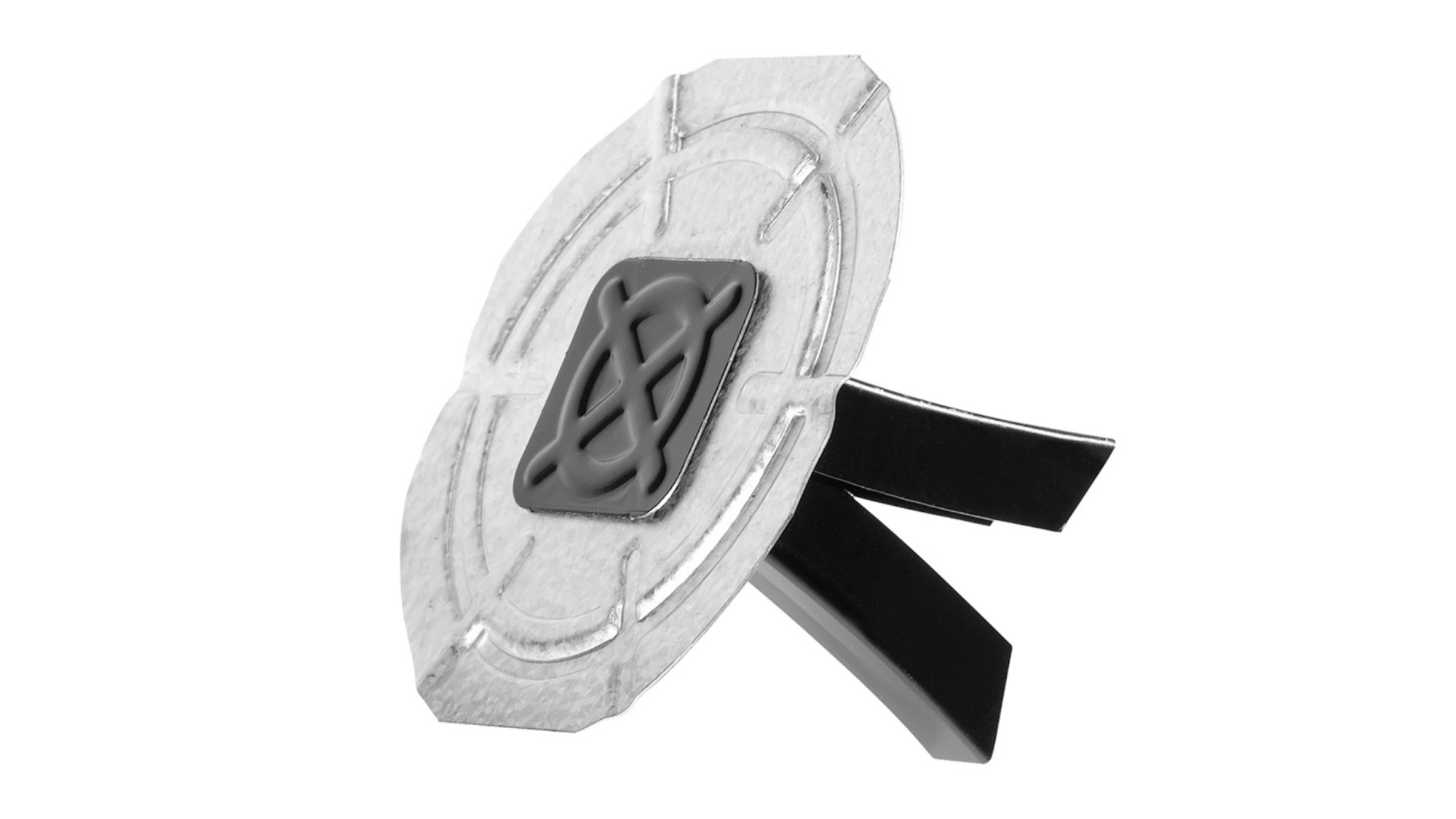

Expanding base sheet fasteners with GALVALUME®-coated steel plates.

LWC Pre-Assembled Base Sheet Fasteners are twin-legged, expanding base sheet fasteners with 2.7" (6.9 cm) Galvalume®*- coated steel plates.

Use: Base Sheets

Fastener: Twin-Legged Steel

Plate: Galvalume-Coated Steel

Color: Black (fasteners), Grey (plates)

Deck Type: Lightweight insulating concrete roof decks, with minimum thickness of 1.25" (3.18 cm), and 1.25" (3.18 cm) for gypsum decks.

* Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers.

SELECTOR GUIDES

Fasteners and Plates Selector Guide

Available Documents

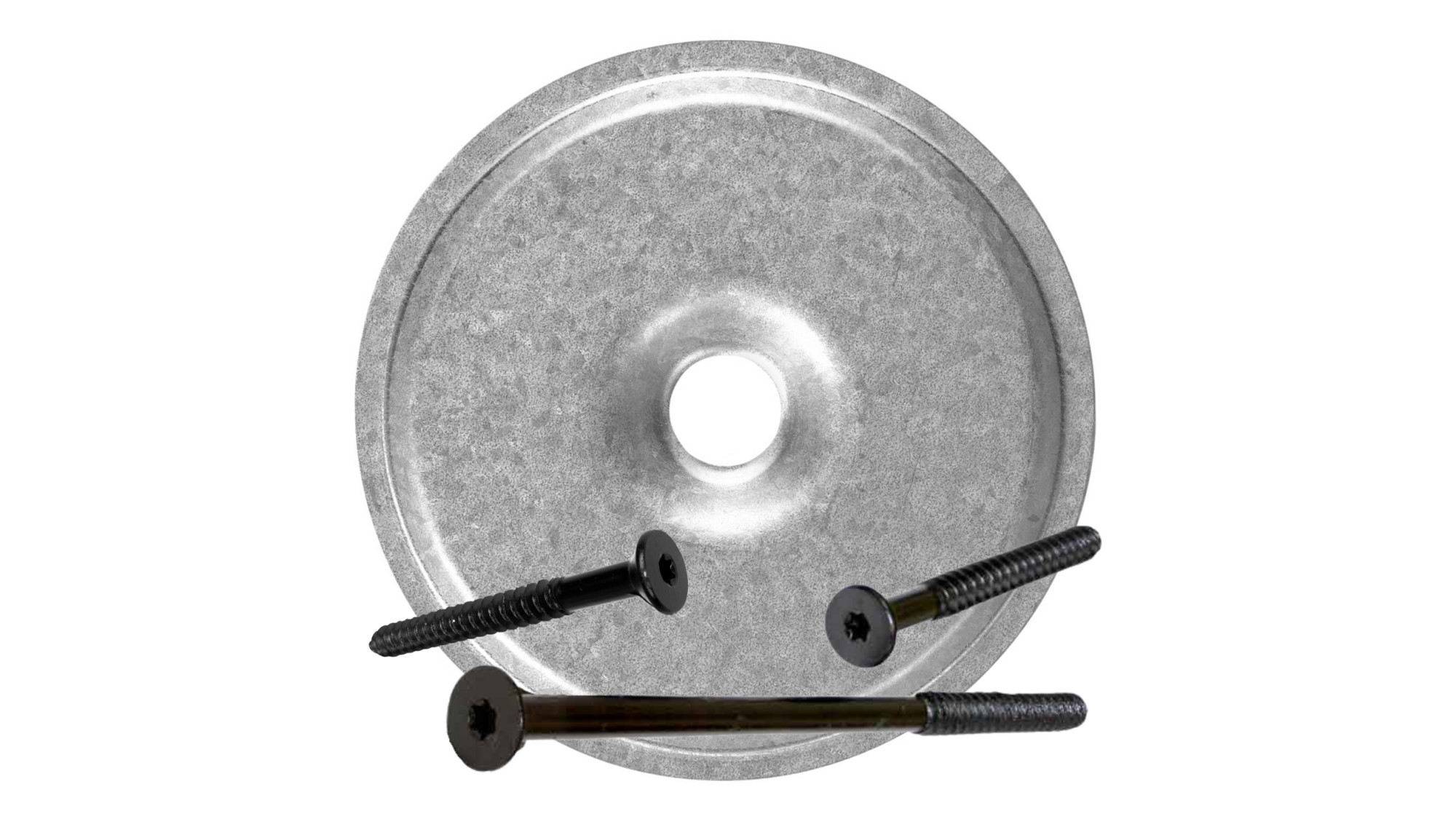

Insulation Fasteners and plates.

Lite-Deck Fasteners are available in lengths from 2 5/8” to 12" (67 mm to 305 mm), come with a square drive and offer coarse thread to provide high pullout resistance.

Lite-Deck plates are 3" (76 mm) round, Galvalume®*-coated plates for use with Lite-Deck Fasteners.

Use: Insulation

Fastener: Steel

Head: #3 Square Drive

Plate: 3" (76 mm) Galvalume-Coated Steel - Round

Color: Black (fasteners) Grey (plates)

Deck Type: Gypsum, and Cementitious Wood Fiber

* Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers.

lite deck Fasteners Image A 447x339

SELECTOR GUIDES

Fasteners and Plates Selector Guide

Available Documents

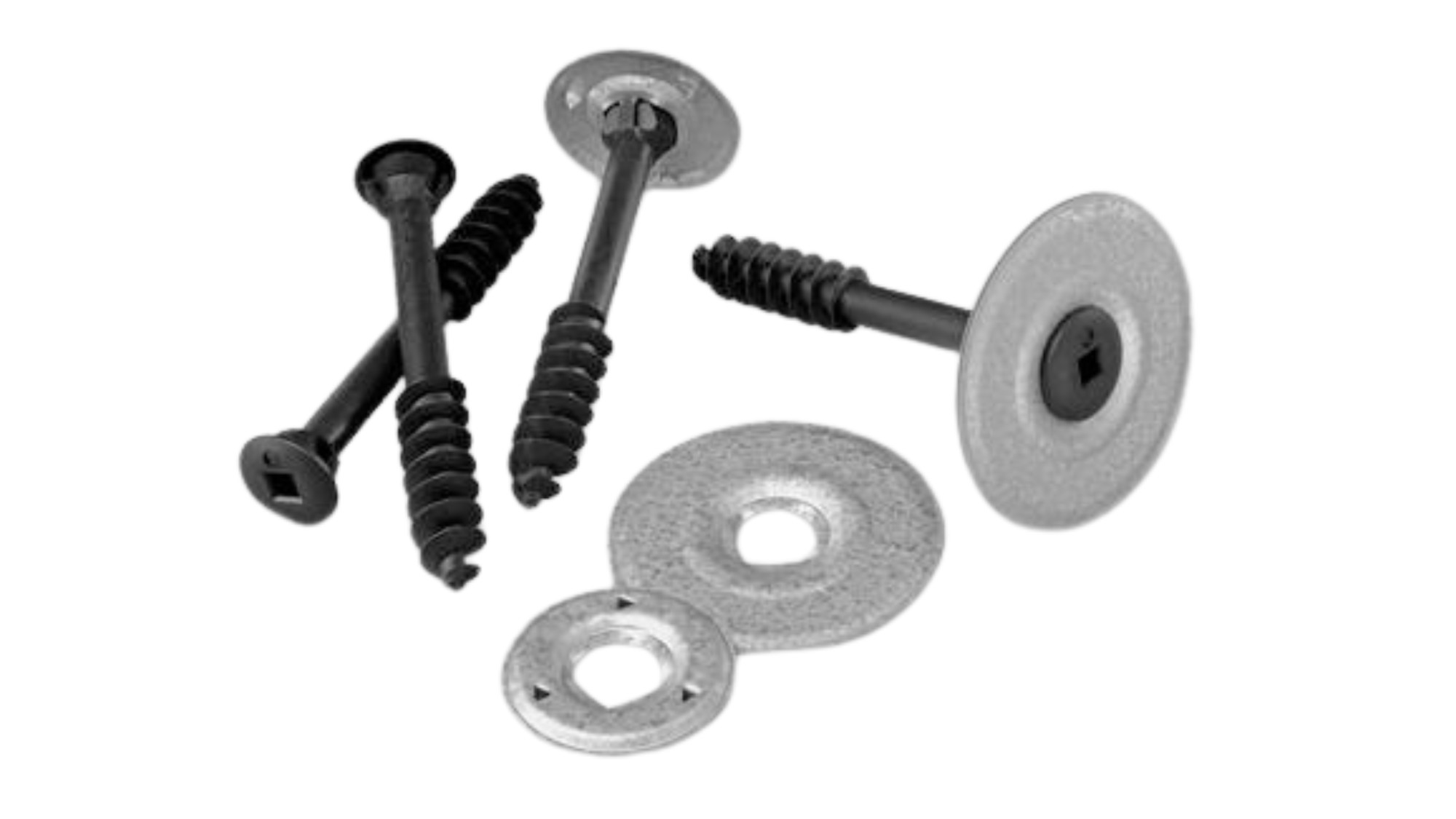

Solid glass-reinforced nylon membrane and insulation fasteners.

Polymer Auger Fasteners are glass-reinforced nylon fasteners with an internal ¼" (6 mm) square drive. Polymer Auger Fasteners have a 1" (2.5 cm) diameter head.

Polymer Auger Fasteners are available with Galvalume®*-coated, metal stress plates, designed to lock into the fastener head.

Use: Insulation and Membranes

Material: Fasteners - Polymer
                 Plates - Galvalume-Coated Steel

Gauge: 0.675" Diameter Screw

Head: 1" (2.5 cm) Diameter, ¼" (6 mm) Square Drive

Plates: 2" (5.1 cm) or 3" (7.6 cm) Round

Color: Black (fasteners), Grey (plates)

Deck Types: Cementitious Wood Fiber or Gypsum

* Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers.

METAL DECK SPECIALTY ATTACHMENT

SELECTOR GUIDES

Fasteners and Plates Selector Guide

Available Documents

Diamond point, nonthreaded carbon steel insulation and membrane fastener.

Structural Concrete Deck Fasteners are diamond point, non-threaded fasteners for hammer-in installation of insulation and single ply membranes to structural concrete. These carbon steel fasteners have a corrosion-resistant coating.

Use: Insulation and Membranes

Material: Diamond Point, Corrosion-Resistant Coated Carbon Steel

Head: Flat

Color: Black

Deck Type: Structural Concrete

Plate Compatibility*

  • UltraFast® Flat-Bottom, Metal Plates
  • APB Plates
  • High Load Plates

* See corresponding data sheets for information regarding UltraFast, APB and High Load Plates.

Structural-Concrete-Fasteners-and-Plates-700x774

SELECTOR GUIDES

Fasteners and Plates Selector Guide

Available Documents

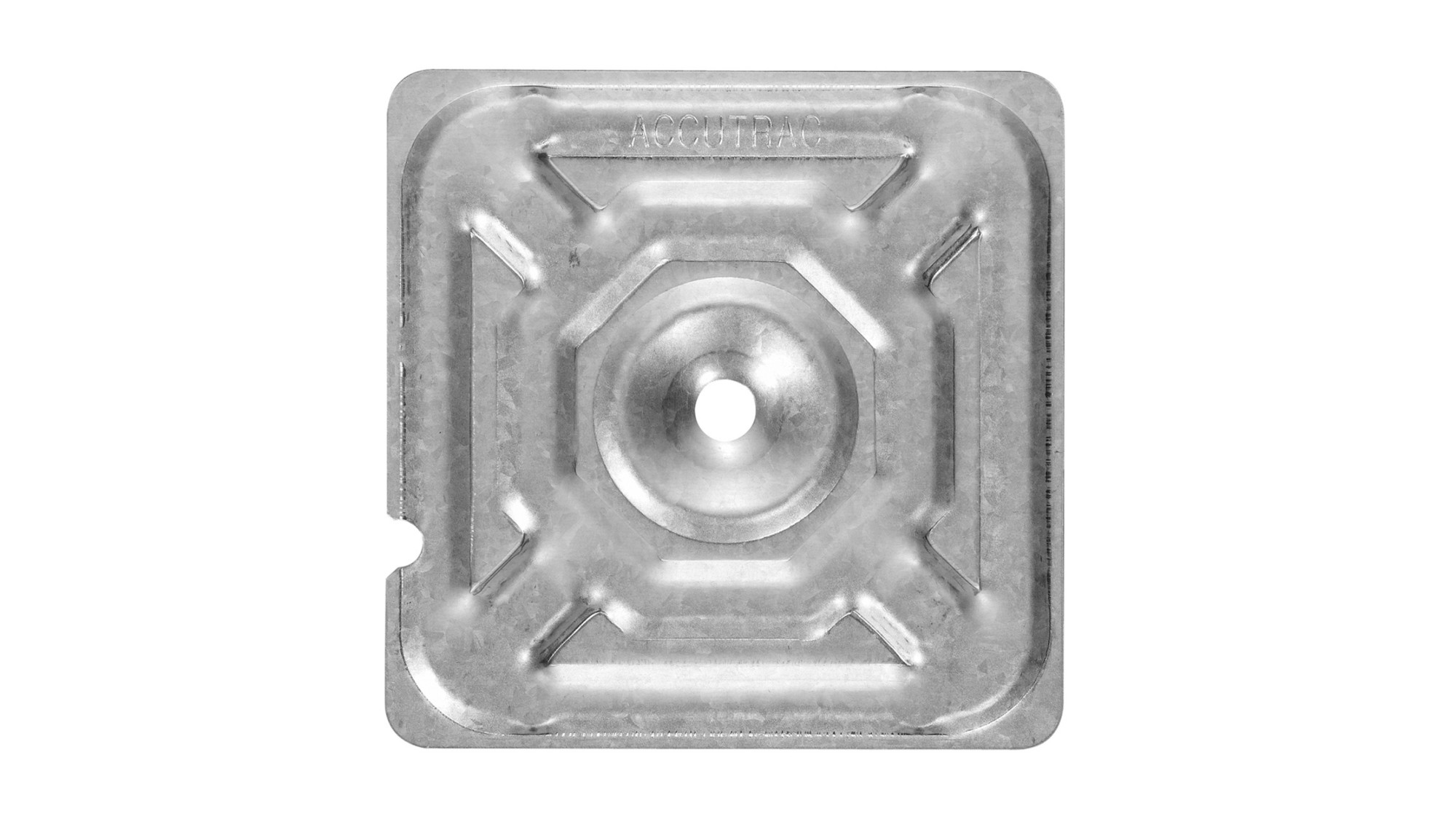

Insulation fastening system.

The UltraFast AccuTrac Fastener and Plate System utilizes the standard UltraFast Fastener and the UltraFast Accutrac, recessed or flat bottomed, square plate. The AccuTrac tool positions the plate and installs fasteners 15⁄8" - 6" (4.13 cm - 15.24 cm) in a one-step process. Consistent vertical alignment of fasteners ensures maximum thread engagement and pullout performance.

Use: Membranes

Material: Fasteners - Case-Hardened Steel
                Plates - Galvalume®*-Coated Steel

Gauge: #12

Head: #3 Phillips Head

Plate: UltraFast AccuTrac™ - 3" (7.62 cm) Square**

Color: Blue (fasteners), Grey (plates)

Deck Type: Wood or 18 - 24 gauge (1.25 mm - 0.51 mm) Metal.

*Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers.

**Standard UltraFast Plates are not compatible with this system.

Ultrafast-Accutrac-Fastener-&-Plate-System-700x8071

SELECTOR GUIDES

Fasteners and Plates Selector Guide

Available Documents

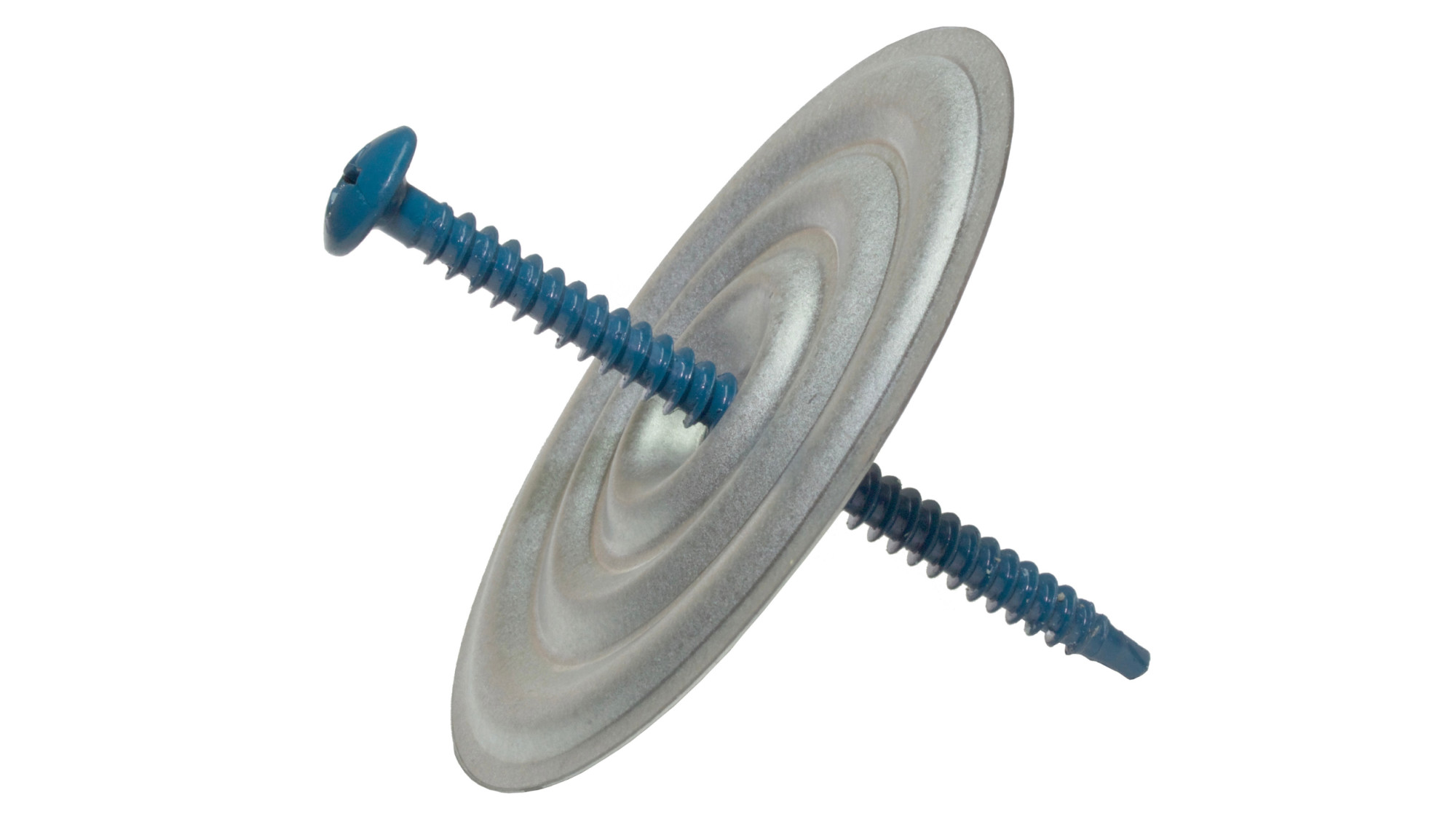

#12, case-hardened steel, polymer-coated fastener with GALVALUME®-Metal or Locking Plastic Plates.

The UltraFast Fastener is a #12, case-hardened steel, polymer-coated fastener with a buttress thread design that provides maximum pullout values and minimizes fastener backout. Available with either a #3

Phillips head or a ¼" (6.35 mm) hex head. The drill point is designed for quick installation in new or re-roof applications, and provides exceptional drilling capability in higher tensile decks.

Use: Insulation
Material: Fasteners - Case-Hardened Steel, Polymer-Coated
Gauge: #12
Head: #3 Phillips Head or ¼" (6.35 mm) Hex Head
Color: Blue
Deck Types: Wood or 18 - 24 gauge (1.25 mm - 0.51 mm) Metal



UltraFast Locking Plastic Plates are 3” (7.62 cm) round, high strength polypropylene plates with a special locking feature.

UltraFast Metal Plates are 3” (7.62 mm) round or square, premium Galvalume®*-coated steel metal plates.

Use: Insulation
Material: Plates - Galvalume-Coated Steel or High Strength Polypropylene
Gauge: 26 Gauge Steel
Plates: 3" (7.62 cm) Round Locking Plastic & Round or Square Metal
Colors: Grey (metal plates), Blue (plastic plates)
*Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers.

Ultrafast-Fasteners-and-Plates-700x811

SELECTOR GUIDES

Fasteners and Plates Selector Guide

Available Documents

Polymer-coated fastener with GALVALUME®-Metal or Locking Plastic Plates.

The UltraFast Pre-Assembled Fastener is a #12, case-hardened steel, polymer-coated fastener with a buttress thread design that provides maximum pullout values and minimizes fastener backout.. Available with a #3 Phillips head or ¼" (6.35 mm) hex head (available by special order only). The drill point is designed for quick installation in new or re-roof applications, and provides exceptional drilling capability in higher tensile decks. The UltraFast Locking Plastic Plate prevents fastener pop-up.

Use: Insulation

Material: Fasteners - Case-Hardened Steel, Polymer-Coated
                Plates - Galvalume®*-Coated Steel or Plastic

Gauge: #12

Head: #3 Phillips Head (¼" (6.35 mm) Hex Head is available by special order only)

Plates: 3" (7.62 cm) Round Locking Plastic or Round Metal

Colors: Blue (fasteners), Grey (metal plates), Blue (plastic plates)

Deck Types: Wood or 18 - 24 gauge (1.25 mm - 0.56 mm) Metal.

* Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers.

Fasteners-and-Plates-700x467

SELECTOR GUIDES

Fasteners and Plates Selector Guide

Available Documents

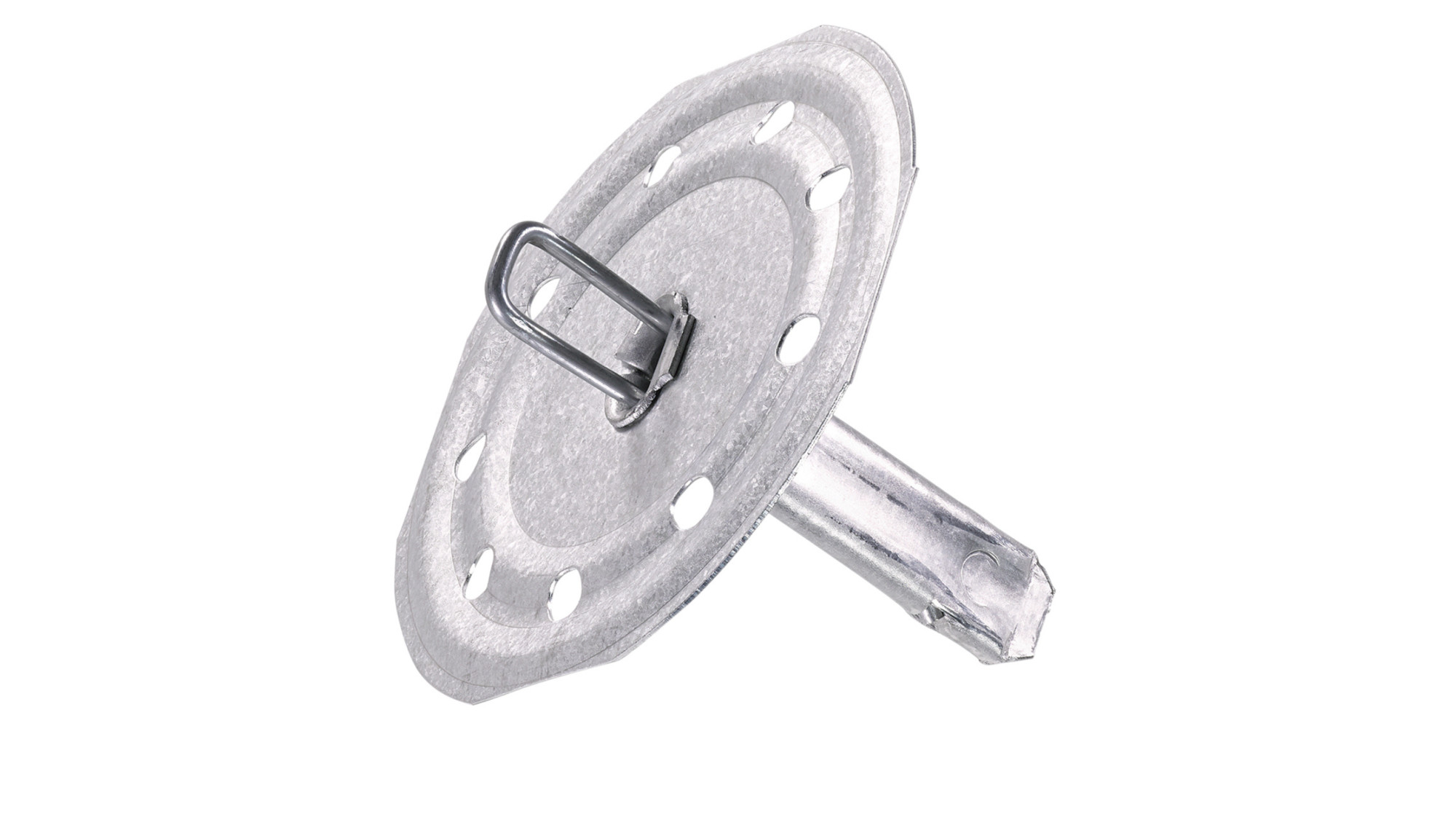

Galvanized-steel tube and GALVALUME®-coated steel disc clamped to a wire-locking staple.

UltraLok Locking Impact Fasteners and Plates consist of a preassembled Galvanized steel tube, a 2.7" (6.86 cm) Galvalume®*-coated steel disc, and a precision-formed, coated- steel, high tensile, wirelocking staple. The disc is securely clamped to the tube and is rib-reinforced to resist cupping.

Use: Cover Boards and Base Sheets

Material: Tube - Galvanized Steel
                 Plates - Galvalume-Coated Steel
                 Locking Staple - Coated-Steel, High Tensile Wire

Plate: 2.7" (6.86 cm) Metal - Round

Color: Grey

Deck Types: Poured Gypsum, Cementitious Wood Fiber and LWIC Lightweight Insulating Concrete

* Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers

Ultra-Locking-Impact-Fastener-700x8241

SELECTOR GUIDES

Fasteners and Plates Selector Guide

Available Documents

Sloped polyisocyanurate foam core panels with universal fiber glass-reinforced facers.

Meets the requirements of ASTM C 1289, Type II, Class 1,
Grade 2 (20 psi)
•DiamondBack Pre-Cut Crickets
Grade 3 (25 psi)
• DiamondBack 25 PSI Pre-Cut Crickets

Glass-Reinforced Facers: Provide rigidity and protection to the foam core and are compatible with BUR, modified bitumen and single ply membrane systems.

Closed Cell Polyisocyanurate Foam Core: Utilizes an environmentally compliant blowing agent that provides high thermal insulation performance.

Precise Factory Cuts: Custom designed to provide reduced job-site waste disposal, increased labor efficiency and smooth field transitions.

DiamondBack-PreCut-Crickets
Available Documents

Two 45-degree angle, tapered polyisocyanurate foam core panels with universal fiber glass-reinforced facers.

Meets the requirements of ASTM C 1289, Type II, Class 1,
Grade 2 (20 psi)
•DiamondBack Pre-Cut Miters
Grade 3 (25 psi)
• DiamondBack 25 PSI Pre-Cut Miters

Glass-Reinforced Facers: Provide rigidity and protection to the foam core and are compatible with BUR, modified bitumen and single ply membrane systems.

Closed Cell Polyisocyanurate Foam Core: Utilizes an environmentally compliant blowing agent that provides high thermal insulation performance.

Precise Factory Cuts: Custom designed to provide reduced job-site waste disposal, increased labor efficiency and smooth field transitions.

DiamondBack-PreCut-Miter
Available Documents

High-density, perlite-based cover board with a polymerized asphalt emulsion coating.

Meets the requirements of ASTM C 728, Type 2

Polymerized Asphalt Emulsion Coating: Allows for direct application of SBS or APP membranes using torch application techniques, and does not require pre-heating like heavily coated boards. This allows for fuel savings and labor efficiency by eliminating fasteners with a mechanically fastened base sheet.

Expanded Perlite: Provides good dimensional stability, excellent insulation value with stable R-value and fire resistance.

Reinforcing Cellulosic Fibers: Consists of recycled newsprint to provide strength to the board as well as high recycled content. JM utilizes third party certification by UL environment to certify the recycled content and contributes to the LEED Materials and Resource (MR) credit 4.

High Density: Provides additional strength and durability.

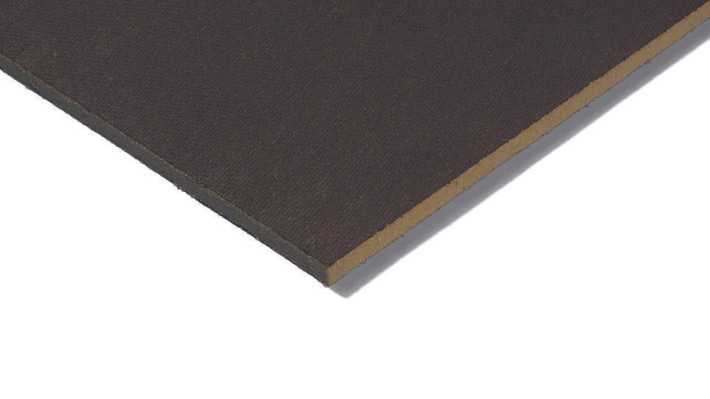

DuraBoard

case studies

American Life & Accident Insurance Co.

Insulation and Cover Boards Product Guide

Available Documents

High-thermal, closed-cell polyisocyanurate foam core insulation board bonded in the foaming process to DuraBoard®.

Meets the requirements of ASTM C 1289, Type III

Polymerized Asphalt Emulsion Coating: Allows for the direct application of SBS or APP membranes utilizing heat-weld application techniques.

Rigid Roof Insulation Board: Composed of a closed cell polyisocyanurate foam core bonded in the foaming process to 1/2" thick DuraBoard®, an expanded perlite mineral aggregate board, on one side, and a fiber glass reinforced facer on the other. It's light weight provides ease of handling.

High Thermal Efficiency: Utilizes an environmentally compliant blowing agent containing pentane hydrocarbon to enhance the thermal performance of the foam insulation.

DuraFoam 142x87
Available Documents

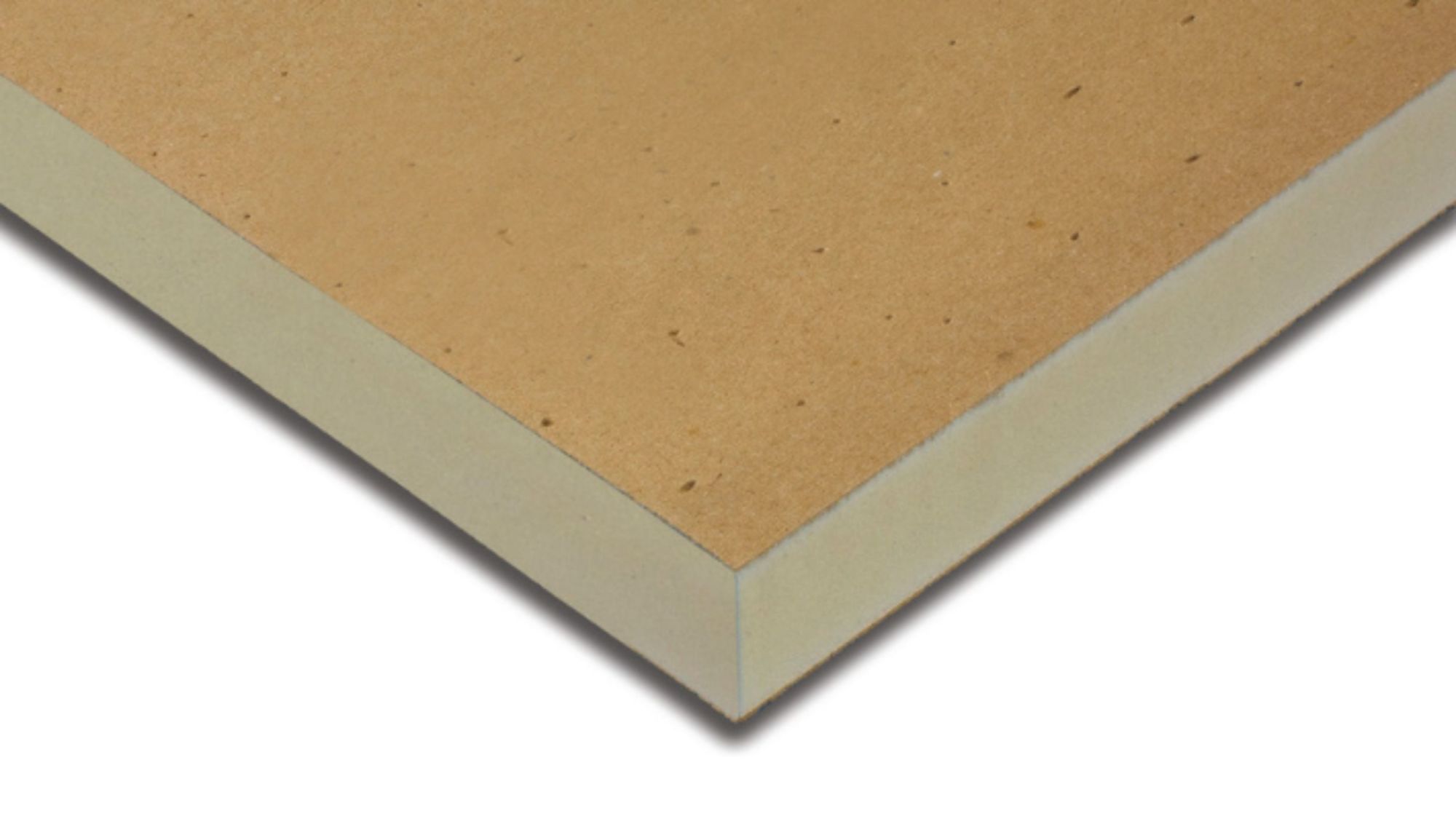

High-thermal, closed-cell polyisocyanurate foam core insulation board with universal fiber glass-reinforced facers.

Meets the following requirements:
ENRGY 3 / Tapered ENRGY 3
• CAN/ULC S704, Type 2, Class 3 (140 kPa)
• ASTM C 1289, Type II, Class 1, Grade 2 ENRGY 3 25 PSI / Tapered
ENRGY 3 25 PSI
• CAN/ULC S704, Type 3, Class 3 (170 kPa)
• ASTM C 1289, Type II, Class 1, Grade 3

Glass-Reinforced Facers: Provides rigidity and resistance to indentation and crushing, and are compatible with BUR, modified bitumen and single ply membrane systems.

Closed Cell Polyisocyanurate Foam Core: Provides high R-value per inch in built-up, modified bitumen, metal roof and single ply roof systems, and utilizes a zero ozone depletion blowing agent that provides high thermal insulation performance.

ENERGY-3-700x446

Resources

ENRGY 3 E84 Flame Spread Testing

Available Documents

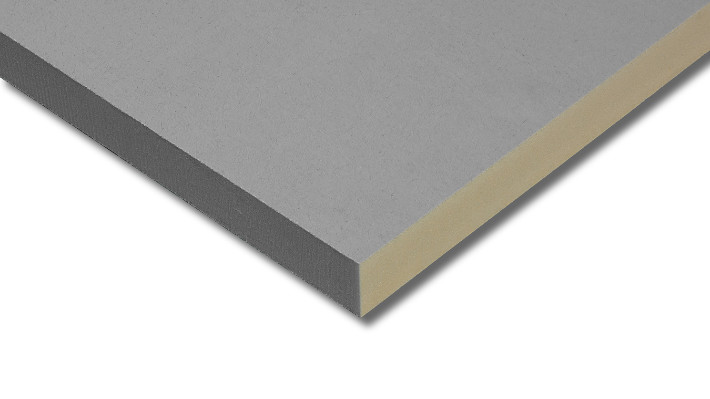

High-thermal, closed-cell polyisocyanurate foam core with an inorganic-coated glass facer on each side.

Meets the following requirements:
ENRGY 3 CGF / Tapered ENRGY 3 CGF
• CAN/ULC S704, Type 2, Class 3 (140 kPa)
• ASTM C 1289, Type II, Class 2, Grade 2
ENRGY 3 25 PSI CGF / Tapered ENRGY 3 25 PSI CGF
• CAN/ULC S704, Type 3, Class 3 (170 kPa)
• ASTM C 1289, Type II, Class 2, Grade 3

Inorganic Coated Glass Facers: (With no cellulose) Provide improved resistance to mold growth, as well as a smooth surface that performs well with self-adhering systems, and efficient adhesive application in fully adhered single ply systems.

Closed Cell Polyisocyanurate Foam Core: Provides high R-value per inch in built-up, modified bitumen, metal roof and single ply roof systems, and utilizes an environmentally compliant blowing agent that provides high thermal insulation performance.

ENRGY-3-CGF-700x5311
Available Documents

Fire-retardant, high-thermal, closed-cell polyisocyanurate foam core with an inorganic-coated glass facer on each side.

Meets the requirements of ASTM C 1289, Type II, Class 2
Grade 2 (20 psi)
• ENRGY 3 FR / Tapered ENRGY 3 FR
Grade 3 (25 psi)
• ENRGY 3 25 PSI FR / Tapered ENRGY 3 25 PSI FR

Inorganic Coated Glass Facers: (With no cellulose) Provide improved resistance to mold growth as well as rigidity and resistance to indentation and crushing for mechanically fastened single ply membrane systems. The premium coated FR facer yields UL Class A combustible deck assembly rating without the need for a gypsum cover board or slipsheet.

Closed Cell Polyisocyanurate Foam Core: Provides high R-value per inch in built-up, modified bitumen, metal roof and single ply roof systems, and utilizes an environmentally compliant blowing

ENRGY-3-CGF-700x5311

brochures

Insulation and Cover Boards Product Guide

bulletins

CGF Polyiso Respirable Crystalline Silica Bulletin

Available Documents

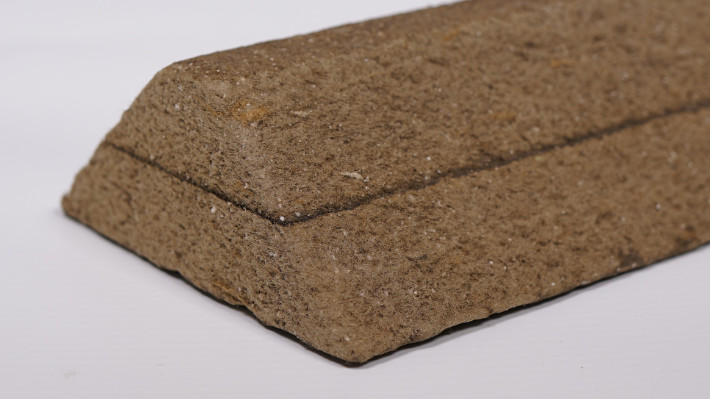

High-density, laminated cant board made of high strength fibers and expanded perlite.

Expanded Perlite: Provides good dimensional stability and excellent insulation value with stable R-value. The high perlite content offers far greater fire resistance than conventional wood fiber materials.

Reinforcing Cellulosic Fibers: Consists of recycled newsprint to provide strength to the board as well as high recycled content. JM utilizes third party certification by UL® Environment to certify the recycled content and contributes to the LEED® Materials and Resource (MR) credit 4.

FesCant Plus Cant Strips: Manufactured from JM Cant Board, a high-density, laminated perlite board that provides excellent transition from the deck to the wall of the roof.

Tapered FESCO Edge Strips: Excellent for transitioning from membrane to nailer, or transitioning from Tapered FESCO®, Tapered ENRGY 3®, or Tapered Fesco Foam® panels to the roof level to help promote positive drainage.

Fescant-Plus-and-Tapered-Fesco-edge-Strip

brochures

Insulation and Cover Boards Product Guide

Available Documents

Protective perlite-based cover board or low-thermal insulation board proven to reduce blistering in hot-asphalt applications.

Meets the requirements of ASTM C 728, Type 1

TopLoc® Coating: Top surface is sealed with this special coating to reduce excessive asphalt absorption in hot-asphalt applied roofing systems.

Expanded Perlite: Provides good dimensional stability, excellent insulation value with stable R-value and fire resistance.

Low Thermal Insulation Board: Composed of expanded perlite, reinforcing cellulosic fibers and selected binders.

Reinforcing Cellulosic Fibers: Consists of recycled newsprint to provide strength to the board as well as high recycled content. JM utilizes third party certification by UL® Environment to certify the recycled content and contributes to the LEED Materials and Resource (MR) credit 4.

Hot Asphalt Friendly: Protective cover board or low thermal insulation board proven to reduce the tendency for blistering in hot asphalt applications.

FESCO-Board-700x468

brochures

Insulation and Cover Boards Product Guide



case studies

Dura-Bar® Heavy Industrial Manufacturing Facility

Albuquerque High School – Creative after-school activities go to the roof

St. Patrick Elementary Case Study - Academic success drives school’s expansion and proven performance guides its roof selection

Available Documents

High thermal, rigid, closed-cell polyisocyanurate foam core produced inline between a Fesco® Laminator Board and a reinforced facer.

Meets the requirements of ASTM C 1289, Type III
Fesco Foam / Tapered Fesco Foam

TopLoc® Coating: Top surface is sealed with this special coating to reduce excessive asphalt absorption in hot-asphalt applied roofing systems.

Rigid Roof Insulation Board: Composed of a closed cell polyisocyanurate foam core bonded in the foaming process to RetroPlus Roof Board on one side and a glass-reinforced facer on the other. RetroPlus Roof Board is an expanded perlite mineral aggregate board.

High Thermal Efficiency: Utilizes an environmentally compliant blowing agent containing pentane hydrocarbon to enhance the thermal performance of the foam insulation.

FescoFoam 142x87
Available Documents

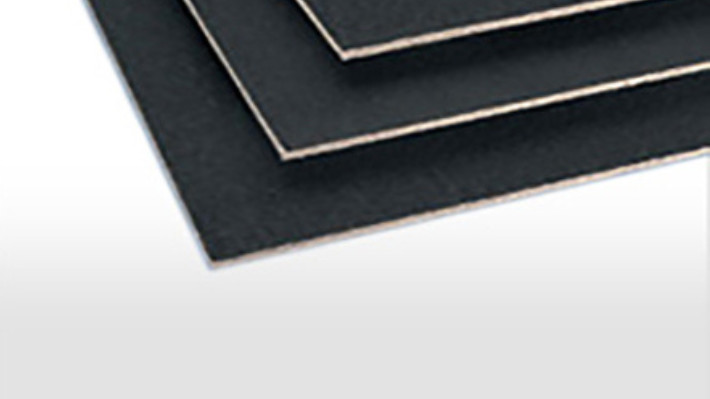

High-density, protective, perlite-based cover board or low-thermal insulation board proven to reduce blistering in hot-asphalt applications.

Meets the requirements of ASTM C 728, Type 2

TopLoc® Coating: Top surface is sealed with this special coating to reduce excessive asphalt absorption in hot-asphalt applied roofing systems.

Expanded Perlite: Provides good dimensional stability, excellent insulation value with stable R-value and superior fire resistance.

Reinforcing Cellulosic Fibers: Consists of recycled newsprint to provide strength to the board as well as high recycled content. JM utilizes third party certification by UL environment to certify the recycled content and contributes to the LEED Materials and
Resource (MR) credit 4.

High Density*: Allows for installations directly over a wide flute or metal deck application for spans up to 2½" and resists damage from construction and maintenance.

Hot Asphalt Friendly: Can be used as a cover board in re-roofing and new construction, proven to reduce the tendency for blistering in hot asphalt applications.

*For direct to deck application, contact JM technical services for specific requirements and system compatibility

Available Documents

Low-thermal, perlite-based cover board with recycled materials providing strength to the board.

Meets the requirements of ASTM C 728, Type 2

TopLoc® Coating: Top surface is sealed with this special coating to reduce excessive asphalt absorption in hot-asphalt applied roofing systems.

Expanded Perlite: Provides good dimensional stability, excellent insulation value with stable R-value and fire resistance.

Reinforcing Cellulosic Fibers: Consists of recycled newsprint to provide strength to the board as well as high recycled content. JM utilizes third party certification by UL environment to certify the recycled content and contributes to the LEED Materials and Resource (MR) credit 4.

Hot Asphalt Friendly: Utility board for use as a divorcing layer in re-roofing and in new construction as a top layer in multi-layer insulation systems proven to reduce the tendency for blistering in hot asphalt applications.

RetroPlus-Roof-Board-700x491

Case Studies

Solano County Government Center County Administration Building

Insulation and Cover Boards Product Guide

Available Documents

Resilient, lightweight, high-density, closed-cell polyisocyanurate foam core roof board.

Meets the requirements of ASTM C 1289, Type II, Class 4, Grades 1, 2 and 3

High-Density Polyisocyanurate Foam Core: Closed cell polyisocyanurate foam technology provides additional insulation value, with lightweight and low water absorption characteristics.

Inorganic Coated Glass Facers: (With no cellulose) Provide improved resistance to mold growth, as well as a smooth surface that performs well with self-adhering systems, and efficient adhesive application in fully adhered single ply systems.

Lightweight: Offers labor and installation efficiencies and allows more options for situations where the overall weight is a concern. This also means easy hoisting, staging and maneuvering around the roof.

Flexibility: Means less breakage during handling, and in re-cover applications it allows Invinsa to accommodate minor irregularities in existing roofs.

User Friendly: Invinsa allows easy & efficient scoring, cutting and snapping which permits fast, tight fabrication and all in a low dust environment.

Resistance To Damage: High impact, flexural and compressive strength provides a protective layer for insulation while working with the membrane above to ensure maximum performance and longevity

Invinsa-FR 700x4271

Brochures

Invinsa Product Line Brochure

Single Ply Roofing for Metal Roof Retrofit

Insulation and Cover Boards Product Guide



case studies

Basalt Elementary - Reaping Rewards for using Invinsa and EPDM at High Altitudes

Shearer's Foods – LEED Platinum PVC Roof for Snack Food Manufacturer

McLane Western Case Study - JM TPO system protects high-volume, fast-turn business of perishables

Tower One / Colorado Plaza Towers Case Study

Biltmore House – PVC Protects Historic Treasures

Bulletins

CGF Polyiso Respirable Crystalline Silica Bulletin

considerations

Invinsa® Roof Board Codes and Application Brochure

Invinsa Manual for Contractors and Design Professionals

Available Documents

Dual-Density Polyisocyanurate Composite Board

Meets the following requirements:
High-Density layer meets the requirements of ASTM C 1289,
Type II, Class 4, Grades 1, 2, & 3
Normal-Density layer meets the requirements of ASTM C 1289,
Type II, Class 2
Currently no ASTM designation for this composite.

High-Density Foam (Invinsa): Provides the highest compressive strength (150 psi nominal) polyisocyanurate board on the market today. Provides a protective layer for insulation while working with the membrane above to ensure maximum performance and longevity.

Normal-Density Foam (ENRGY 3 CGF): Closed cell polyisocyanurate foam manufactured inline to create a homogeneous board with Invinsa® and coated glass facers.

Inorganic Coated Glass Facers: (With no cellulose) Provide improved resistance to mold growth, as well as a smooth surface that performs well with self-adhering systems, and efficient adhesive application in fully adhered single ply systems.

Cost Savings: Installation labor savings by combining cover board and insulation into a single board. Eliminates adhesive cost to adhere cover board to insulation.

InvinsaFoam 142x87
Available Documents

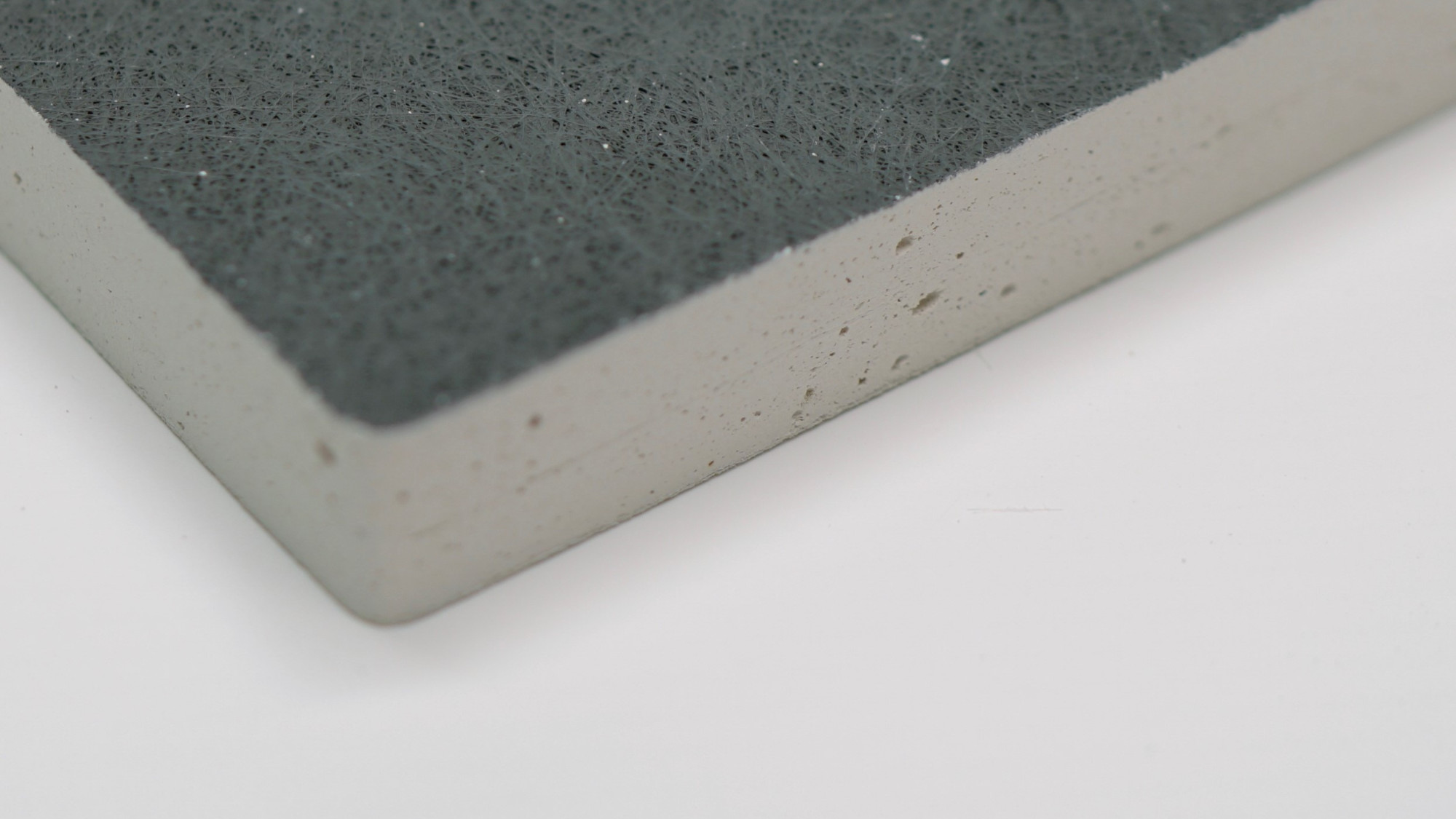

Enhanced Coated Glass Mat Faced Gypsum Cover Board

Meets the requirements of ASTM C 1177

Enhanced Face Mat: Coated fiberglass facer ideal for fully adhered systems provides a broader compatibility and higher performance with roofing adhesives.

Fire Performance: FM Class 1 for fire barrier requirements and UL Class A unlimited slope with excellent surface burning characteristics. 5/8" thickness meets the requirements of Type X per ASTM C 1177.

JM-DENSDECK-PRIME-ROOF-BOARD1

brochures

Insulation and Cover Boards Product Guide

Available Documents

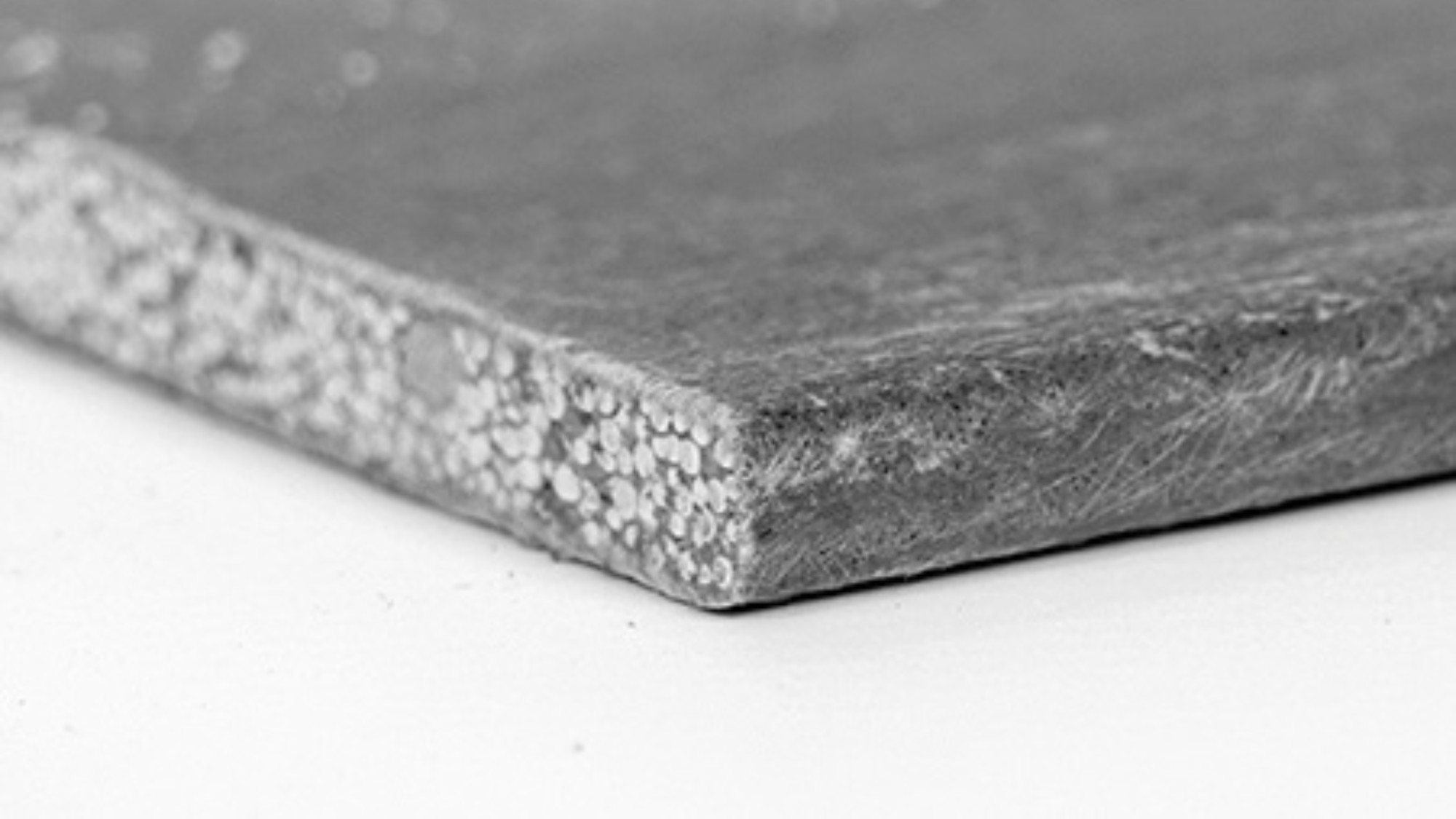

Cement and Glass Mesh Cover Board

Meets the requirements of ASTM C 1325

Durability: Composed of a lightweight cementicious core to provide exceptional impact resistance.

Strength: Exceptionally high compressive strength improves overall roof system performance. Cement board is able to withstand prolonged exposure to moisture and is ideal for systems where wind uplift and puncture resistance are a concern.

Fire Performance: FM Class 1 for fire barrier requirements and UL Class A unlimited slope with excellent surface burning characteristics.

Moisture and Mold Resistance: Cement based core provides superior moisture, mold, and mildew resistance. Scores a maximum "10" for mold resistance when tested per ASTM D 3273.

Securock-Cement-Roof-Board

brochures

Insulation and Cover Boards Product Guide

Available Documents

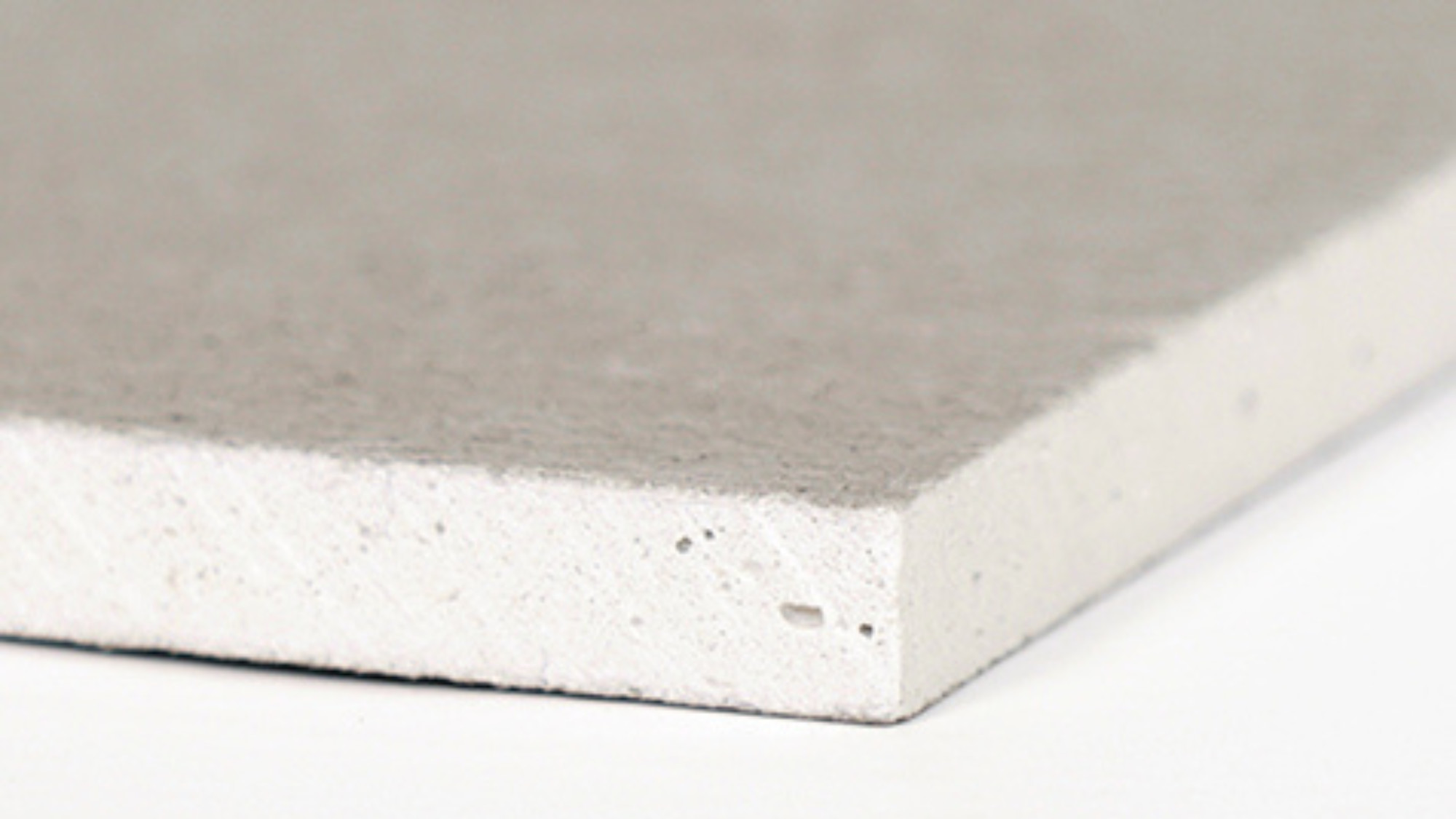

Heavy-Duty Coated Glass-Mat Faced Gypsum Cover Board

Meets the requirements of ASTM C 1177

Handleability: Heavy duty coated fiberglass facer ideal for fully adhered systems improves handling and strength. Scores and snaps easily.

Strength: High compressive strength improves overall roof system performance. Ideal for systems where wind uplift and puncture resistance are a concern.

Fire Performance: FM Class 1 for fire barrier requirements and UL Class A unlimited slope with excellent surface burning characteristics. 5/8" thickness meets the requirements of Type X per ASTM C 1177.

Moisture and Mold Resistance: Enhanced mold resistant core and coated fiberglass facers provide mold and mildew resistance per ASTM-D 3273.

DEXcell-3_4-FA-Glass-Mat-Roof-Board-700x249

brochures

Insulation and Cover Boards Product Guide



Available Documents

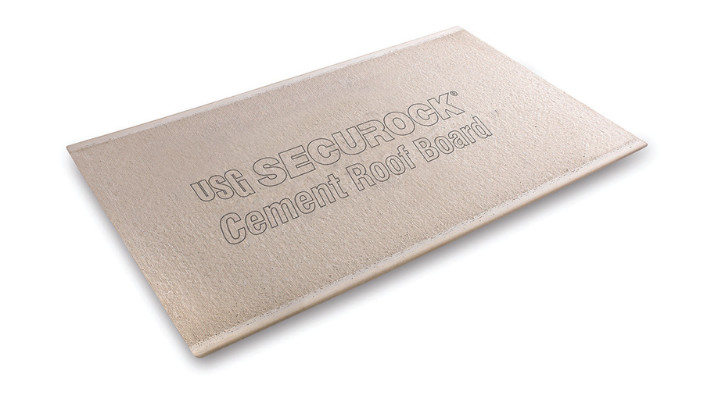

Aggregated Portland cement slurry with polymer coated, glass-fiber mesh.

Meets the requirements of ASTM C 1325

Ideal for liquid applied membrane roof systems.

Strength: Engineered to provide superior wind-uplift performance for a wide variety of roof assemblies. The board is formed using an aggregated portland cement slurry with a polymer-coated, glass-fiber mesh completely encompassing edges and both surfaces, to enhance bond strength of membrane systems and gives excellent resistance to delamination.

Fire Performance: Provides excellent fire performance with unlimited slope classifications and is non-combustable per UL 790.

Moisture and Mold Resistance: Cement based, highly water durable board, scored a maximum "10" for mold resistance when tested per ASTM D 3273.

Securock-Cement-Roof-Board

brochures

Insulation and Cover Boards Product Guide

Available Documents

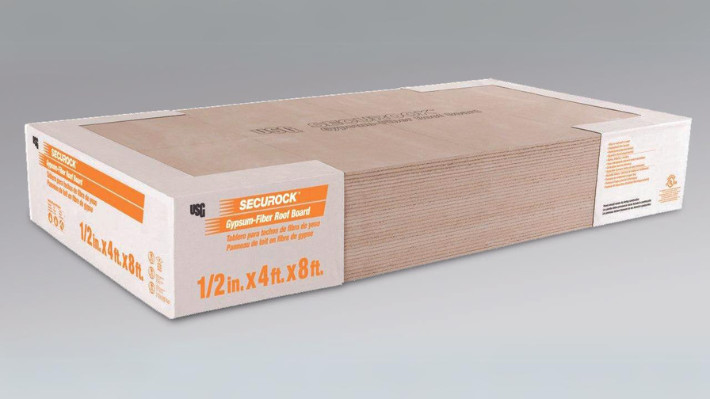

Gypsum- and cellulose-fiber roof board with integral water-resistant core.

Meets the requirements of ASTM C 1278

Strength: Engineered to provide high wind-uplift performance. Uniform composition providing enhanced bond strength of membrane systems with no risk of facer delamination.

Fire Performance: Provides excellent fire performance, and demonstrates exceptional surface burning characteristics. 5/8" thickness meets the requirements of Type X per ASTM C 1177.

Moisture and Mold Resistance: Integral water-resistant core scored a maximum "10" for mold resistance when tested per ASTM D 3273.

Securock-Gypsum-Fiber-Roof-Board
Available Documents

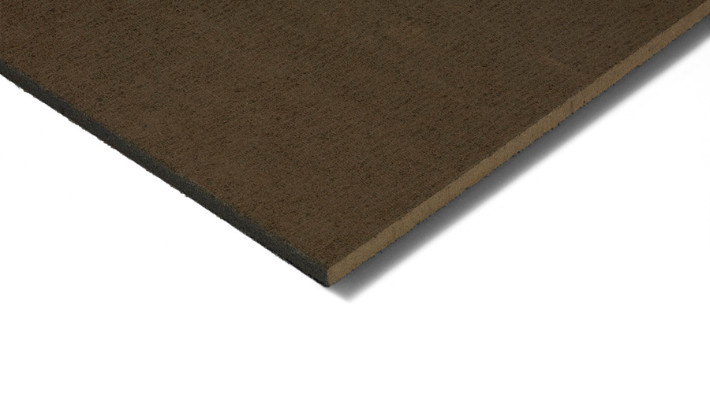

High-density, expanded, perlite-based cover board engineered to optimize system performance across all applications.

Meets the requirements of ASTM C 728, Type 3

TopLoc® Coating: Top surface is sealed with this special coating to reduce excessive adhesive absorption in hot-asphalt and cold applied roofing systems, and to provide a strong surface for bonding bituminous membranes.

Expanded Perlite: Provides good dimensional stability, excellent insulation value with stable R-value and superior fire resistance.

Reinforcing Cellulosic Fibers: Consists of recycled newsprint to provide strength to the board as well as high recycled content. JM utilizes third party certification by UL environment to certify the recycled content and contributes to the LEED Materials and Resource (MR) credit 4.

High Density: Provides additional strength and durability over 1/2" Retro-Fit Board with low moisture content and water resistance compared to wood fiber board.

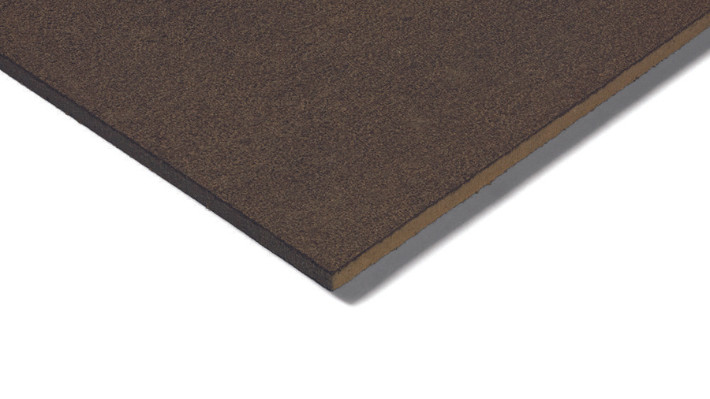

RetroPlus-Roof-Board
Available Documents

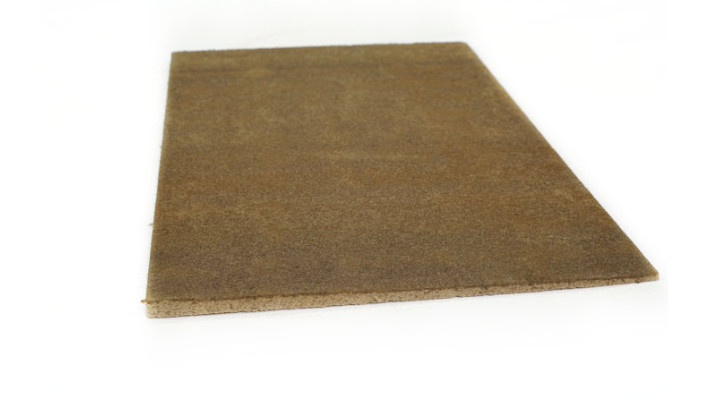

Tapered, protective, perlite-based cover board or low thermal insulation board proven to reduce blistering in hot-asphalt applications.

Meets the requirements of ASTM C 728, Type 1

TopLoc® Coating: Top surface is sealed with this special coating to reduce excessive asphalt absorption in hot-asphalt applied roofing systems.

Expanded Perlite: Provides good dimensional stability, excellent insulation value with stable R-value and fire resistance.

Tapered Design: Factory cut taper, that is easy to install and cut, builds slope into an otherwise flat roofing system, allowing water to drain freely off the roof.

Reinforcing Cellulosic Fibers: Consists of recycled newsprint to provide strength to the board as well as high recycled content. JM utilizes third party certification by UL environment to certify the recycled content and contributes to the LEED Materials and Resource (MR) credit 4.

Hot Asphalt Friendly: Perlite board proven to reduce the tendency for blistering in hot asphalt applications.

FESCO-Board-700x468
Available Documents

High-thermal, closed-cell polyisocyanurate foam core insulation board.

Meets the following requirements:
ValuTherm / Tapered ValuTherm
• CAN/ULC S704, Type 2, Class 3 (140 kPa)
• ASTM C 1289, Type II, Class 1, Grade 2
ValuTherm 25 PSI / Tapered ValuTherm 25 PSI
• CAN/ULC S704, Type 3, Class 3 (170 kPa)
• ASTM C 1289, Type II, Class 1, Grade 3\

Glass-Reinforced Facers: Provides rigidity and resistance to indentation and crushing, and are compatible with BUR, modified bitumen and single ply membrane systems.

Closed Cell Polyisocyanurate Foam Core: Provides high R-value per inch in built-up, modified bitumen, metal roof and single ply roof systems, and utilizes a zero ozone depletion blowing agent that provides high thermal insulation performance.

EPD

Environmental Product Declaration for Polyiso Roof Insulation Boards

Available Documents

High-thermal, closed-cell polyisocyanurate foam core with an inorganic-coated glass facer on each side.

Meets the following requirements:
ValuTherm CGF / Tapered ValuTherm CGF
• CAN/ULC S704, Type 2, Class 3 (140 kPa)
• ASTM C 1289, Type II, Class 2, Grade 2
ValuTherm25 PSI CGF /
Tapered ValuTherm 25 PSI CGF
• CAN/ULC S704, Type 3, Class 3 (170 kPa)
• ASTM C 1289, Type II, Class 2, Grade 3

Inorganic Coated Glass Facers: (With no cellulose) Provide improved resistance to mold growth, as well as a smooth surface that performs well with self-adhering systems, and efficient adhesive application in fully adhered single ply systems.

Closed Cell Polyisocyanurate Foam Core: Provides high R-value per inch in built-up, modified bitumen, metal roof and single ply roof systems, and utilizes an environmentally compliant blowing agent that provides high thermal insulation performance.

epd

Environmental Product Declaration for Polyiso Roof Insulation Boards

Available Documents
