Insulation for Cryogenic and LNG Systems

Cryogenic and below-ambient pipe and tank temperatures can drop to -297°F, making a well-designed insulation system critical to ensure safe and efficient operations in an Liquefied Natural Gas (LNG) facility. We’ve created this LNG resource page to assist you with the details you need to properly design, specify and install insulation systems for your cryogenic LNG applications.

Click on the links below to learn more about system design and explore the benefits of using Trymer® Polyisocyanurate (PIR) insulation:

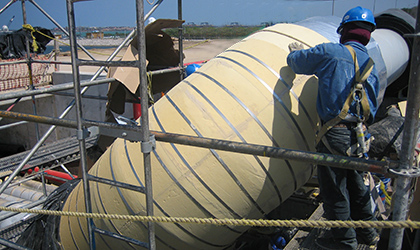

The Importance of Insulating Cryogenic Systems

In an LNG application, if more heat is gained than can be removed by the refrigeration system, there is potential for the system to become pressurized as the LNG vaporizes. Minimizing heat gain is particularly important in cryogenic applications, like LNG, and why a well-designed insulation system is critical to ensuring safe and efficient operations in an LNG facility. Cryogenic and below-ambient piping and tanks should be insulated with a closed-cell foam insulation, and contain a vapor retarder with low permeability.

The Important of Insulating Cryogenic Systems

Designing a Cryogenic Insulation System

Minimizing heat gain is particularly important in cryogenic applications, like LNG, so an insulation material that is both thermally efficient and moisture resistant is critical. When specifying a pipe insulation system, it’s important to evaluate all of the variables that contribute to optimum performance and the best long-term value. Connect with a Technical Expert.

Insulation Thermal Conductivity

The thermal conductivity and thickness of an insulation will determine how many layers of insulation are needed to achieve a thermal performance. Trymer PIR insulation products feature excellent (low) thermal conductivity (k-factor) at cryogenic temperatures. Thickness Tables

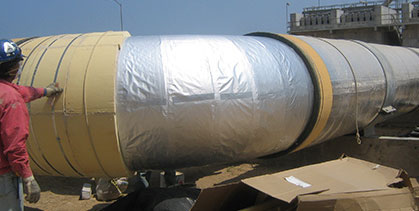

Insulation Vapor Retarder

Ensuring water and water vapor do not infiltrate a cryogenic system requires a properly installed vapor retarder such as Saranex® CX Vapor Retarder Film & Tape – even with a closed cell material, like Trymer PIR. Learn More

Insulation Compressive Strength

To minimize heat gain into the LNG system, designers prefer to specify insulations with a higher compressive strength, like Trymer PIR to ensure strength and durability to stand up to harsh environments. Learn More

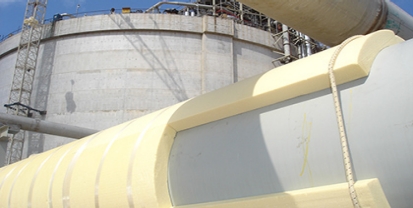

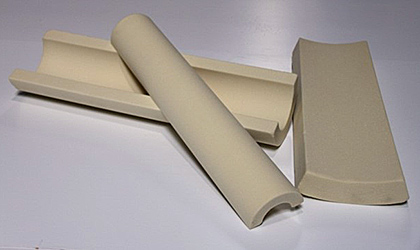

What is TRYMER® Polyisocyanurate (PIR) Insulation

Trymer is a polyisocyanurate (PIR), closed-cell, foam insulation for industrial pipes, tanks, vessels, and equipment used in cryogenic and LNG applications. Trymer PIR can be used on applications that operate at temperatures ranging from -297°F to 300°F (-183°C to 148°C). JM produces Trymer PIR in a variety of densities and compressive strengths to ensure the performance characteristics of the product meet the unique demands of LNG applications. Trymer PIR features a k-factor of 0.19 BTU · in/hr · ft2 · °F at 75°F mean temperature (0.027 W/m · °C at 24°C), one of the lowest ambient k-factors among insulations used in cryogenic applications.

Trymer Polyisocyanurate PIR Insulation

Benefits of Trymer PIR Insulation

Trymer PIR - Highly Economical Insulation

Highly Economical

Trymer PIR is often the most economical choice both in terms of material costs (including insulation, vapor retarder, and jacketing) and installation costs. Learn More

Trymer PIR - Easy to Fabricate and Install

Easy to Fabricate and Install

Trymer PIR is lightweight, easy to fabricate into various shapes, and produced in longer sections (3’ vs. 2’), resulting in fewer joints to seal and less potential for failure. Learn More

Trymer PIR - Superior Thermal Performance

Superior Thermal Performance

By using Trymer PIR, the necessary thermal performance can be achieved in fewer layers (lower total thickness) than the least thermally conductive materials. Learn More

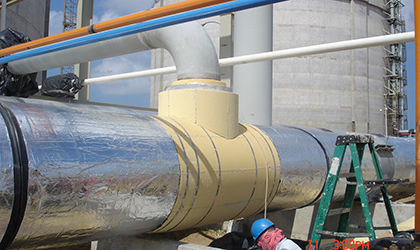

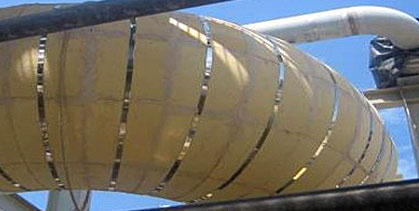

Installing TRYMER PIR Insulation

At cryogenic temperatures, errors in the design and/or installation are evident almost immediately and costly to repair.

Explore these Resources:

Installation Guide: Trymer PIR and LNG Systems
Installation Guide: Saranex CX Vapor Retarder Film & Tape
Installation Guide: Metal Jacketing
• Contractor Discusses Installing PIR – Coming Soon!
• Q&A: Contractor Installing PIR – Coming Soon!


Installing Trymer PIR Insulation System

On-Demand Webinar: Insulation Systems for LNG Piping

LNG systems create challenges for designers and installers alike. JM's Insulation Intel® webinar explains the following considerations and concludes with a robust Q&A session with our experts:

•    Design Criteria: desired service life, environment, and operating conditions
•    System Design: joint staggering, contraction joint spacing, supports and more
•    Insulation material recommendations
•    Overview on installation and system maintenance

Webinar: Insulation Systems for LNG Piping

Additional Resources for Cryogenic Insulation

Expand all
Collapse all

Industrial Insulation Intel Blog

4 Key Characteristics for LNG Pipe Insulation
Mon, Apr 20, 2020 | Jim Young & Kim Melton
Insulation is one of the crucial components to ensuring the safety and efficiency of your LNG facility. Find out what characteristics you should be looking for in your insula...
What are the basics for determining the necessary insulation thickness on an LNG pipe?
Thu, May 21, 2020 | Jim Young
Why don’t you recommend NAIMA’s 3ePlus insulation thickness calculation software for cryogenic applications such as LNG?
Thu, May 21, 2020 | Jim Young
Where and why do you recommend vapor stops?
Thu, May 21, 2020 | Jim Young
Why do most LNG insulation systems use dual vapor barriers?
Thu, May 21, 2020 | Jim Young
