Presto Lock Coping System

Presto Lock Coping System

Product Descriptive Name
Coping system for use with all types of roof systems.
Product Short Description

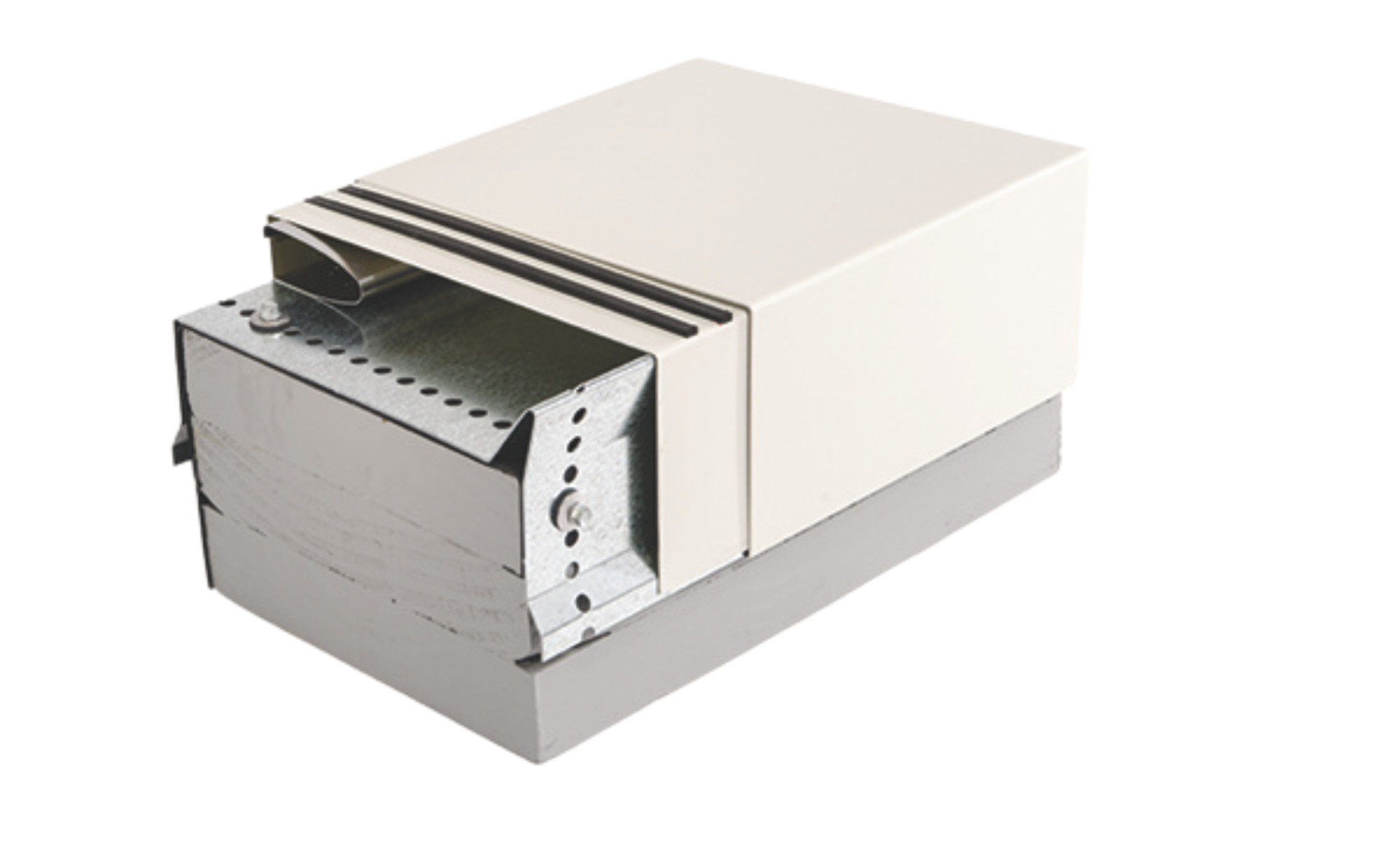

A cost-effective snap-on coping system designed for use with single ply, built-up and modified bitumen roofing systems. The system consists of galvanized steel anchor clips and aluminum or galvanized coping covers in a variety of thicknesses and colors.

Product Details

Features

Presto Lock Coping System

Features

Anchor Clips: 12" wide Galvanized steel base with stainless steel spring clip designed to keep upward pressure on the coping cover. Pre-punched for proper fastener location.

Coping Cover: Available in 12 ft (3.7 m) lengths of either aluminum or galvanized steel, lengths and gauges listed below.

Concealed Splice Plate: 8" (20.3 cm) wide plate, with metal and finish to match cover, and dual non-curing isocryl butyl sealant strips to allow for thermal movement and seals joints.

Finishes: Steel and aluminum available in a number of standard Kynar®* 500 colors, aluminum also available in mill and anodized finishes. Custom colors available upon request.

Accessories: Factory-fabricated miters, end caps, and tees are available with “quicklock” or welded seams.

Custom Capabilities: Quicklock and welded radius coping available along with other specially fabricated coping products to meet the needs of the project.

  • *Kynar® is a registered trademark of Arkema, Inc.
