Expansion Joint Cover - PVC EJ/WC

Expansion Joint Cover - PVC EJ/WC

Product Descriptive Name
Expansion Joint
Product Short Description

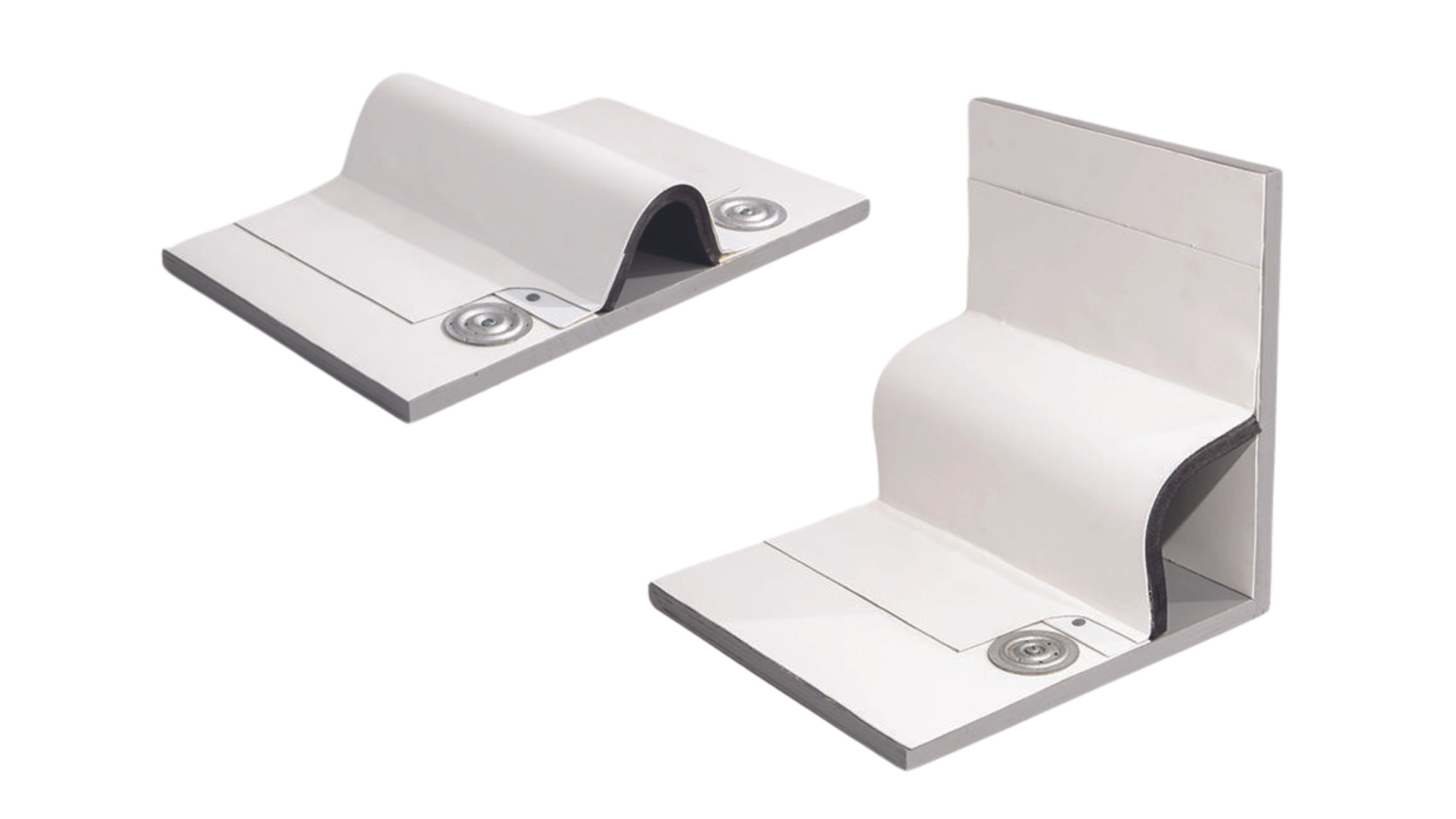

Expand-O-Flash® Style PVC EJ/WC is an expansion joint with reinforced PVC cover to weld the joint assembly to the PVC membrane.

Product Details

Expansion Joint Cover - PVC EJ/WC

Product Short Description
Expand-O-Flash® Style PVC EJ/WC is an expansion joint with reinforced PVC cover to weld the joint assembly to the PVC membrane.

Features

Expansion Joint Cover - PVC EJ/WC

Features

Expand-O-Flash® expansion joint covers are flexible, weather-proof exterior covers for expansion joint openings and are an effective, flexible closure for a wide variety of standard and special applications.

Bellows:

  • Widths: 4" - 12" (10.16 cm - 30.48 cm) Standard (Other sizes are available, contact JM for more information.)
  • Membrane Cover: JM PVC
  • Membrane Thicknesses: 0.060" (1.52 mm)
  • Membrane Width: 8" up to 75" (20.32 cm up to 1.91 m) (Depending on flashing and welding to the membrane requirements.)
  • Membrane Colors: White; Grey; Grey ES; Sandstone and Sandstone ES
  • Closed Cell Support Foam - Thickness varies from 0.375" to 0.75" (9.53 mm to 19.1 mm) depending on bellows width.

Nail Strip: Rigid PVC

  • Width: 1.375" (3.49 cm)

Factory fabricated transitions are available.
