UltraFast Fasteners and Plates

Product Descriptive Name: Case-Hardened Steel, Polymer-Coated Fasteners and Galvalume® Metal and Locking Plastic Plates

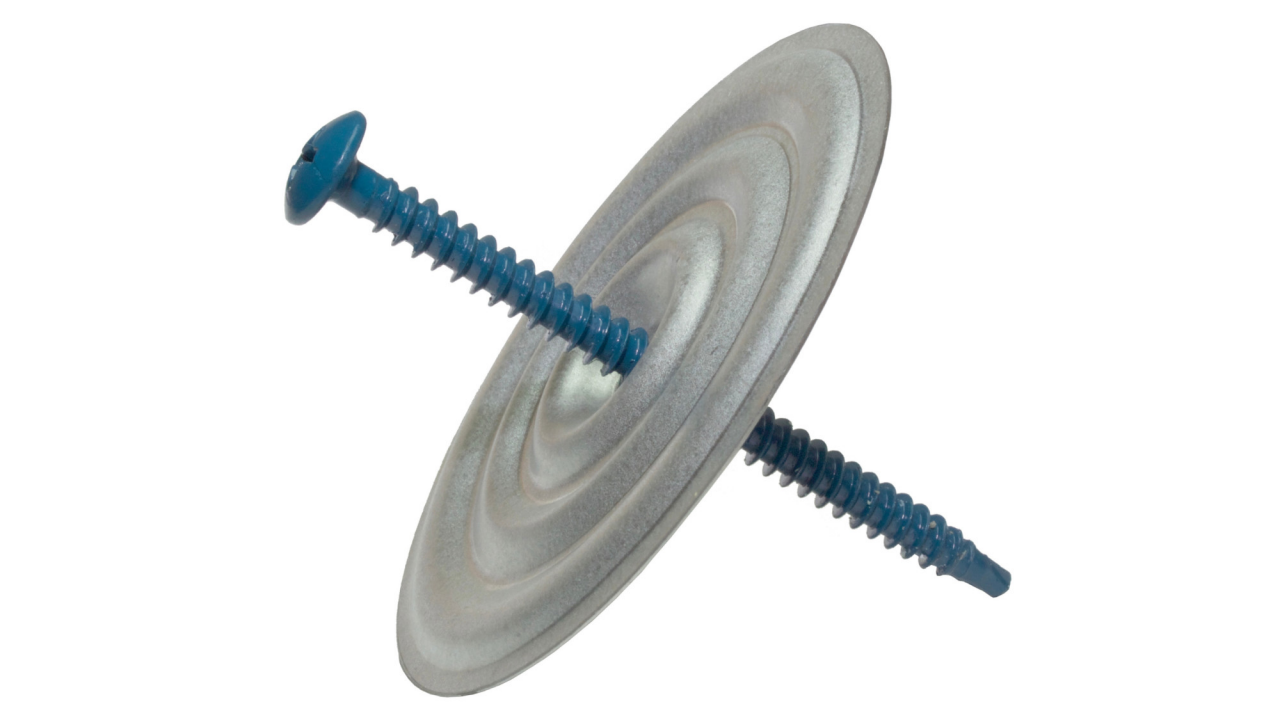

Product Short Description: UltraFast® Fasteners and Plates are used to fasten insulation in both multi-ply and single ply systems. The UltraFast® Fastener is a #12, case-hardened steel, polymer-coated fastener with a buttress thread design that provides maximum pullout values and minimizes fastener backout. The UltraFast® Plates are either round, high strength polypropylene plates with a special locking feature or round or square, premium Galvalume®*-coated steel metal plates.

Product Details

UltraFast Fasteners and Plates

Product Long Description

Features

UltraFast Fasteners and Plates

Features

Use: Insulation

Material:

Fasteners - Case-Hardened Steel, Polymer-Coated
Plates - Galvalume®*-Coated Steel or High Strength Polypropylene

Gauge:

#12
Plates - 26 Gauge Steel

Head: #3 Phillips Head or ¼" (6.35 mm) Hex Head

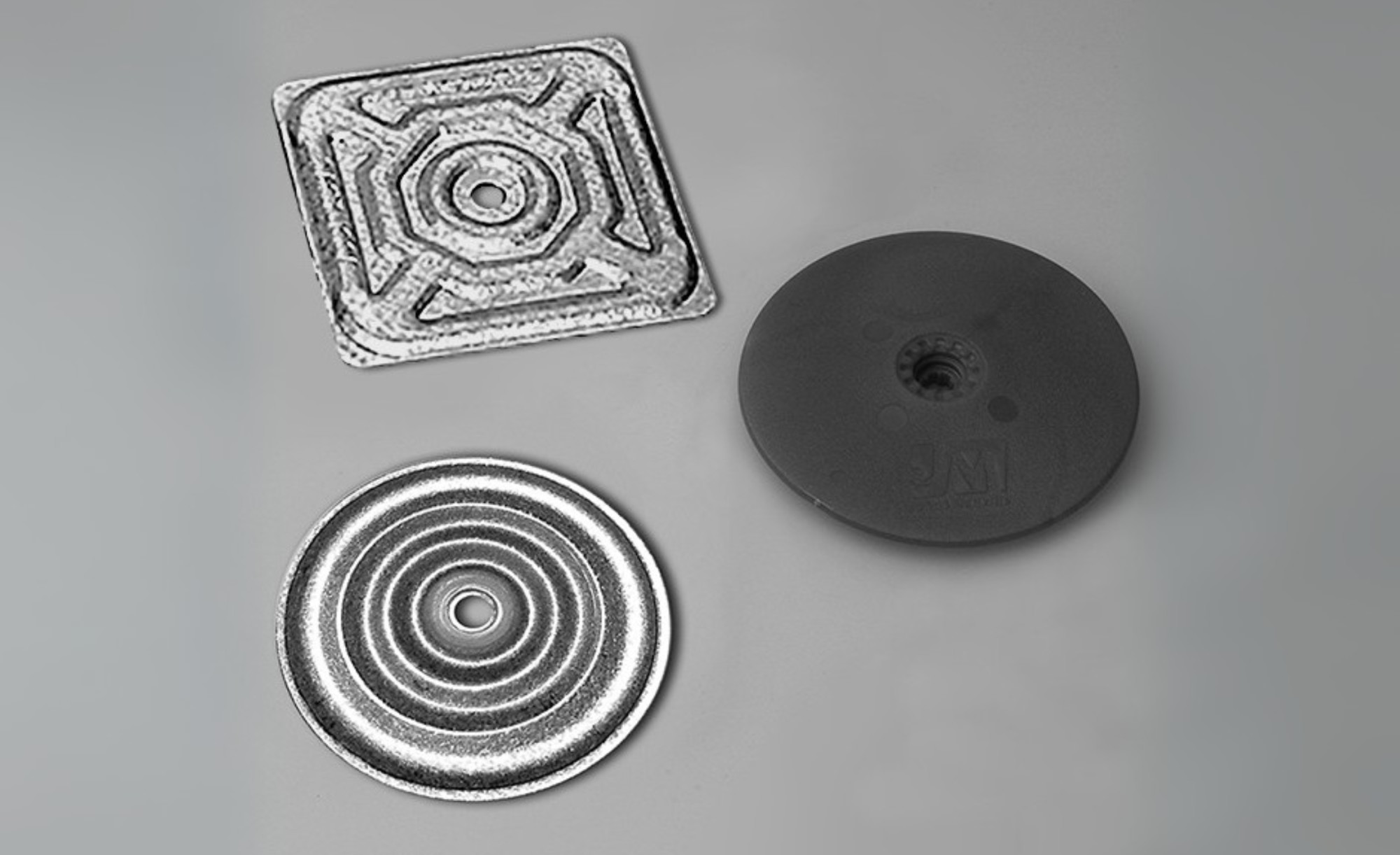

Plates: 3" (7.62 cm) Round Locking Plastic & Round or Square Metal (26 Gauge Steel)

Colors: Blue (Fasteners), Grey (Metal Plates), Blue (Plastic Plates)

Deck Types: Wood or 18 - 24 gauge (1.25 mm - 0.56 mm) Metal

* Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers.

Coating: CR-10 corrosion resistant factory applied coating passes the corrosion requirements of FM 4470 and ETAG 006
