Nail-Lok SD

Nail-Lok SD

Product Descriptive Name
Nailboard (Regular and Vented) Fastener
Product Short Description

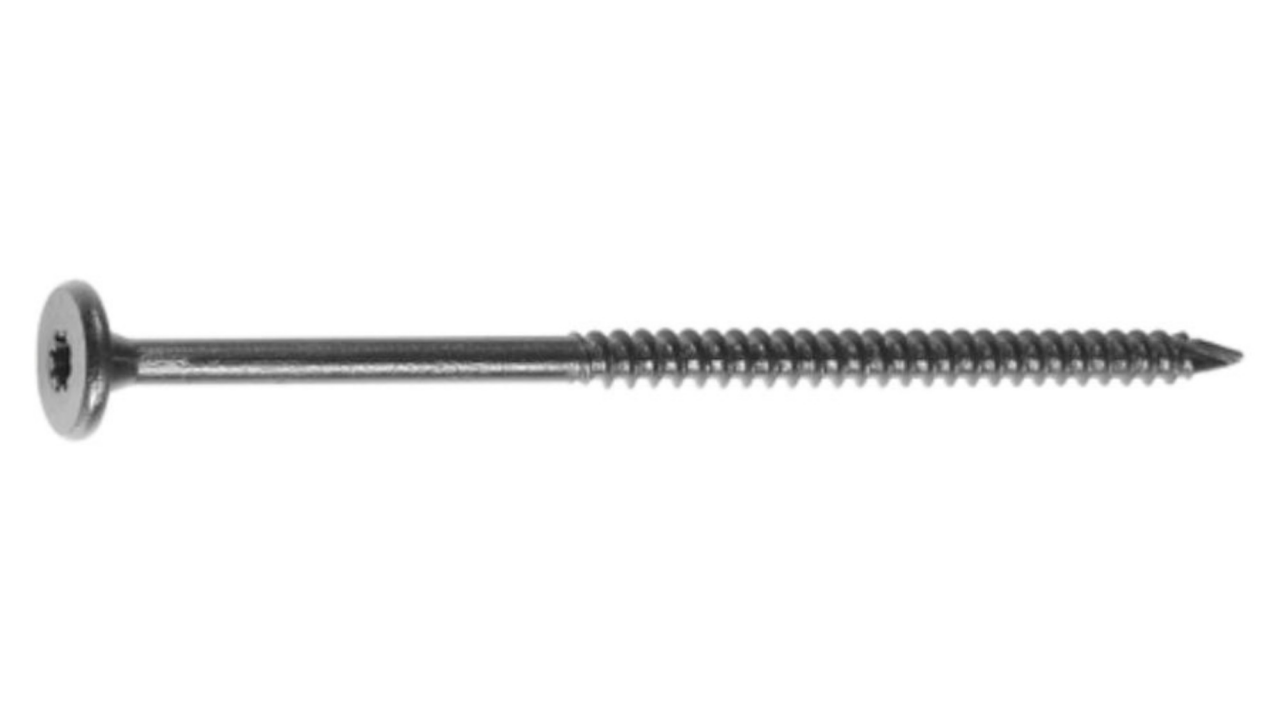

Nail-Lok™ SD is utilized with steel decks in several panel applications including Nailboard, Vented Nailboard, structural insulated panels (SIP), and prefabricated wall panels. The extra-large star/spider head increases pull-through resistance and eliminates the need for plates or washers.

Product Details

Nail-Lok SD

Product Long Description

Features

Nail-Lok SD

Features

Use: Nailboard and Vented Nailboard Fastener.

Material: 10B21 steel with a corrosion-resistant coating.

Shank: 0.190” diameter

Head: 0.625” diameter star/spider drive (free drive bits in each bucket).

Point: Spade

Color: Black

Deck Types: 18-24 gauge steel
Structural Concrete (Predrilling is required with a pilot at least ½” deeper than fastener embedment. Pilot hole size varies, perform a pull-test to determine proper drill bit size).
