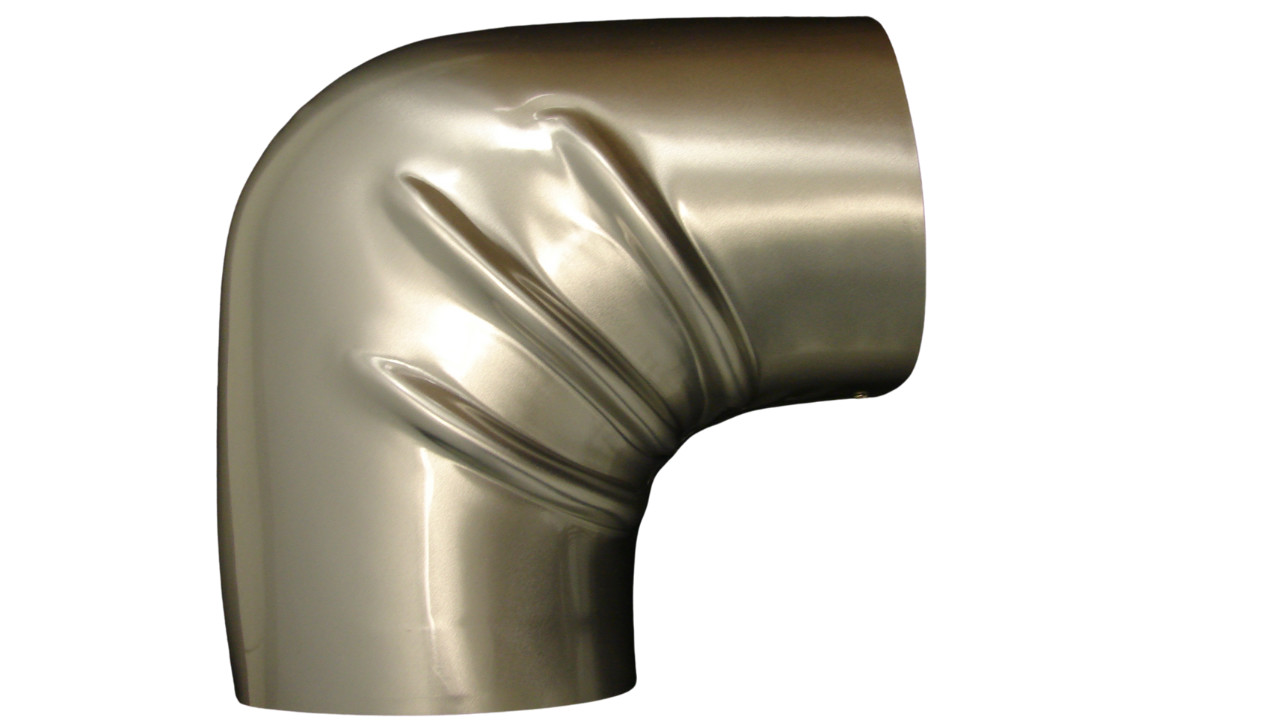

Multi-Fit Aluminum Elbow Covers

Multi-Fit Aluminum Elbow Covers

Product Short Description
Made in two precision formed matching halves to cover and weatherproof insulated 90° pipe elbows

Product Details

Multi-Fit Aluminum Elbow Covers

Product Long Description
Each Multi-Fit Aluminum Elbow Cover is designed to fit over 90° insulation elbows with a specific outer diameter, regardless of the pipe size, use of long or short radius pipe elbows, or insulation thickness. The thirteen sizes of JM Multi-Fit Aluminum Elbow Covers will fit 111 combinations of NPS and insulation thickness up to a nominal outer insulation diameter of 12.75 inches. Like our Aluminum Jacketing, Multi-Fit Aluminum Elbow Covers are a premier protective jacketing for insulation pipe systems and are a crucial accessory to complement the aluminum jacketing. They help protect the insulation and underlying pipe from physical damage, UV exposure, corrosive environments, and water. They can also reduce the time and labor needed to install a metal jacketing system.

Features

Multi-Fit Aluminum Elbow Covers

Features

Durable Aluminum Alloy - Made from 0.024" thick 1100 aluminum with a smooth mill finish, offering excellent corrosion resistance and mechanical strength.

Quick Installation - Precision-formed halves reduce labor time and ensure a consistent 5/8" overlap at heel and throat joints for a secure fit.

Universal Fit Design - Each cover fits 90° insulation elbows across a wide range of pipe sizes, insulation thicknesses, and radii, simplifying inventory and installation.

Integrated Moisture Barrier - Includes a Polyfilm Moisture Barrier (PFMB) to protect insulation from water intrusion and extend system life.
