AP Foil-Faced Foam Continuous Insulation

Product Name
AP Foil-Faced Foam Continuous Insulation
Product Descriptive Name
Polyisocyanurate Continuous Insulation
Product Short Description
Provides exceptional heat, moisture and air control and, when installed correctly, eliminates all major thermal bridges that cause heat loss.

Product Details

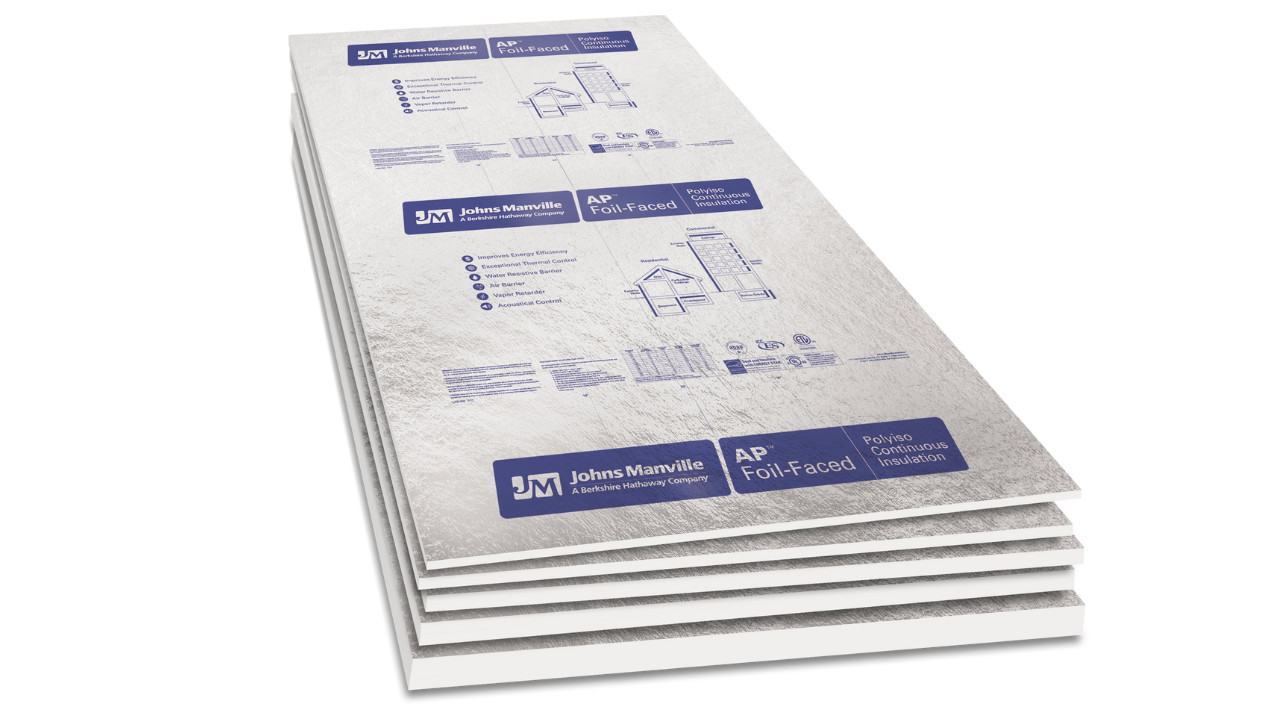

AP Foil-Faced Foam Continuous Insulation

Product Long Description
Johns Manville AP™ Foil-Faced Polyiso Continuous Insulation board consists of a uniform closed-cell polyisocyanurate foam core bonded on each side to a foil facer. One side has a reflective foil facer and the other side has a white non-reflective foil facer to suit your building needs. Polyiso provides one of the highest R-values per inch of any rigid insulation (R-6.0 at 1 inch). Furthermore, when properly installed, AP Foil-Faced Polyiso Continuous Insulation functions as a water-resistive barrier, vapor barrier and air barrier, eliminating the need to install additional components.  AP Foil-Faced Polyiso Continuous Insulation is produced with a hydrocarbon-based blowing agent that has zero Ozone Depletion Potential (ODP) and virtually no Global Warming Potential (GWP), thus meeting all EPA and state regulations addressing ozone depletion or global warming potential of blowing agents. Polyiso is one of North America’s most widely used insulation products.

Features

AP Foil-Faced Foam Continuous Insulation

Features

Thermally Efficient - Effective resistance to heat transfer, with R-values up to R-28.

Water-Resistive Barrier - Meets the ICC-ES AC71 acceptance criteria.

Vapor Barrier- Class I vapor retarder at one inch.

Air Barrier - Meets the Air Barrier Association of America boardstock criteria, when properly installed.

Lightweight - Easy to handle and may be cut with a utility knife or saw.

Documents

Sign up for Building Insulation news & events.

Videos

 NFPA 285 Approval of AP™ Foil for ACM Cladding

NFPA 285 Approval of AP™ Foil for ACM Cladding

 NFPA 285 Approval of AP™ Foil for ACM Cladding

NFPA 285 Approval of AP™ Foil for ACM Cladding

Building Envelope Solutions

Insulation products for walls, roofs and foundations that work seamlessly together for a complete system.

Resources

Explore our Building Insulation tools, education and training programs built specifically to aid you in your professional development.

Insulation Calculator
From attics to basements and kitchens to bedrooms, this insulation calculator tool will help you find the insulation that fits your needs.

Document Library
Discover, save and share the documents you need.

TechConnectSM
Whether you need compliance answers, consultations, spec recommendations, online trainings, technical product assistance or something else, we have a range of services and solutions to keep your job moving.

The Source: Building Insulation Resource Library
This is a resource built specifically to aid you in your professional development. Explore our webinars, compare specs, and follow our blog all right here at The Source.

SmartBinder Resource Library
Your resource for all JM documents in one place.

Where to Buy
Use our insulation locator tool to find JM products near you.

Spray Foam Certification Course

Johns Manville Corbond® Spray Foam applicator certification

Inflation Reduction Act
Beneficial tax credits for new homes and upgrades.

Title 24 Resource Page
For high performance attics and walls.

Cavity-SHIELD™ Resources
Multi-family, concealed-space, noncombustible fiberglass batts resources.

Continuous Insulation Solutions
Offering optimal performance and efficiency through and through.

Homeowner Insulation
Johns Manville makes insulating your home easy with high-quality products and installation guides.

Spray Foam Resource Page
complete line of spray polyurethane foam (SPF) insulation solutions provides superior thermal energy efficiency, as well as advanced air and sound control.



Insulating One of the Largest Residential Projects in Seattle
An insulation contractor overcomes challenging logistics to successfully complete one of the largest residential projects in Seattle’s history.

Solid Relationships Keep Projects Running Smoothly
Collaboration between insulation contractor, independent distributor and JM makes apartment complex project possible.

Sound Insulation Makes a ‘Noisy’ Business Quieter
Canadian music studio uses JM insulation as part of its solution for acoustic isolation.

Home Building Made Simpler
A Canadian builder relies on Johns Manville insulation for its Ready To Move homes business. Using reliable products like JM fiberglass helps make the building process seamless.

Squeaky Clean: Car Washes Turn to JM Insulation
A group of new car washes in the Las Vegas area needed excellent thermal insulation. Johns Manville polyiso and fiberglass batts fit the bill.

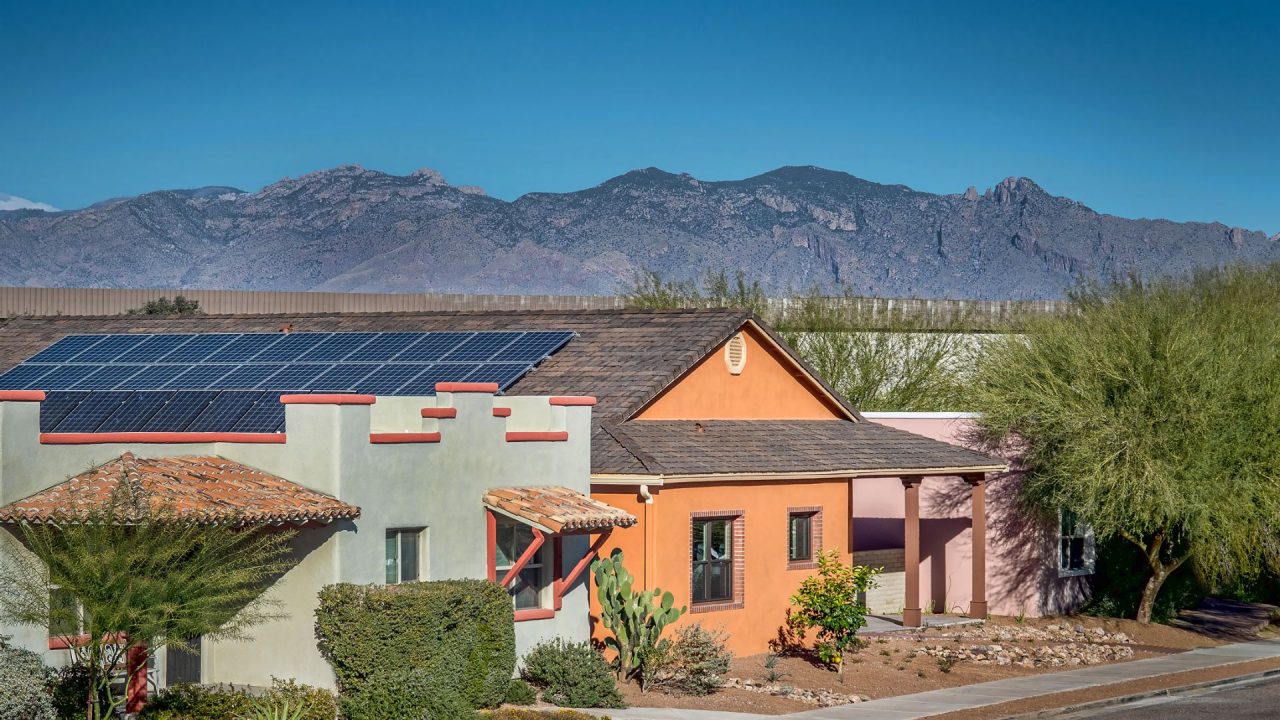

VISION House Tucson
