JM Vapor Barrier SAR

JM Vapor Barrier SAR

Product Descriptive Name
Fiber Glass-Reinforced, Polyethylene Surfaced, Self-Adhering SBS Vapor Barrier
Product Short Description

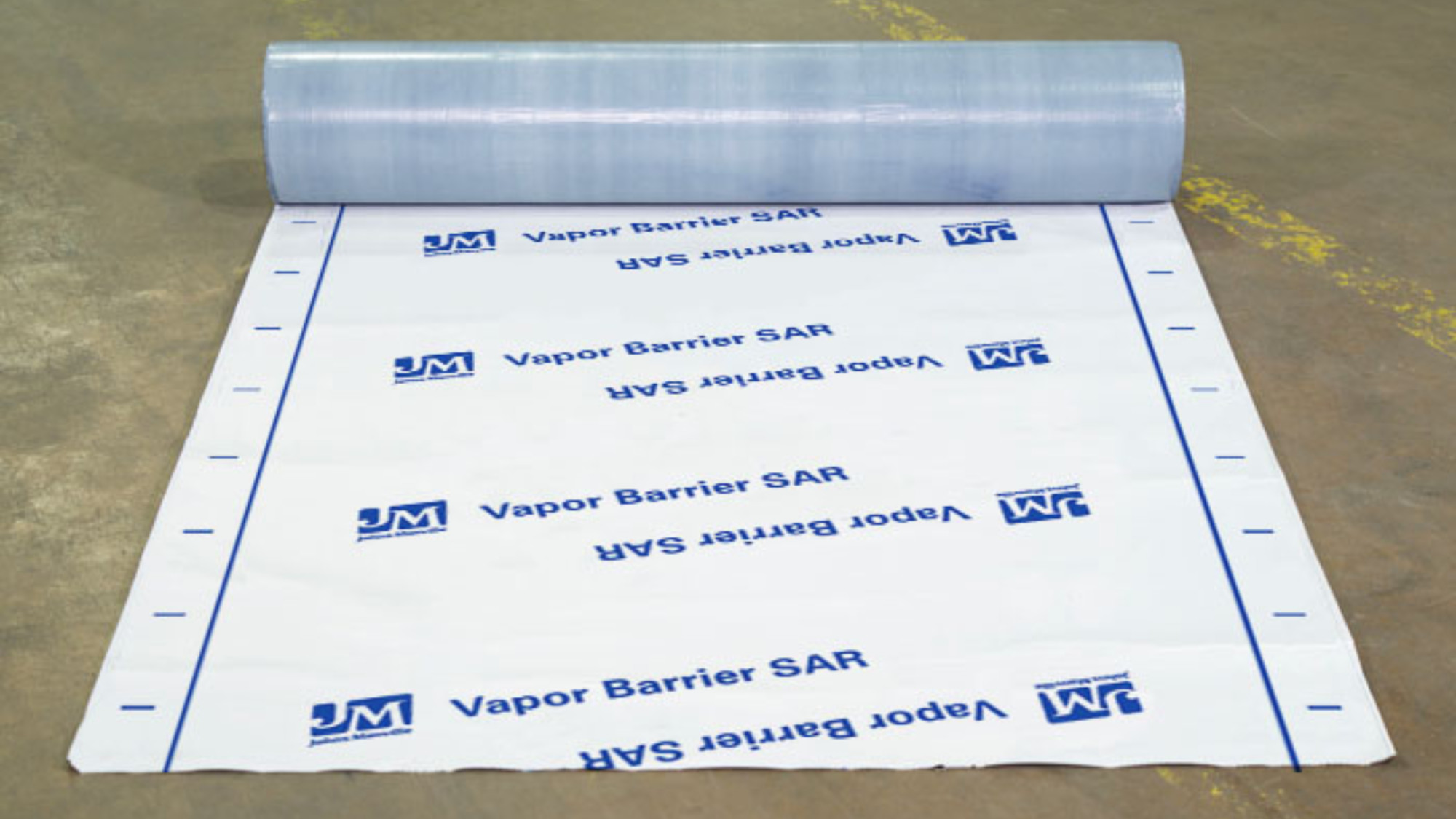

JM Vapor Barrier SAR is a self-adhered membrane with a fiber glass reinforcement and can be installed on plywood, gypsum or concrete board, concrete, asphalt or metal after the substrate has been primed.

Product Details

JM Vapor Barrier SAR

JM Vapor Barrier SAR has a tri-laminate woven polyethylene, nonslip, UV-protected top surface that provides temporary weather protection for 90 days and high tensile strength and puncture resistance. It is a self-adhering modified bitumen with a self-sealing, high-quality SBS rubber and asphalt blend that provides low air and vapor permeability. It's split-back silicone release film is easy-to-peel release film sheet that allows for ease of self-adhering installation.

Features

JM Vapor Barrier SAR

Tri-laminate woven polyethylene, nonslip, UV-protected top surface: Provides temporary weather protection for 90 days. Provides high tensile strength and puncture resistance.

Self-adhering modified bitumen: Self-sealing, high-quality SBS rubber and asphalt blend: provides low air and vapor permeability.

Split-back silicone release film: Easy-to-peel release film sheet that allows for ease of self-adhering installation.

Fiber glass reinforcement: Offers excellent dimensional stability and tensile strength and withstands differential movement. Because it has no thermal memory, less time is needed to relax the sheet, allowing for ease of installation. The fiber glass mat also has good lay-flat characteristics, contributing to better aesthetics.

Documents

Vapor Barrier Installation and Details

When it comes to design, we've got the tools to get you from the desk to the roof. Here you will find all of the Vapor Barrier flashing detalis and installation guides. If you have any questions when it comes to installation, please contact our Specifier Services Group for design and your local technical representative for the field.

VAPOR BARRIER SA DETAILSCADPDFBIM
VB-1 JM Vapor Barrier SA - Wall Base DetailDWGPDF-
VB-1 (ALT) JM Vapor Barrier SA - Wall Base Detail - Alt                                                DWGPDF-
VB-2 JM Vapor Barrier SA - Pipe Penetration DetailDWGPDF-
VB-3 JM Vapor Barrier SA - Drain DetailDWGPDF-
VB-4 JM Vapor Barrier SA - Detail at Field LapsDWGPDF-
VB-5 JM Vapor Barrier SA - Outside Curb DetailDWGPDF-
VB-6 JM Vapor Barrier SA - Inside Curb DetailDWGPDF-

VAPOR BARRIER SAR DETAILS                                                                                            CADPDFBIM
VB-1 JM Vapor Barrier SAR - Wall BaseDWGPDF-
VB-1 (ALT) JM Vapor Barrier SAR - Wall BaseDWGPDF-
VB-2 JM Vapor Barrier SAR - Pipe PenetrationDWGPDF-
VB-3 JM Vapor Barrier SAR - DrainDWGPDF-
VB-4 JM Vapor Barrier SAR - Field LapsDWGPDF-
VB-5 JM Vapor Barrier SAR - Outside CurbDWGPDF-
VB-6 JM Vapor Barrier SAR - Inside CurbDWGPDF-

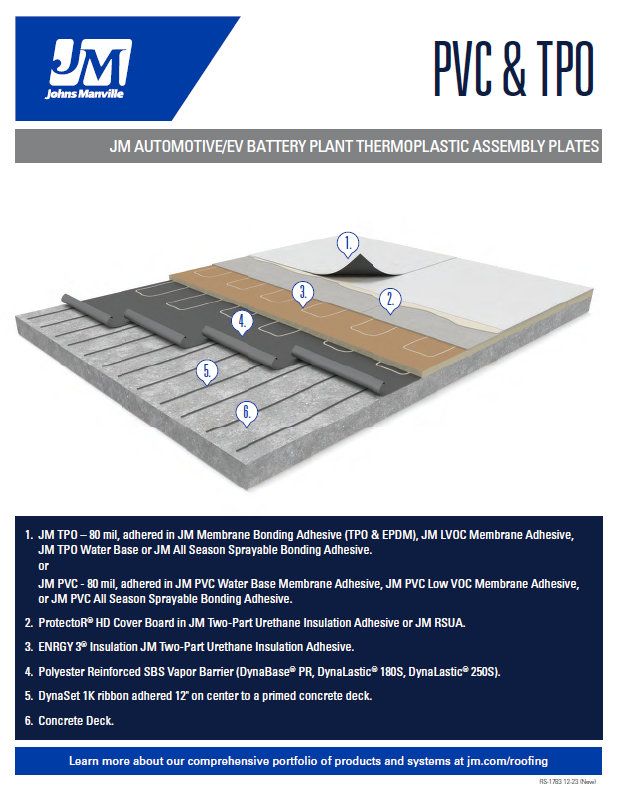

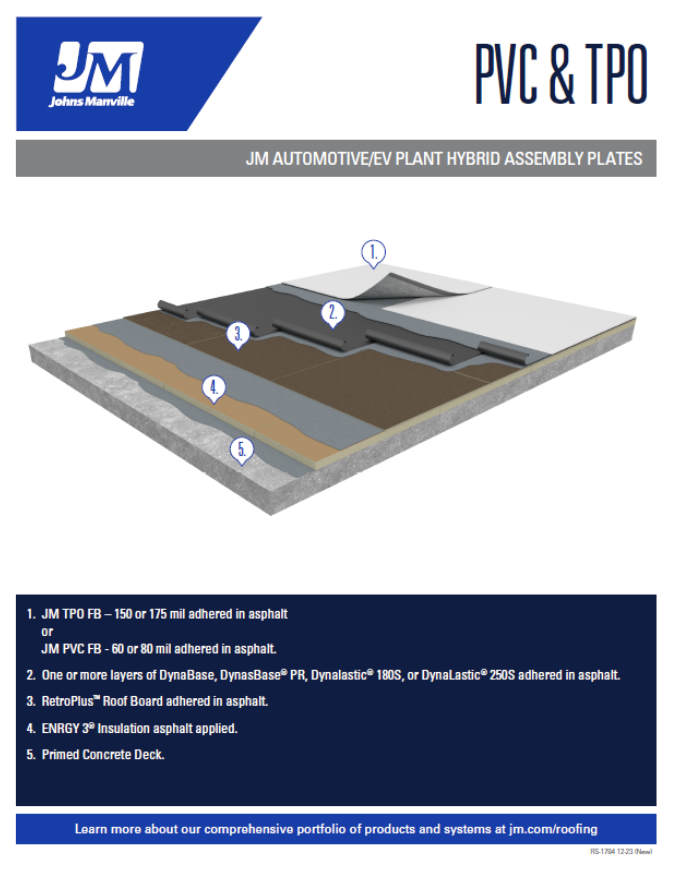

Low Slope Roofing for Automotive and EV Battery Plants

Having covered millions of square feet of roofing for all the major manufacturers, JM understands the complexities of automotive and EV battery manufacturing facilities. Plants requiring a more robust roofing assembly that protects from production chemicals tend to seek a PVC membrane solution, while others lean towards TPO. In the EV/Battery space, vapor barriers offer significant value in high-humidity environments.
