UltraFast AccuTrac Fastener and Plate System

UltraFast AccuTrac Fastener and Plate System

Product Descriptive Name
Automated Insulation Fastening System
Product Short Description

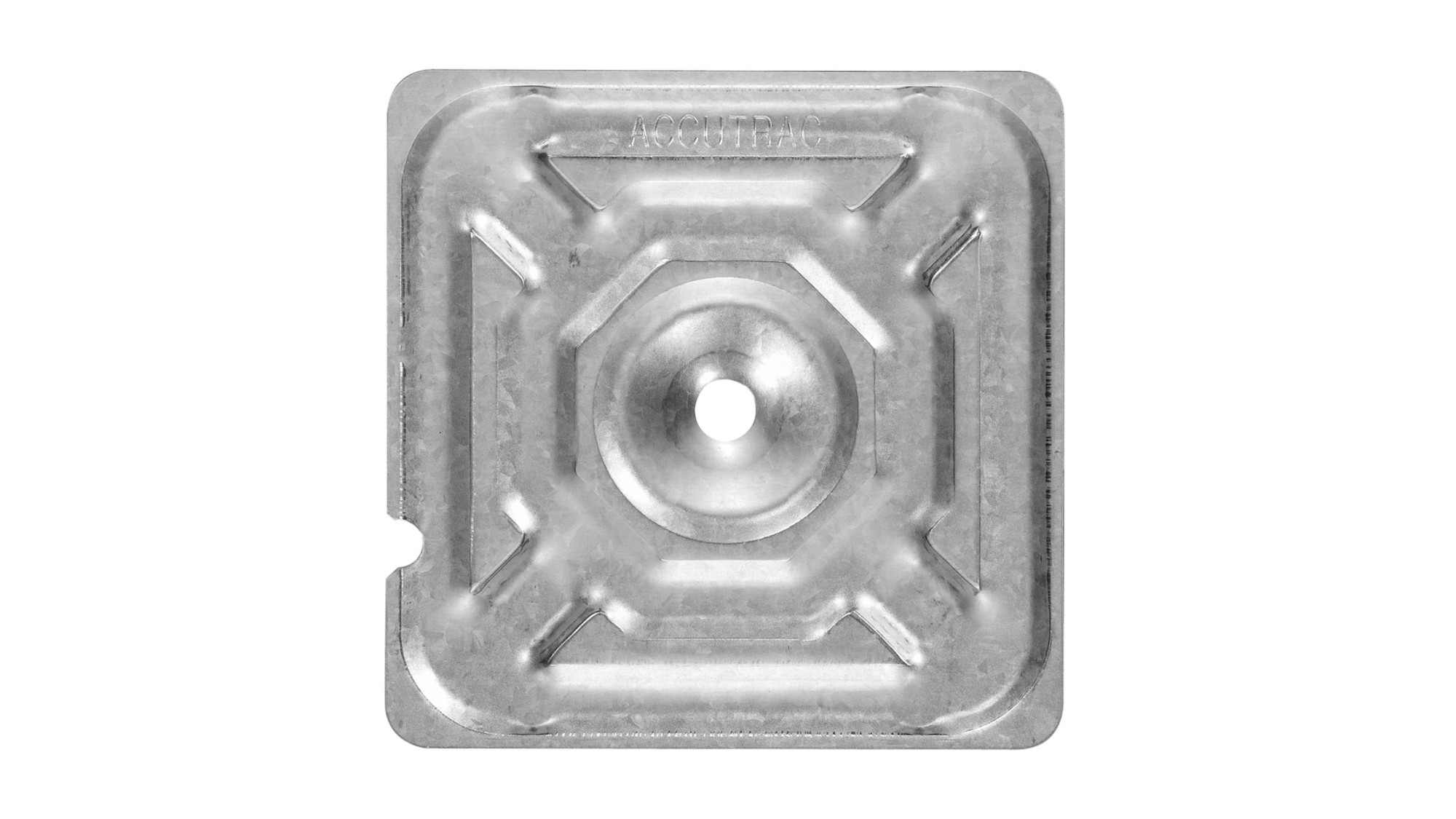

The UltraFast® AccuTrac™ Fastener and Plate System utilizes the standard UltraFast® Fastener and the UltraFast® Accutrac™, recessed or flat bottomed, square plate. The AccuTrac™ tool positions the plate and installs fasteners 15⁄8" - 6" (4.13 cm - 15.24 cm) in a one-step process. Consistent vertical alignment of fasteners ensures maximum thread engagement and pullout performance.

Product Details

UltraFast AccuTrac Fastener and Plate System

Product Long Description

Features

UltraFast AccuTrac Fastener and Plate System

Features

Use: Membranes

Material:

  • Fasteners - Case-Hardened Steel
  • Plates - Galvalume®*-Coated Steel

Gauge: #12

Head: #3 Phillips Head

Plate: UltraFast® AccuTrac™ - 3" (7.62 cm) Square**

Color: Blue (Fasteners), Grey (Plates)

Deck Type: Wood or 18 - 24 gauge (1.25 mm - 0.51 mm) Metal.

*Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers.

**Standard UltraFast Plates are not compatible with this system.
