JM PVC RhinoPlate

JM PVC RhinoPlate

Product Descriptive Name
Insulation and Membrane Fastening Plate
Product Short Description
JM PVC RhinoPlate is used to install PVC membranes using an induction weld system with JM High Load Fasteners.

Product Details

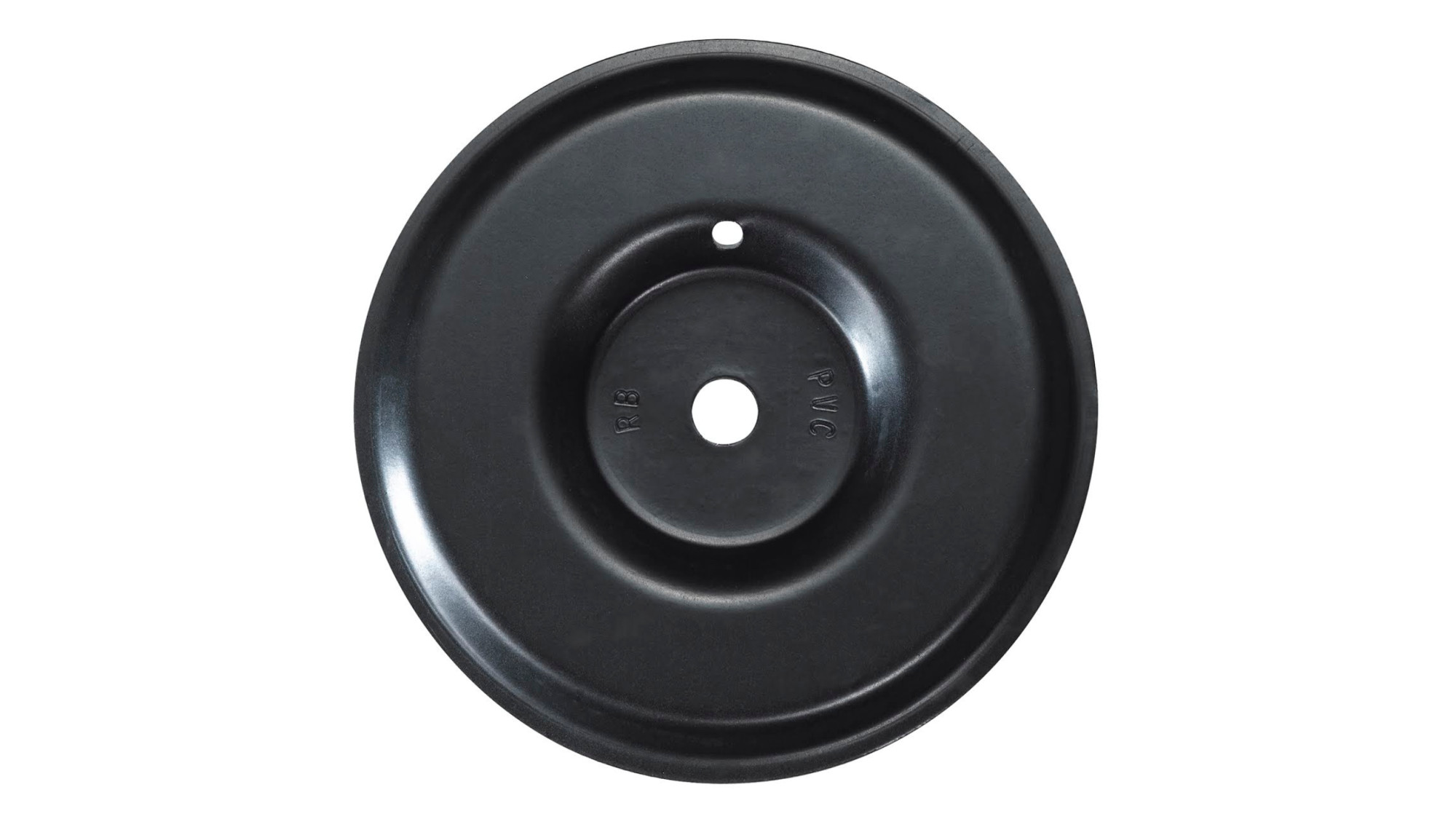

JM PVC RhinoPlate

Product Long Description


JM PVC RhinoPlate


Use: Insulation and PVC Membranes

Material: Specially Coated Galvalume

Plate: 3" (7.6 cm) round

Color: Black

Deck Type: Wood, Steel, Structural Concrete, or Structural Purlins

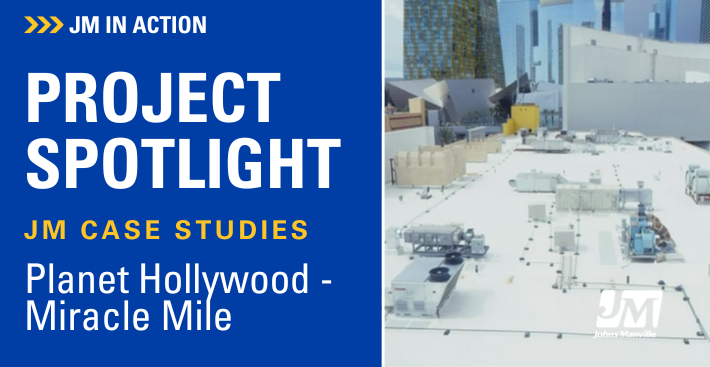

Planet Hollywood - PVC RhinoPlate

This massive 300,000 sf project over the Miracle Mile shops at Planet Hollywood was installed by Commercial Roofers, Inc.. The solution chosen was a Johns Manville PVC RhinoPlate System. This was a very unique project due to the vast amount of penetrations on the roof.

Vegas Miracle Mile Shops Re-Roofed Using Complete JM System

Prominently located on the famously busy Las Vegas Strip, the Miracle Mile Shops went through a major re-roofing. Commercial Roofers, Inc. (CRI), a long-time vendor for many prominent local businesses, tackled this highly technical, four-level, 300,000 square foot job with trusted partner Johns Manville. CRI and JM have partnered on close to 400 jobs since 2000. This five-month job, with a crew size ranging from 11 to 25 workers, was completed in November, 2023.
