High Load Fasteners and Plates

High Load Fasteners and Plates

Product Descriptive Name
Roof Membrane Fastener and Plate
Product Short Description

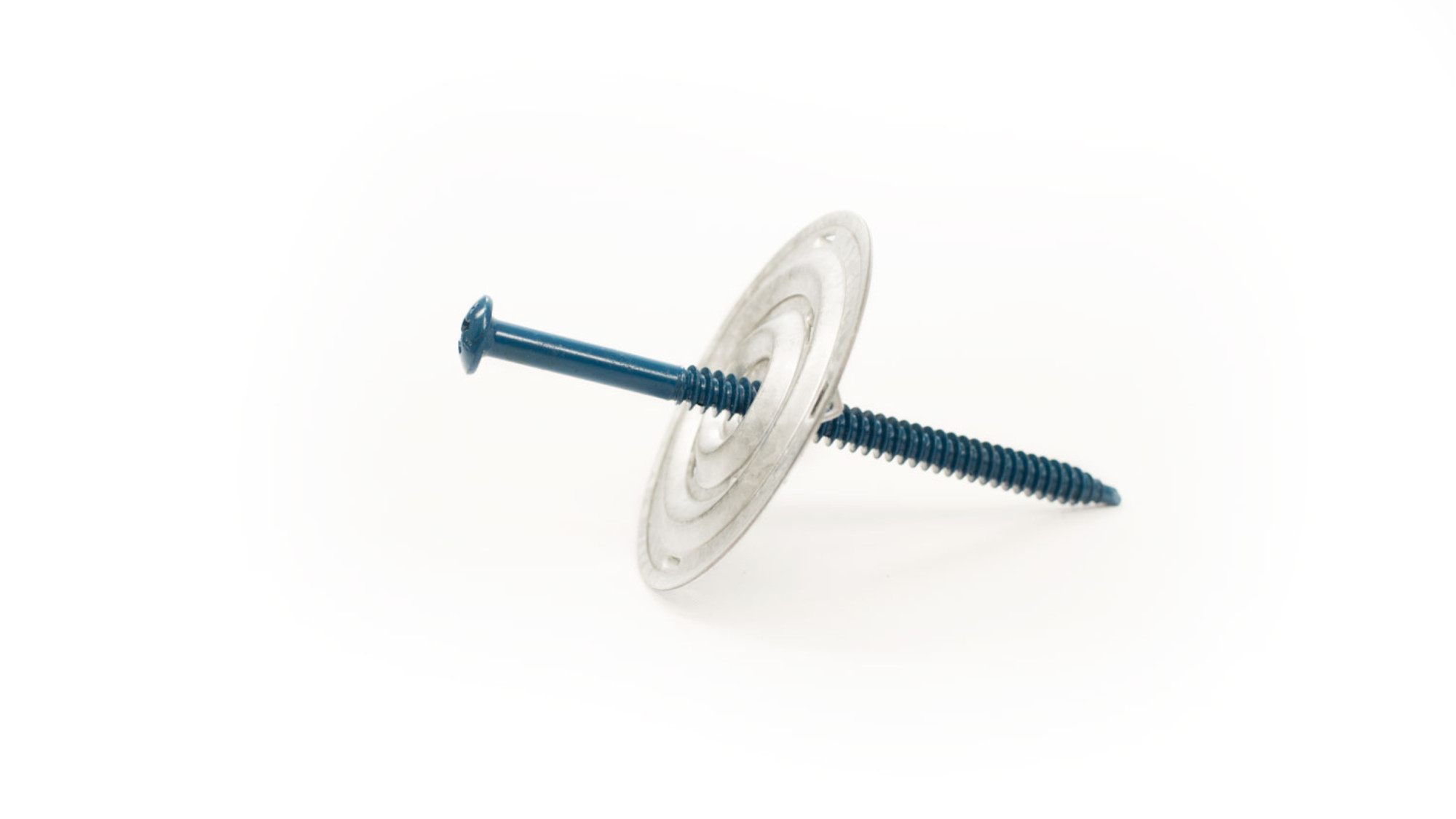

High Load Fasteners are a #15 case-hardened steel roof membrane fastener with Galvalume®*-coated steel seam plates. These fasteners can be used in a thermoplastic induction weld system with RhinoPlate®.

Product Details

High Load Fasteners and Plates

Product Long Description

Features

High Load Fasteners and Plates

Use: Membranes

Material: Carbon Steel

Gauge: #15

Head: #3 Phillips head

Colors:

  • High Load Fastener - Blue
  • High Load Fastener - White
  • High Load LH Fastener - Grey
  • Plate - Grey (Galvalume®-coated steel)

Deck Type: Wood or 18 - 24 gauge (1.25 mm - 0.56 mm) Steel

* Galvalume is a registered trademark of BIEC International, Inc. and some of its licensed producers.

Coating: CR-10 corrosion resistant factory applied coating passes the corrosion requirements of FM 4470 and ETAG 006
