Extra High Load Fasteners and Plates

Extra High Load Fasteners and Plates

Product Descriptive Name
Thermoplastic Membrane Fastener
Product Short Description
Extra High Load #21 fasteners, #3 Phillips head and a drill point contain a corrosion-resistant coating and to be used to mechanically attach thermoplastic membranes.

Product Details

Extra High Load Fasteners and Plates

Product Long Description


Extra High Load Fasteners and Plates

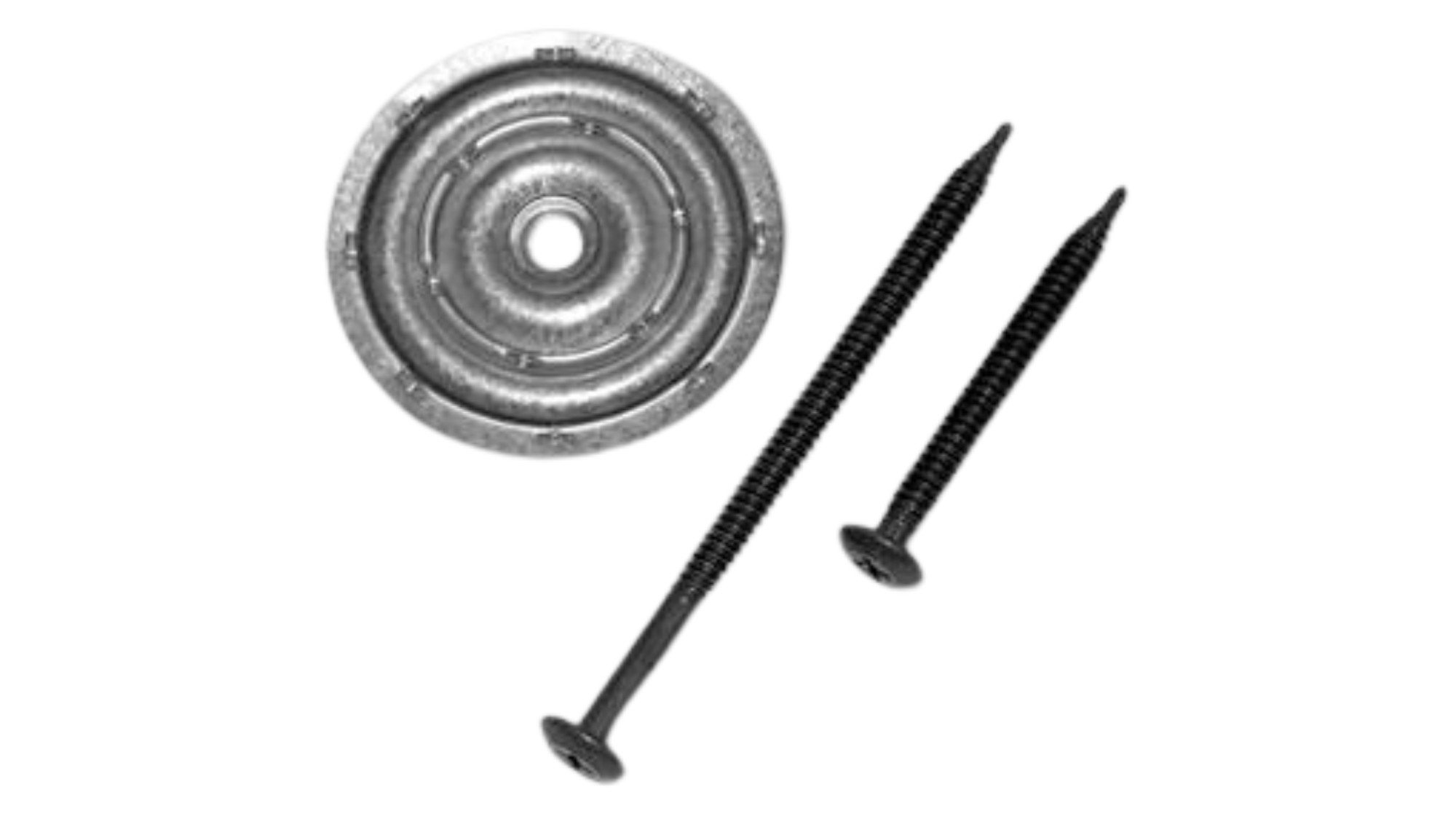

The Extra High Load Plate is a 3" (7.62 cm) diameter, Galvalume®*- coated steel plate with eye hooks. The Extra High Load Plate incorporates an oversized diameter hole to accommodate the larger wire size of the Extra High Load Fastener.

Use: Thermoplastic Membranes

Material:  Extra High Load Fastener - Case-hardened steel  Extra High Load Plate - Galvalume-Coated Steel

Gauge: #21

Head: #3 Phillips head

Plate: 3" (7.6 cm) round

Color: Black (fasteners), Grey (plates)

Deck Types: Wood or 18 - 24 gauge (1.25 mm - 0.56 mm) Metal.
