GoBoard Tile Backer Accessories

GoBoard® tile backer board by Johns Manville helps you complete your tile installation project by offering system accessories that when installed as a system, can qualify for a limited warranty. Because GoBoard is designed for simplicity and engineered for speed, you will spend less time doing the prep work and Pros and DIYers can complete the project faster.

GoBoard Fasteners are the preferred fastening mechanism for any GoBoard tile backer board application for both wood and metal stud framing.

GoBoard® Fasteners are tile backer board fasteners designed for securing GoBoard to wood or metal studs, as well as subfloors. These corrosion-resistant fasteners have larger diameter heads for more holding power and the smooth underside of the head helps mitigate over-driving the screw. GoBoard Fasteners are available in contractor packs of 700 pieces and come with the required T-25 Torx head bit. Using GoBoard Washers is optional with these tile backer board fasteners, depending on your application.

  • Wood and metals studs
  • Corrosion-resistant
  • T-25 Torx bit included
  • Easy installation

GoBoard tile backer board fasteners are for use on:

  • 1/4″ GoBoard for floors and countertops
  • 1/2″ and 5/8″ GoBoard for walls, showers, ceilings, and floors

Product Fragment Icons- fasteners700x467

Reference the ICC ES Evaluation Report (Tables 1 through 4) for fastening schedules.

GoBoard-Wood-Stud-Fastener-Technical-Data-1024x683
GoBoard-Metal-Stud-Fastener-Technical-Data-1024x683

Technical Guides
GoBoard Fasteners Technical Data
GoBoard Fasteners Technical Data (ES)
GoBoard Fasteners Technical Data (FR)

Warranty Information
10 Year Limited Warranty for GoBoard

GoBoard® Tile Backer Board Fasteners VS Cement Backer Board Screws

GoBoard® Tile Backer Board Fasteners VS Cement Backer Board Screws

GoBoard® Tile Backer Board Fasteners VS Cement Backer Board Screws

GoBoard® Tile Backer Board Fasteners VS Cement Backer Board Screws

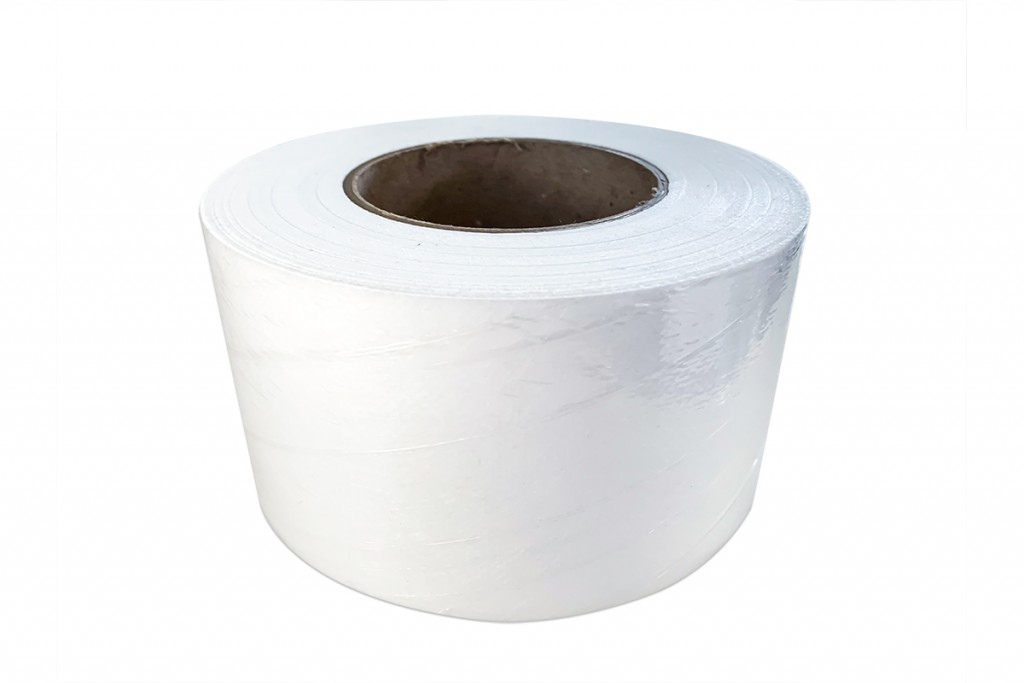

GoBoard Seam Fabric is a lightweight, point-bonded polyester non-woven that is specifically designed to enhance the performance of all GoBoard products. When used with GoBoard, it increases tensile strength at the joints and provides superior adhesion between GoBoard Pro Sealant and thin-set mortars ...

GoBoard® Seam Fabric is a lightweight, point bonded non-woven that is specifically designed to enhance the performance of all GoBoard products. When used with GoBoard Tile Backer Board and GoBoard Wedge, installers can expect increased tensile strength at the joints and in the change of planes. Get to tile faster using GoBoard Seam fabric due to superior adhesion between GoBoard Pro Sealant and thin-set mortars. And best of all, there’s no need to wait for the sealant to skin over.

  • Alkali resistant
  • Improved shear bond strength (30%+)
  • Increased Joint strength (50%+)
  • Shortens the time to tile

GoBoard Seam fabric is available in the following dimensions and size:

  • 3″ x 100 yards

GoBoard-Seam-Fabric-6-1024x683
Seam-Fabric-Technical-Data-974x1024

Approved Materials

Joint Sealing
GoBoard Pro Sealant.

Grout
Cement grout compliant with ANSI A118.16 standard, high-performance cement grout compliant with ANSI A118.7 standard, or epoxy grout compliant with ANSI A118.8 standard.

Tools

  • utility knife
  • pencil, or pen for marking
  • measuring tape
  • putty knife
  • 1/4″ square notched trowel
  • caulk gun

Safety
Wearing a respirator is recommended when working with GoBoard Pro Sealant in areas that are not well ventilated. Please wear gloves, safety glasses, long sleeve shirts, and long pants and follow good safety practices when installing GoBoard. Temporary mechanical abrasion (itching) of skin, eyes, and respiratory tract may occur upon exposure to fibers or dust during handling. GoBoard contains no cement.

Storage and Handling
GoBoard can be stored indefinitely in an enclosed shelter.

Limitations
When waterproof installations are required, all joints and fastener locations are sealed with GoBoard Pro Sealant or a sealant specified in the approved materials section. All joints must have at least 1/8″ gap filled with the sealant that also extends at least 1″ beyond either side of the joint.

Steam showers – install a manufacturer-approved vapor barrier directly to the wall studs and ceiling framing behind GoBoard per manufacturer’s instructions. Or install a manufacturer-approved vapor barrier or waterproof membrane over the external surface of GoBoard per manufacturer’s instructions.



Technical Guide
GoBoard Seam Fabric Technical Data

Warranty Information
10 Year Limited Warranty for GoBoard

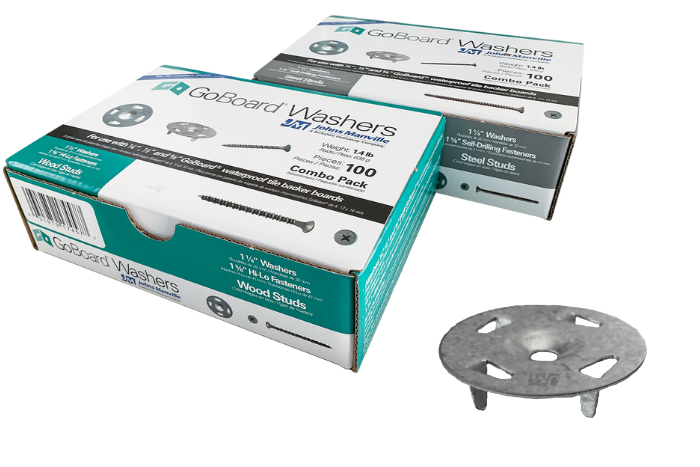

GoBoard Washers can be used in all GoBoard tile backer board applications for maximum holding strength. Take advantage of increased allowable spacing when used in combination with GoBoard Fasteners, or fortify your installation for heavier or larger format tile.

GoBoard® Washers are hardened steel washers that provide maximum holding strength when fastening tile backer board to stud framing. Each washer has tabs for pre-positioning prior to driving the fasteners. These reverse tabs also prevent the washers from stacking while packaged – making them easy to separate. When using GoBoard Washers in your installation, the fastener spacing increases to 12 inches.

  • Wood and metal studs
  • 12-inch spacing
  • Corrosion-resistant
  • East installation

GoBoard Fastener/Washer combo packs come with 100 pieces each and are for use on:

  • 1/4″ for floors and countertops
  • 1/2″ and 5/8″ for walls, showers, ceilings, and floors

Product Fragment Icons- Washers
GoBoard-Washer-1024x682
GoBoard-Fasteners-Washers-Combo-Packs
GoBoard-Washer-1-1024x683

Approved Materials

Fastening on Wood studs

  • GoBoard Hi-Lo Fasteners (1 5/8″ long)
  • GoBoard Washers

Fastening on Metal studs

  •  GoBoard Self-drilling Fasteners (1 5/8″ long)
  • GoBoard Washers

Required Tools

  • #2 Phillips head bit
  • drill

Safety
Please wear gloves, safety glasses, long sleeve shirts, and long pants and follow good safety practices when installing GoBoard.

Storage and Handling
GoBoard Washers and Fasteners can be stored indefinitely.

GoBoard-Washer-1-1024x683
GoBoard-Combo-Wood-Fasteners-1024x683
GoBoard-Combo-Metal-Fasteners-1024x683

Technical Guides
GoBoard Washers Technical Data
GoBoard Washers Technical Data (ES)
GoBoard Washers Technical Data (FR)

Warranty Information
10 Year Limited Warranty for GoBoard

Reference the ICC ES Evaluation Report (Tables 1 through 4) for fastening schedules.

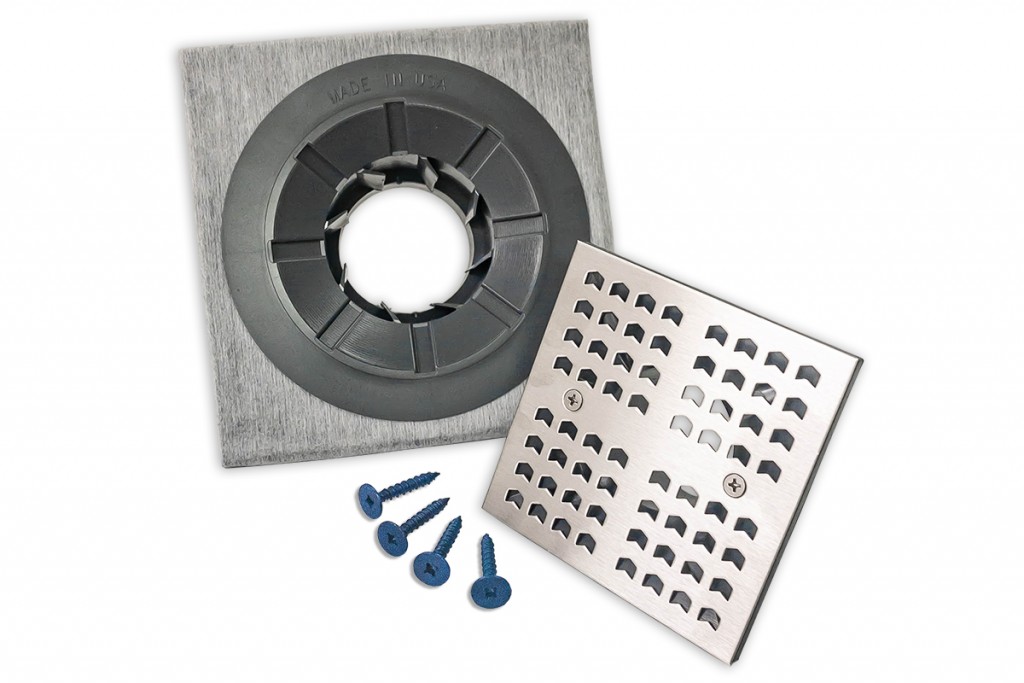

GoBoard Point Drain is fully assembled with an integrated waterproofing membrane and is specifically designed to pair with the GoBoard Shower Pan Kit. The low profile design minimizes curb height and enables curbless installations..

GoBoard® Point Drain Kit includes a universal drain body and friction fit universal drain cover riser, and is designed for use with the GoBoard Shower System. The drain body is compatible with numerous brands of both threaded and non-threaded drain cover risers, making the possibilities endless. When used with the GoBoard Wedge, the low profile design of this drain enables curbless installations and also allows for height adjustment based on the thickness of the shower pan tile.

  • Low profile
  • Adjustable riser height
  • Integrated waterproofing membrane
  • Waterproof built-in

The GoBoard Point drain complies to IAPMO PS 106, Tileable Shower Receptors and Shower Kits, and ASME A112.18.2/CSA B125.2.

GoBoard Point Drain Kit includes:

  • Drain cover
  • Drain cover screws
  • Drain riser
  • PVC drain body assembly
  • Clamping collar screws
  • Mixing valve seal
  • Waterproof pipe seal
  • 2″ plastic putty knife

*GoBoard Point Drain Kit is only sold as a component of the GoBoard Shower Pan Kit

GoBoard-Point-Drain-1024x683
GoBoard-Point-Drain-Body-Assembly-1024x693
GoBoard-Point-Drain-Riser-and-Cover-Assembly-1024x693
GoBoard-Point-Drain-Plumbing-Seals-1024x693
GoBoard-Point-Drain-Kit-1024x683

Approved Materials

Joint Sealing
GoBoard Pro Sealant (or approved alternative), or 2″ wide polymer-coated alkali-resistant fiberglass mesh tape and mortar, coated with a liquid waterproofing membrane.

Grout
Cement grout compliant with ANSI A118.16 standard, high-performance cement grout compliant with ANSI A118.7 standard, or epoxy grout compliant with ANSI A118.8 standard.

Tools

  • pencil, or pen for marking
  • straight edge
  • measuring tape
  • putty knife
  • appropriate screw fastening device
  • caulk gun

Limitations
When waterproof installations are required, all joints and fastener locations are sealed with GoBoard Pro Sealant or a sealant specified in the approved materials section. All joints must have at least 1/8″ gap filled with the sealant that also extends at least 1″ beyond either side of the joint

Safety
Wearing a respirator is recommended when working with GoBoard Pro Sealant in areas that are not well ventilated.  Please wear gloves, safety glasses, long sleeve shirts, and long pants and follow good safety practices when installing GoBoard. Temporary mechanical abrasion (itching) of skin, eyes, and respiratory tract may occur upon exposure to fibers or dust during handling.

Storage and Handling
GoBoard Point Drain Kit can be stored indefinitely in an enclosed shelter.

GoBoard-Point-Drain-Technical-Data-1024x528

Installation Instructions
GoBoard Point Drain Shower Pan Kit Installation Instructions
GoBoard Point Drain Shower Pan Kit Installation Instructions (ES)
GoBoard Point Drain Shower Pan Kit Installation Instructions (FR)

GoBoard Point Drain Cut Sheet
GoBoard Point Drain Installation Guide for Cement Slab

Warranty Information
10 Year Limited Warranty for GoBoard

Technical Data
GoBoard Point Drain Shower Pan Kit Technical Data
GoBoard Point Drain Shower Pan Kit Technical Data (ES)
GoBoard Point Drain Shower Pan Kit Technical Data (FR)

GoBoard® Shower Build

GoBoard® Shower Build video

GoBoard® Shower Build

GoBoard® Shower Build video

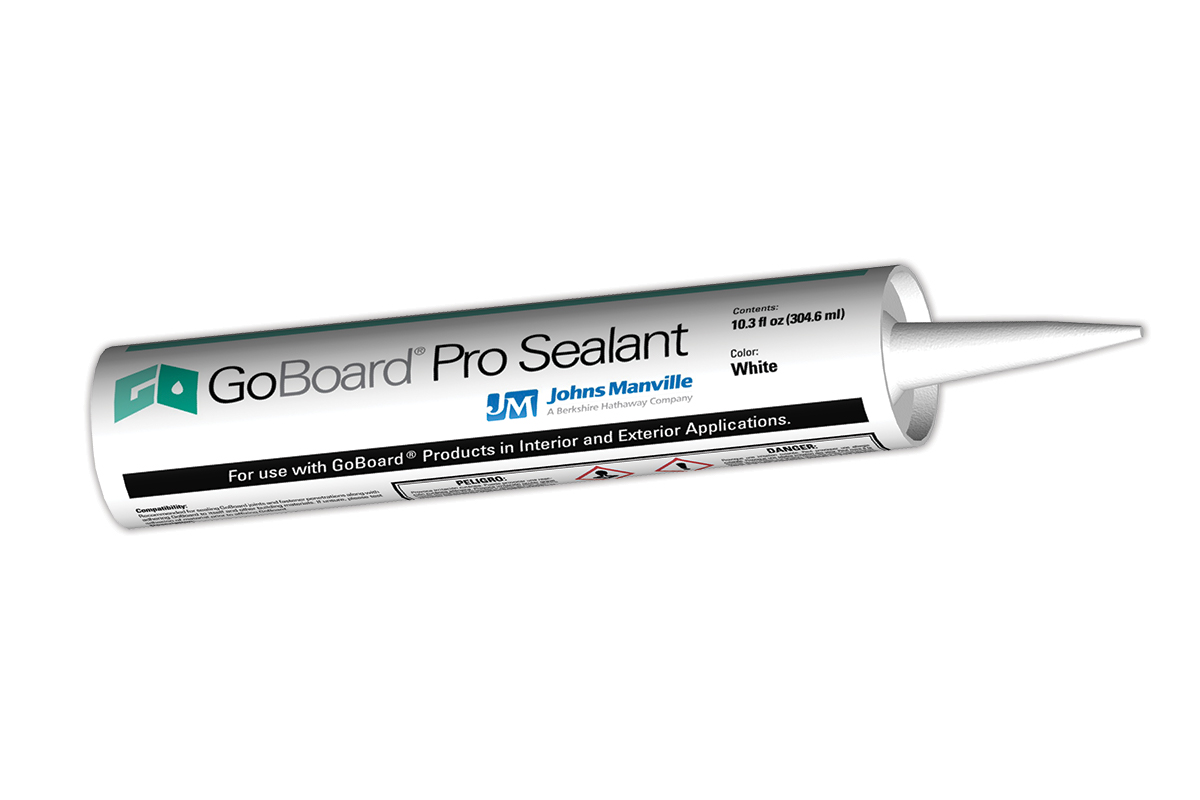

GoBoard Pro Sealant is a one-component, moisture curing, permanently elastic silyl-terminated polyether hybrid sealant and adhesive that provides tenacious adhesion to GoBoard and other common building materials. Use GoBoard Pro Sealant to waterproof GoBoard tile backer board joints and fastener ...

GoBoard® Pro Sealant is a moisture curing sealant that provides tenacious adhesion to GoBoard and other common building materials. Use GoBoard Pro Sealant to waterproof GoBoard joints and fastener penetrations and adhere GoBoard to itself and other building materials. Because it contains no solvents or isocyanates, GoBoard Pro Sealant is environmentally friendly, non-toxic, and exhibits minimal odor.

  • Moisture curing
  • Formulated for allowable joint movement
  • Long term weather resistance
  • Non-yellowing
  • Non-corrosive
  • VOC Compliant

Compliant with the Standard Specification for Elastomeric Joint Sealants (ASTM C290, Type S, Grade NS, Class 25 or better) and available in the following sizes:

  • Tubes 10.3 fl oz  (304.6 ml)
  • Sausage Packs 20 fl oz (591.5 ml)
GoBoard-Pro-Sealant-Cartridge
GoBoard-Pro-Sealant-Technical-Data-995x1024

Technical Guides
GoBoard Approved Alternative Sealant List
GoBoard Pro Sealant Technical Data
GoBoard Pro Sealant Technical Data (ES)
GoBoard Pro Sealant Technical Data (FR)

Warranty Information
10 Year Limited Warranty for GoBoard

Safety Data Sheet
Safe Use Instructions: GoBoard Pro Sealant
